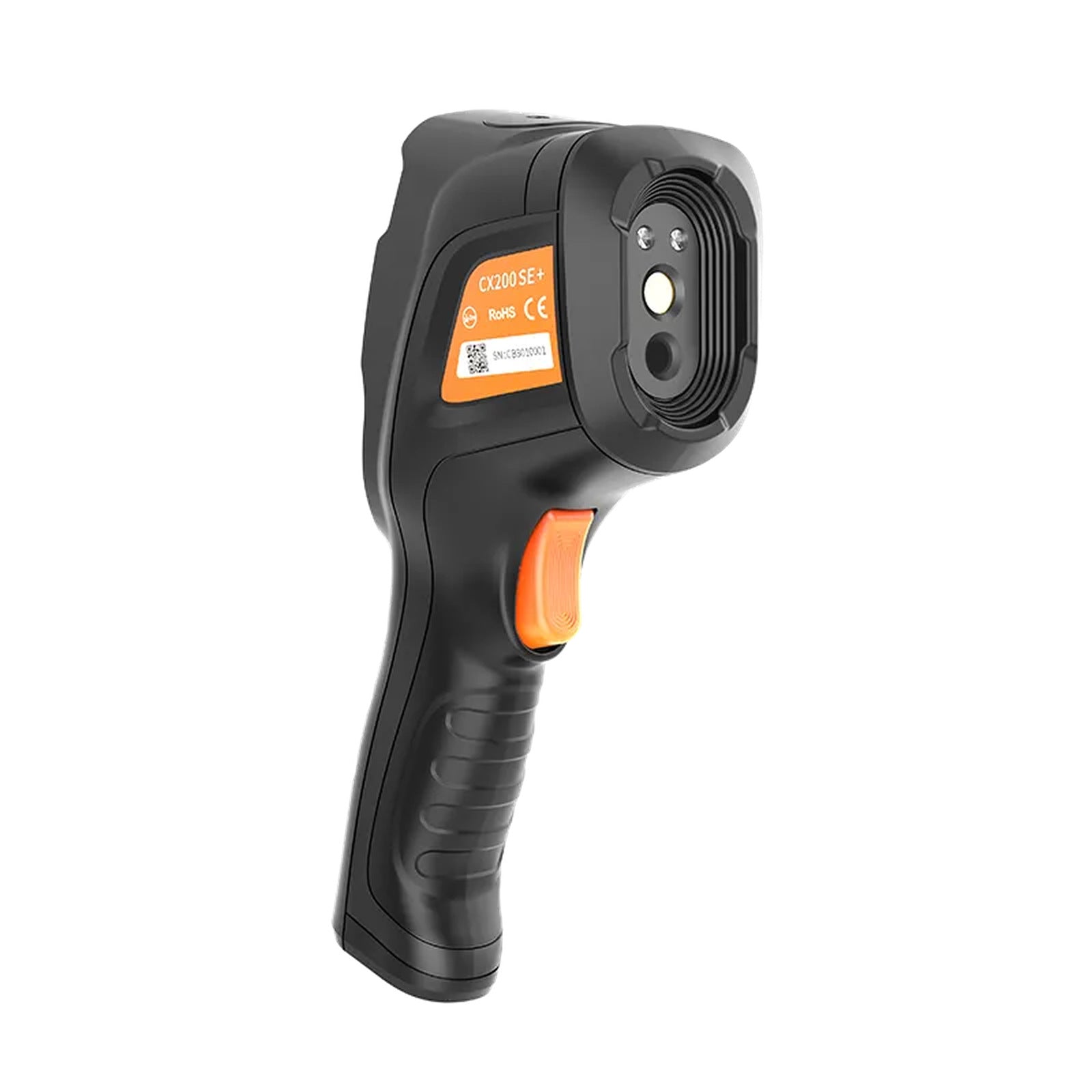

CX200 SE+
Discuss the target, working distance and temperature range to narrow down the camera and lens configuration.
Product brand: RaythinkQuotations & order support: Phoebus Link
Request a quote ↗Confirm the exact model, configuration and supply terms in the quotation.
- Infrared resolution
- 256×192
- Spectral band
- 7.5-14μm
- Thermal sensitivity (NETD)
- <40mK (25°C,F1.0)
- Frame rate
- 25 Hz
Manufacturer documents
Original manufacturer documents retain their source language. Check the full model and document version.
Open technical PDF · CX200 SE+ ↗Manufacturer reference · Original language
| Detector Type | Uncooled infrared detector |
|---|---|
| Infrared Resolution | 256×192 |
| Spectral Band | 7.5-14μm |
| NETD | ＜40mK (25°C,F1.0) |
| Frame Rate | 25 Hz |
| Lens Focal Length | 3.2mm |
| FOV | 56°×42° |
| Focusing Mode | Fixed focus |
| Measurement Range | -20°C ~ +150°C, 100°C ~ +550°C |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater |
| Display | 2.8 inch, 320×240 |
| Image Mode | Infrared |
| Operating Temperature | -10°C~+50°C |
| Ingress Protection Rating | IP54 |
| Weight and Dimensions | About 520g, 237×75×92mm |
Share your application and required configuration with Phoebus Link.
Reference values. Confirm the supplied configuration against the matching manufacturer document.
