Raythink / Handheld thermal cameras

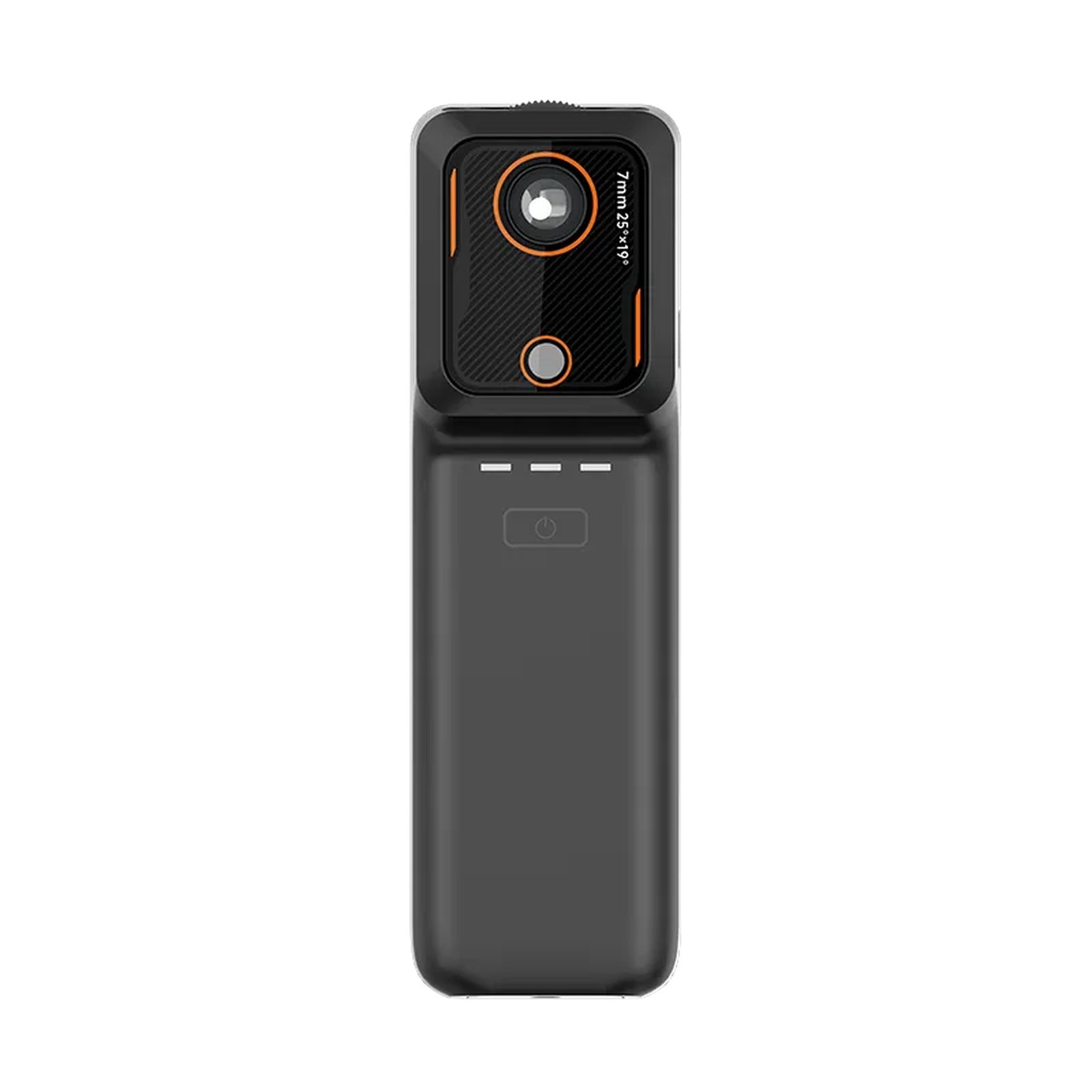

IX2 AIR Pro
Discuss the target, working distance and temperature range to narrow down the camera and lens configuration.
Product brand: RaythinkQuotations & order support: Phoebus Link
Request a quote ↗Confirm the exact model, configuration and supply terms in the quotation.
- Infrared resolution
- 256×192
- Spectral band
- 7.5-14μm
- Thermal sensitivity (NETD)
- 40mK
- Frame rate
- 25 Hz
Manufacturer documents
Original manufacturer documents retain their source language. Check the full model and document version.
Open technical PDF · IX2 AIR Pro ↗Manufacturer reference · Original language
| Detector Type | Uncooled infrared detector |
|---|---|
| Infrared Resolution | 256×192 |
| Spectral Band | 7.5-14μm |
| NETD | 40mK |
| Frame Rate | 25 Hz |
| Lens Focal Length | 7mm |
| FOV | 25°×19° |
| Focusing Mode | Manual focusing |
| Measurement Range | -20°C ~ +550°C |
| Measurement Accuracy | ±2ºC or ±2% of readings, whichever is greater |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion |
| Storage Medium | lmages stored in the APP by default and downloadable to a local album |
| Operating Temperature | -10°C~+50°C |
| Ingress Protection Rating | IP54 |
| Weight and Dimensions | About 142g,136.2x41x29.3mm |
Share your application and required configuration with Phoebus Link.
Reference values. Confirm the supplied configuration against the matching manufacturer document.
Request a quote ↗
