Manufacturer product imagery. Supplied optics, interfaces and accessories depend on the selected configuration.
Dual-spectrum PTZ monitoring

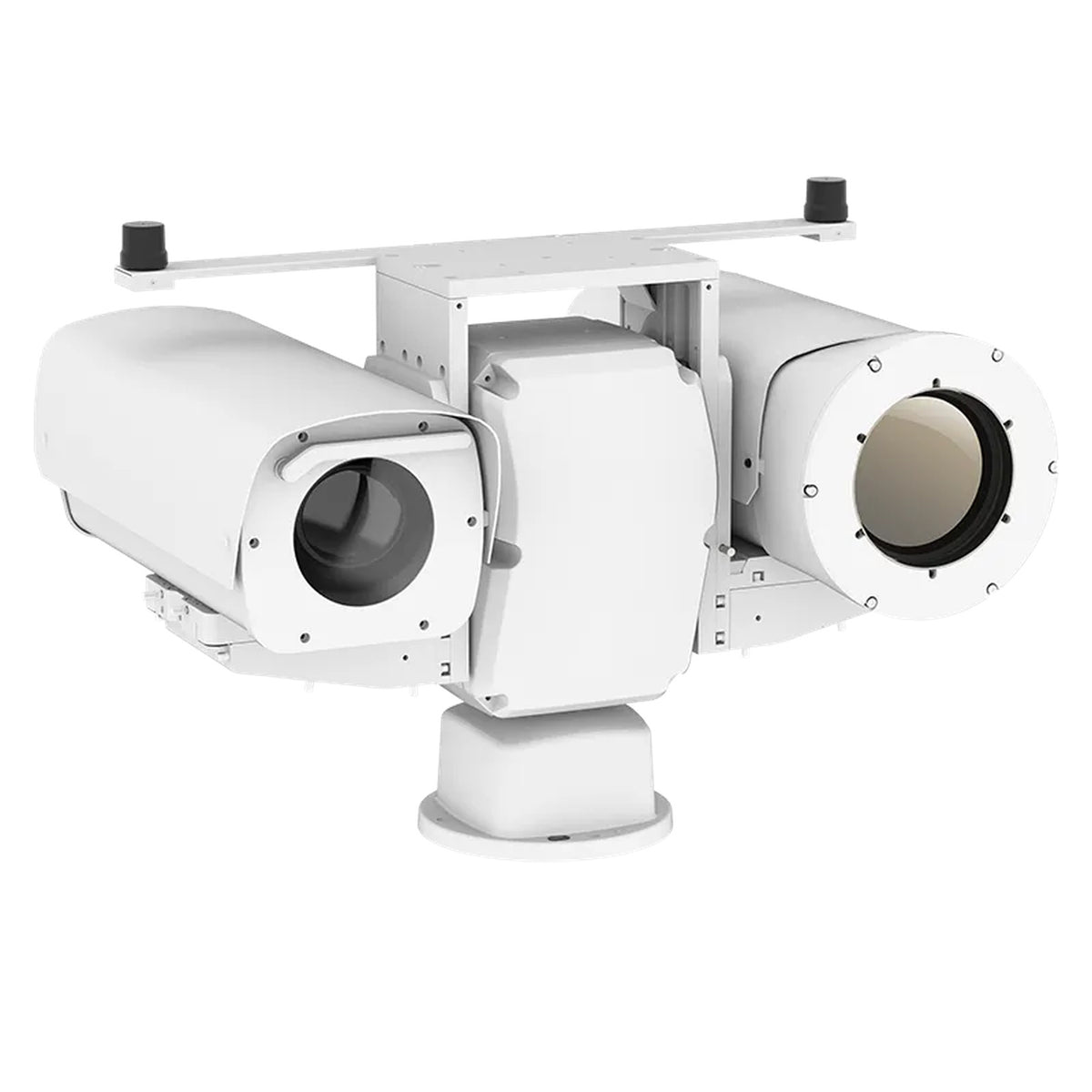

PC664A1 Dual-Spectrum PTZ Camera
PC664A1 provides thermal and visible site observation on a PTZ platform for perimeter and fire monitoring.
- Detector Type
- Uncooled VOx infrared detector
- Pixel Pitch
- 12μm
- NETD
- ≤40mK(@25°C, F#1.0, 25 Hz)
Raythink equipment · Selection and procurement through Phoebus Link.
For distributors and business buyers. Configuration, pricing and delivery are confirmed in a written quotation.
WHAT THIS MODEL DOES
Configurable PTZ observation for larger sites
Thermal and visible verification
Use complementary channels to assess the monitored scene.
Model-specific detector choice
Confirm the detector technology, resolution and lens for the exact PC6 variant.
SEE THE EQUIPMENT
Product demonstrations
Manufacturer footage. Demonstrated options and accessories must be confirmed for the selected configuration. Original audio and embedded captions are retained.
TECHNICAL REFERENCE
PC664A1 specifications
Manufacturer reference specifications. Options and supplied configuration are identified in your quotation.
| Detector Type | Uncooled VOx infrared detector |
|---|---|
| NETD | ≤40mK(@25°C, F#1.0, 25 Hz) |
| Pixel Pitch | 12μm |
| Spectral Range | 8~14μm |
| Network | One RJ45 10 M/100 M adaptive Ethernet port |
|---|
| Power Consumption | Max.270W |
|---|---|
| Weight | 80kg |
| Power | DC 48V±15% |
| Storage | Micro SD card (up to 1 TB) |
TECHNICAL DOCUMENTS
Downloads & selection resources
PLAN THE CONFIGURATION
Specify PC664A1 for your project
Share the target type, required coverage, mounting height and monitoring distance. Lens and analytics must be selected for the site; detection distance is not a universal guarantee. The C1, A1 and F4 variants require their own detector and optics specification.
Include in your inquiry
Target type, coverage area, mounting height, distance, lighting conditions and recording or alarm system.
Company, destination country, estimated quantity and target procurement date.
Request a PC664A1 quote ↗Questions about PC664A1
How do I select a site-monitoring configuration?
Define the target type, coverage area, viewing distance and mounting height. Check the lens, visible channel, analytics and connection to your recording system. Detection distance depends on the scene and configuration.
Which documents are available for PC664A1?
Use the model-specific resources above for available brochures and the Phoebus Link selection brief. Ask for a current datasheet covering the exact lens, interface and options you intend to order.
Who handles my quotation and order?
Phoebus Link is your contact for product selection, quotations and order coordination. The equipment brand and full model are identified in the written quotation.
How are delivery, warranty and returns confirmed?
For B2B purchases, delivery timing, warranty duration, return or exchange conditions and related costs are confirmed in writing for each order. Obtain after-sales approval before returning equipment.
