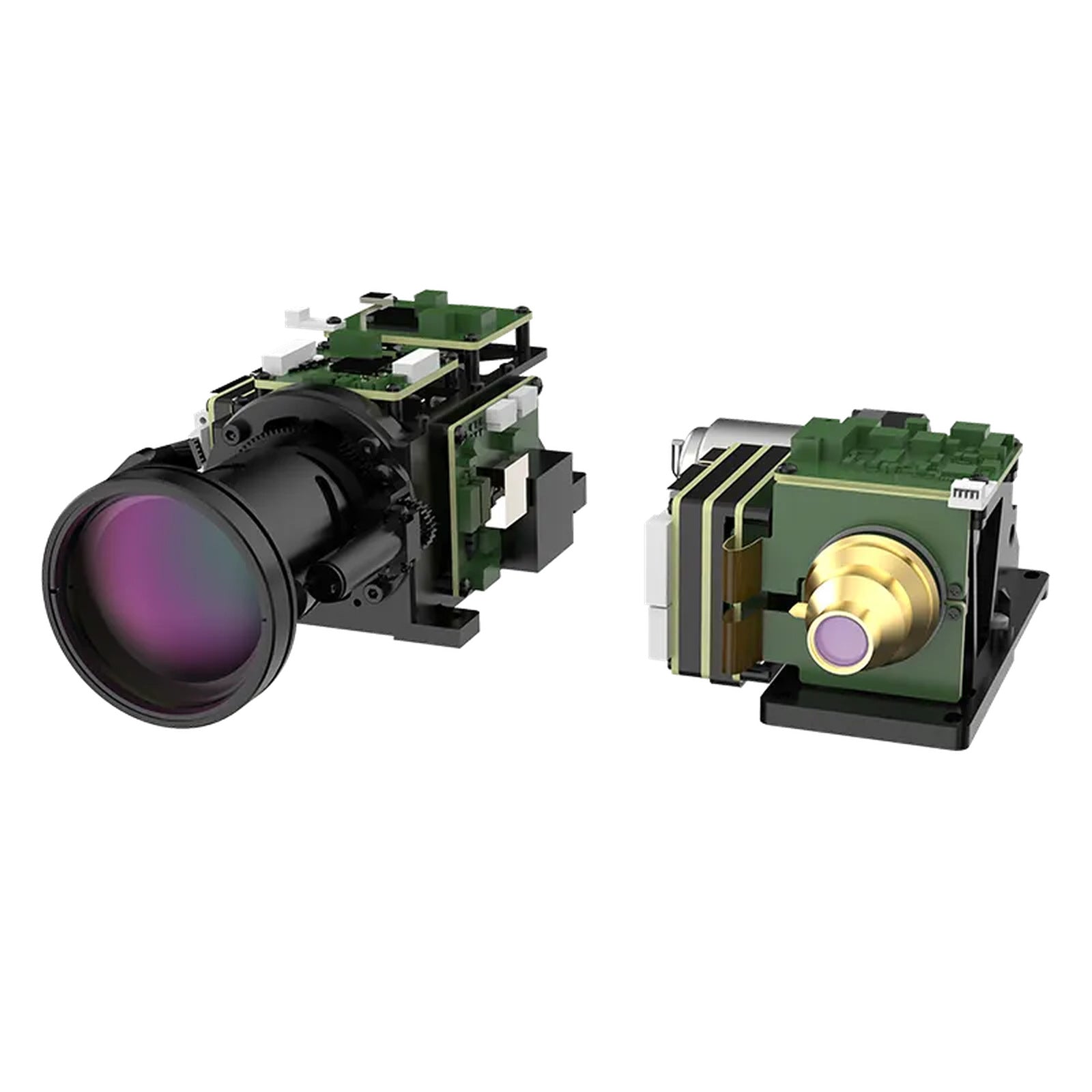

Photon M615L
Review the optics, interfaces and integration requirements for your system.
Product brand: RaythinkQuotations & order support: Phoebus Link
Request a quote ↗Confirm the exact model, configuration and supply terms in the quotation.
- Infrared resolution
- 640×512
- Frame rate
- 50 Hz/30 Hz
- Spectral band
- 3.7±0.2μm~4.8±0.2μm
- Thermal sensitivity (NETD)
- ≤15mK@25℃
Manufacturer documents
Original manufacturer documents retain their source language. Check the full model and document version.
Open technical PDF · Photon M615L ↗Manufacturer reference · Original language
| Detector Type | HgCdTe cooled infrared detector |
|---|---|
| Resolution | 640×512 |
| Frame Rate | 50 Hz/30 Hz |
| Pixel Pitch | 15μm |
| Spectral Band | 3.7±0.2μm～4.8±0.2μm |
| NETD | ≤15mK@25℃ |
| Operating Temperature | -40℃～+60℃ |
Share your application and required configuration with Phoebus Link.
Reference values. Confirm the supplied configuration against the matching manufacturer document.
