Raythink / Site & perimeter monitoring

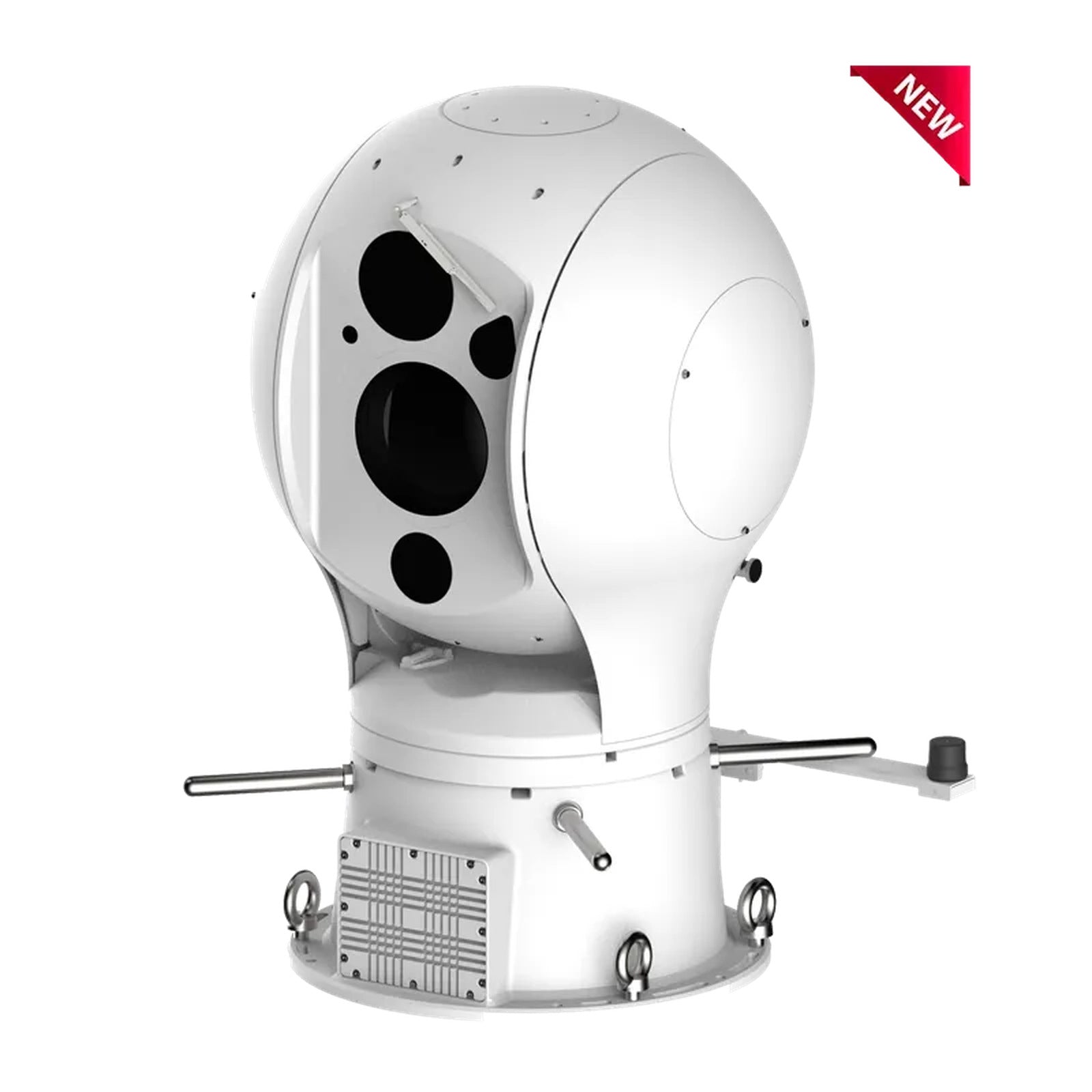

PM7
Match coverage, mounting position and operating conditions to your monitoring requirements.
Product brand: RaythinkQuotations & order support: Phoebus Link
Request a quote ↗Confirm the exact model, configuration and supply terms in the quotation.
- Thermal sensitivity (NETD)
- ≤20mK(@25°C, F#4.0, 50Hz), ≤25mK(@25°C, F#5.5, 50Hz)
Manufacturer documents
Original manufacturer documents retain their source language. Check the full model and document version.
Open technical PDF · PM7 ↗Manufacturer reference · Original language
| Detector Type | T2SL cooled infrared detector |
|---|---|
| NETD | ≤20mK(@25°C, F#4.0, 50Hz), ≤25mK(@25°C, F#5.5, 50Hz) |
| Pixel Pitch | 15μm |
| Power Supply | DC 48V±15% |
| Power Consumption | Max.270W(@25℃) |
| Weight | 125kg |
Share your application and required configuration with Phoebus Link.
Reference values. Confirm the supplied configuration against the matching manufacturer document.
