Raythink / Handheld thermal cameras

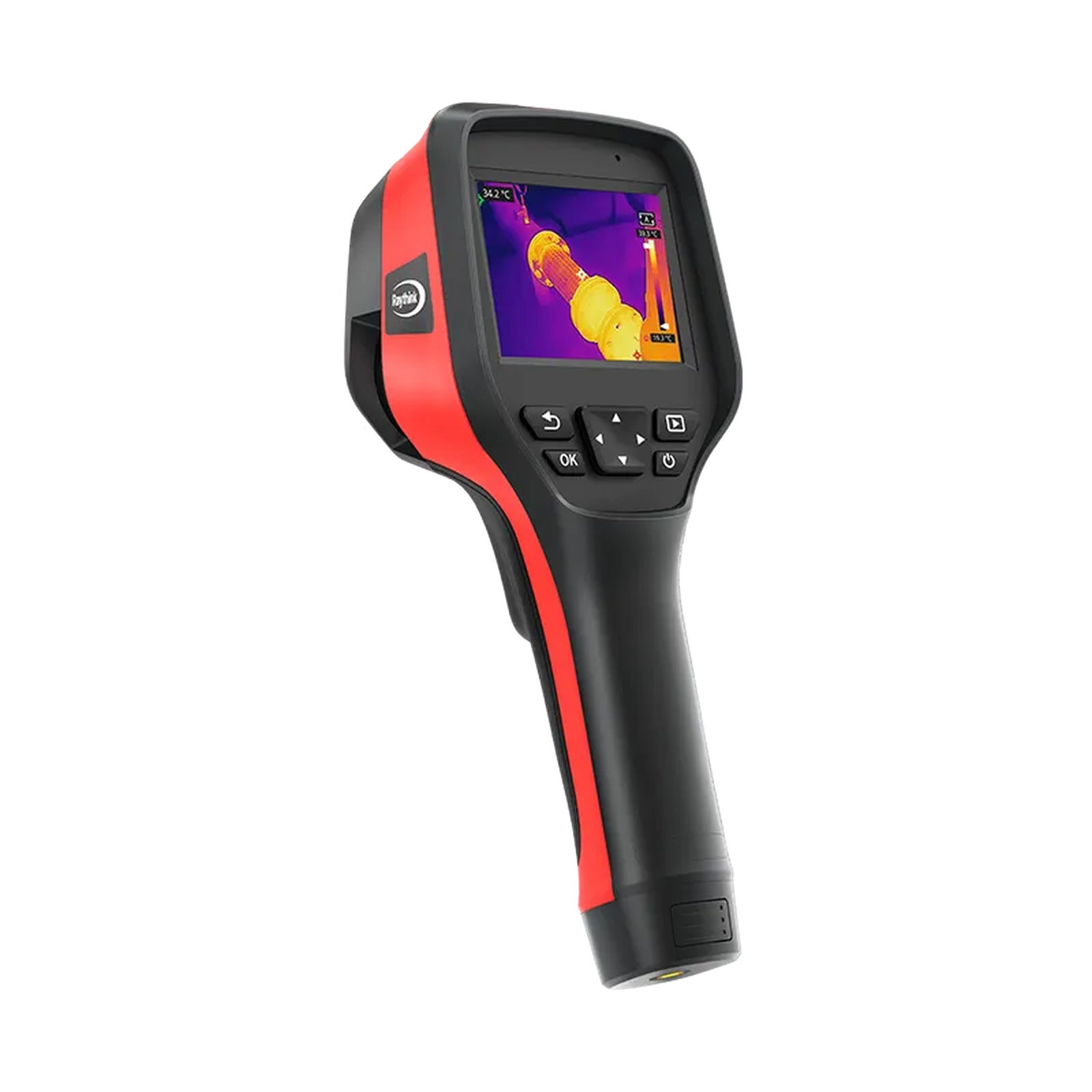

RM305
Discuss the target, working distance and temperature range to narrow down the camera and lens configuration.
Product brand: RaythinkQuotations & order support: Phoebus Link
Request a quote ↗Confirm the exact model, configuration and supply terms in the quotation.
- Infrared resolution
- 384×288
- Spectral band
- 7.5-14μm
- Thermal sensitivity (NETD)
- <35mK (25°C,F1.0)
- Frame rate
- 30 Hz
Manufacturer documents
Original manufacturer documents retain their source language. Check the full model and document version.
Open technical PDF · RM305 ↗Manufacturer reference · Original language
| Detector Type | Uncooled infrared detector |
|---|---|
| Infrared Resolution | 384×288 |
| Spectral Band | 7.5-14μm |
| NETD | ＜35mK (25°C,F1.0) |
| Frame Rate | 30 Hz |
| Lens Focal Length | 6.2mm |
| FOV | 43.7°×31.9° |
| Focusing Mode | Manual focusing |
| Measurement Range | -20°C~+150°C, 100°C~550°C |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater |
| Display | 3.5-inch touch screen, 640×480 resolution |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion |
| Operating Temperature | -10°C~+50°C |
| Ingress Protection Rating | IP54 |
| Weight and Dimensions | About 670g, 258.4×105.1×102.3mm |
Share your application and required configuration with Phoebus Link.
Reference values. Confirm the supplied configuration against the matching manufacturer document.
