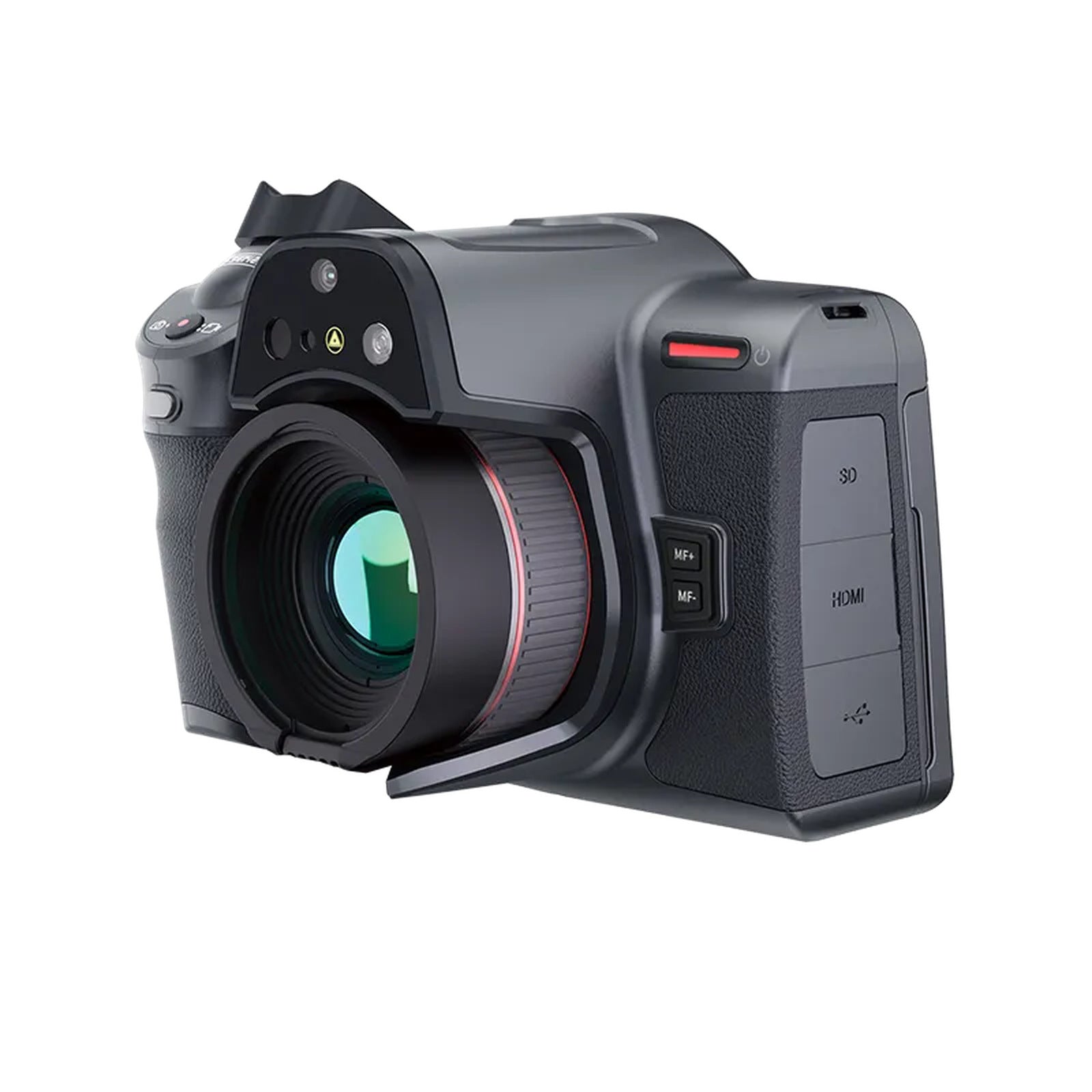

RS1280
Discuss the target, working distance and temperature range to narrow down the camera and lens configuration.
Product brand: RaythinkQuotations & order support: Phoebus Link
Request a quote ↗Confirm the exact model, configuration and supply terms in the quotation.
- Infrared resolution
- 1280×1024
- Spectral band
- 7.5-14μm
- Thermal sensitivity (NETD)
- <25mK (25°C,F1.0)
- Frame rate
- 30 Hz
Manufacturer documents
Original manufacturer documents retain their source language. Check the full model and document version.
Open technical PDF · RS1280 ↗Manufacturer reference · Original language
| Detector Type | Uncooled infrared detector |
|---|---|
| Infrared Resolution | 1280×1024 |
| Spectral Band | 7.5-14μm |
| NETD | ＜25mK (25°C,F1.0) |
| Frame Rate | 30 Hz |
| Lens Focal Length | Standard lens: 34.9mm; wide-angle lens: 19.8mm; telephoto lens: 72.9mm |
| FOV | Standard lens: 25°×20°; telephoto lens: 12°×9.6°; wide-angle lens: 45°×36° |
| Focusing Mode | Manual focus,electri micro focus, one-button center focus, automatic center focus,single-touch automatic focus, laser-assisted focus |
| Measurement Range | Standard: -20°C~+150°C (low temperature range), 150°C~800°C (medium temperature range), 400°C~2000°C, other ranges (high temperature range) |
| Display | 5.5-inch LCD touch screen, resolution 1920×1080 |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion |
| Operating Temperature | '-15°C~+50°C |
| Ingress Protection Rating | IP54 |
| Weight and Dimensions | <1.7kg (with battery), 140×210×115mm |
Share your application and required configuration with Phoebus Link.
Reference values. Confirm the supplied configuration against the matching manufacturer document.
