Raythink / Optical gas imaging

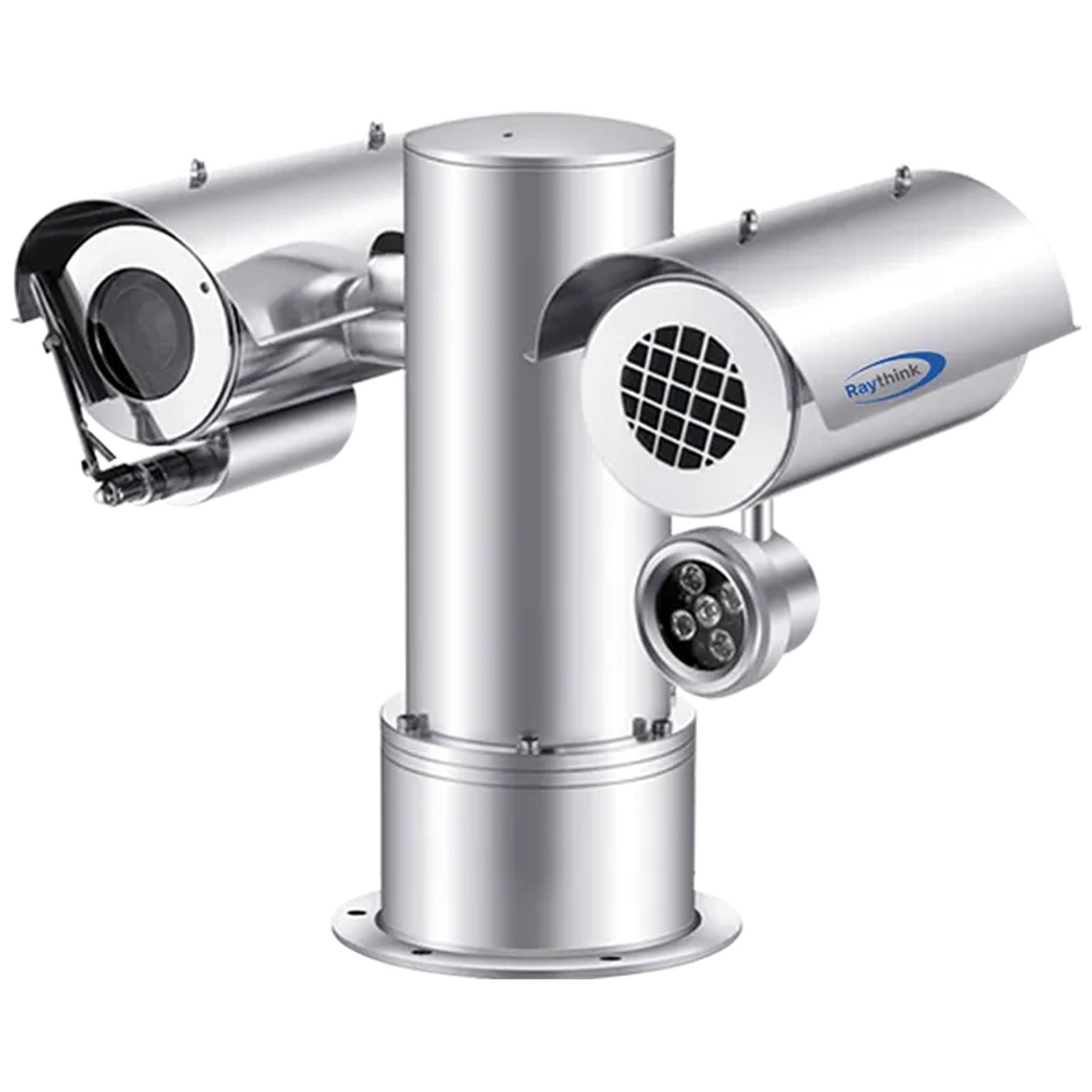

TE464G1
Gas compatibility is model-specific. Confirm the target gas and required functions before ordering.
Product brand: RaythinkQuotations & order support: Phoebus Link
Request a quote ↗Confirm the exact model, configuration and supply terms in the quotation.
- Spectral band
- 7~8.5μm
- Thermal sensitivity (NETD)
- ≤20mK(@25°C,F#1.0)
- Infrared resolution
- 640×512
Target gas
Gas compatibility is model-specific. Confirm the target gas and required functions before ordering.
Gas, background, distance and weather affect visibility. Confirm suitability for your inspection conditions.
Manufacturer documents
Original manufacturer documents retain their source language. Check the full model and document version.
Open technical PDF · TE464G1 ↗Manufacturer reference · Original language
| Detector Type | VOx uncooled focal plane detector |
|---|---|
| Spectral Band | 7~8.5μm |
| Thermal Sensitivity | ≤20mK(@25°C,F#1.0) |
| Infrared Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Measurement Range | -20℃~+550℃ |
| Measurement Accuracy | ±2°C or ±2% |
| Power Supply | 85V～260V AC/24V DC 3A (optional) |
| Communication Interface | 1 RJ45 10M/100M adaptive Ethernet port; 1-channel RS485 interface, supporting Pelco protocol. |
| Ingress Protection Rating | IP68 |
| Power Consumption | ≤100W (thermostat activated) |
| Dimensions | 436×296×406 mm |
| Weight | 27kg |
Share your application and required configuration with Phoebus Link.
Reference values. Confirm the supplied configuration against the matching manufacturer document.
