Raythink / Infrared imaging modules

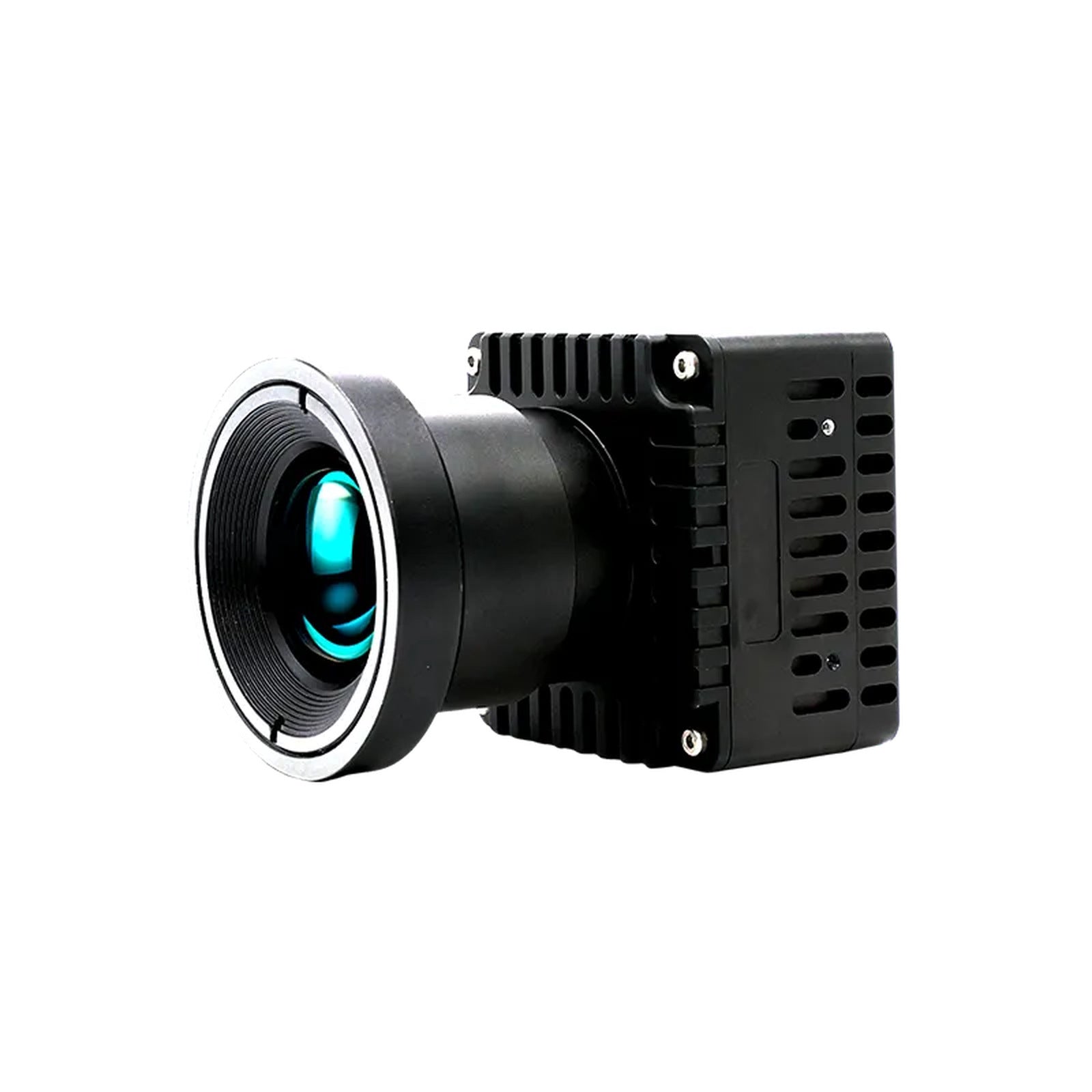

Turing F1920
Review the optics, interfaces and integration requirements for your system.
Product brand: RaythinkQuotations & order support: Phoebus Link
Request a quote ↗Confirm the exact model, configuration and supply terms in the quotation.
- Infrared resolution
- 1920×1080
- Spectral band
- 8~14μm
- Thermal sensitivity (NETD)
- ≤30mK@25°C, F#1.0
Manufacturer documents
Original manufacturer documents retain their source language. Check the full model and document version.
Open technical PDF · Turing F1920 ↗Manufacturer reference · Original language
| Detector Type | Uncooled VOx infrared detector |
|---|---|
| Resolution | 1920×1080 |
| Pixel Pitch | 8μm |
| Spectral Band | 8~14μm |
| NETD | ≤30mK@25°C, F#1.0 |
| Focus Mode | Manual/Automatic (focus time ≤ 1s near clear points) |
| Operating Temperature | -40°C～+70°C |
Share your application and required configuration with Phoebus Link.
Reference values. Confirm the supplied configuration against the matching manufacturer document.
