Motorized focusing
Adjust focus for the measurement target without manually turning the lens at the installation point.
Raythink · Industrial and research thermography

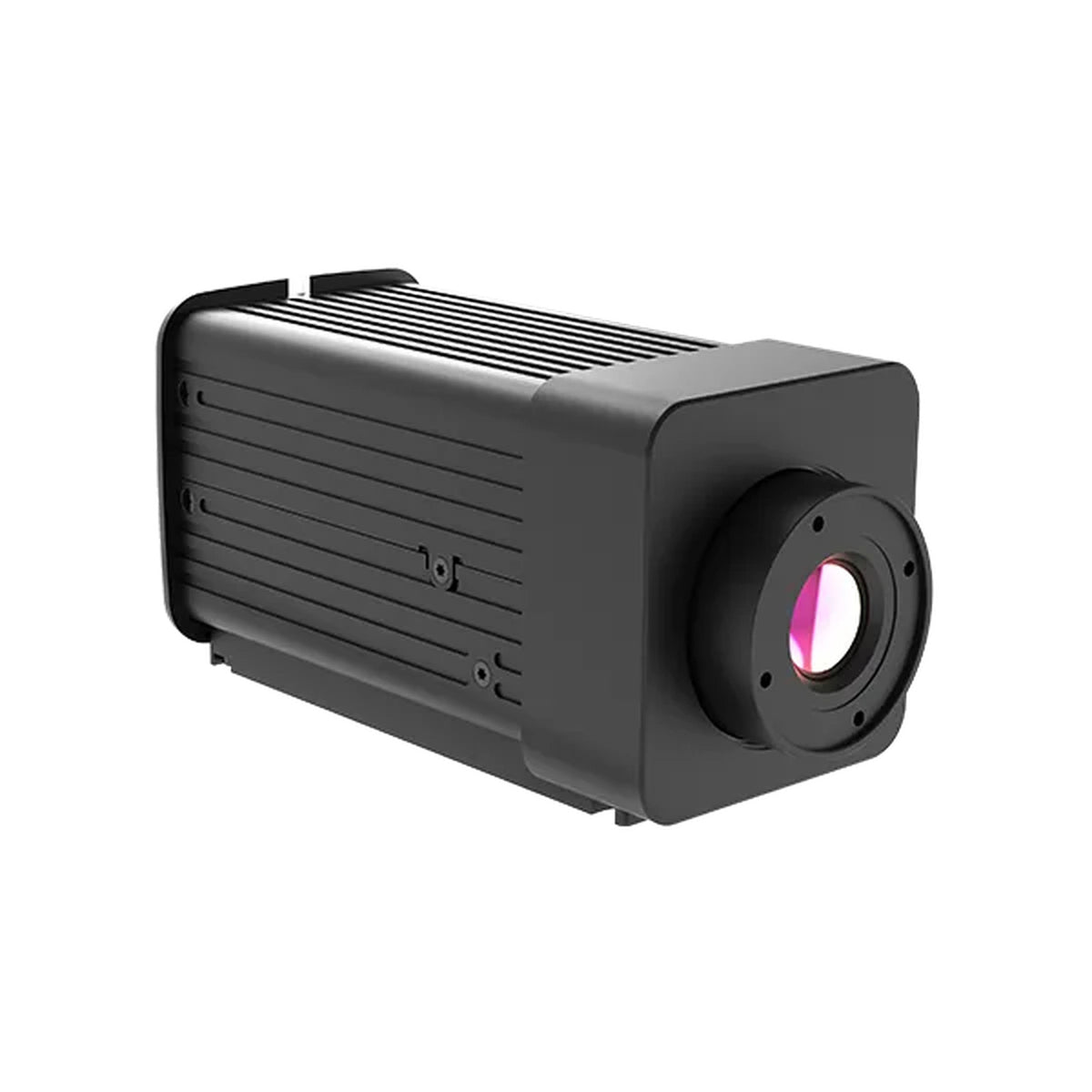

AT61
Motorized Focusing Thermal Camera
AT61 combines motorized focusing with a networked thermal imaging workflow for industrial inspection and research integration.
Confirm the configuration, availability and supply terms in your quotation.
- Infrared Resolution
- 640×512
- Frame Rate
- 25 Hz
- Measurement Range
- -20℃~+150℃,0℃~550℃
- Spectral Band
- 8μm~14μm
Application & capabilities
Motorized focus for a fixed measurement workflow
Host-system integration
Confirm the network interface, SDK and temperature-data access required by your analysis system.
Technical specifications
| Infrared Resolution | 640×512 |
|---|---|
| Pixel pitch | 12μm |
| Spectral Band | 8μm~14μm |
| Thermal Sensitivity (NETD) | <50mK |
| Measurement Range | -20℃~+150℃,0℃~550℃ |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater. |
| Frame Rate | 25 Hz |

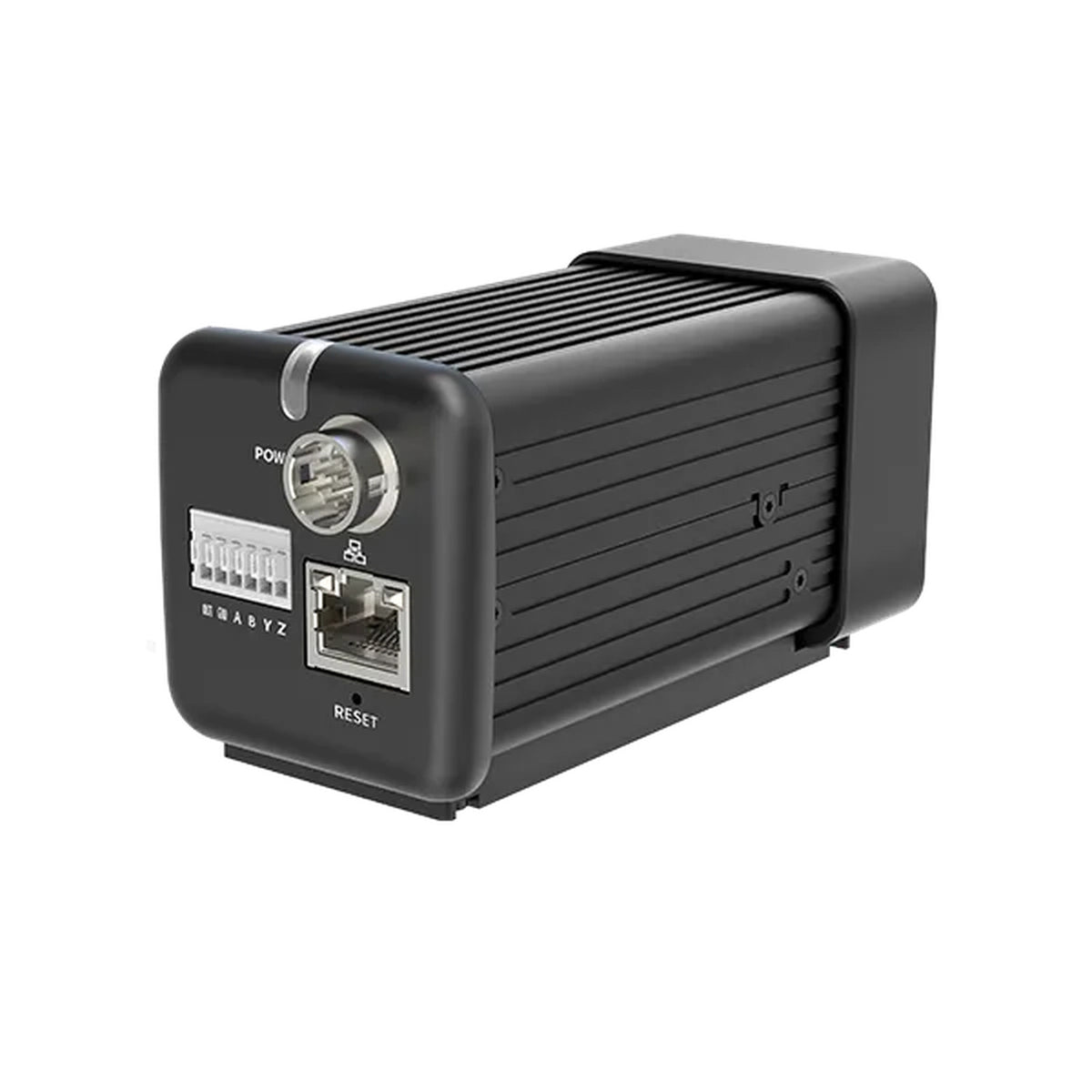

| Communication interface | RJ45，supporting Gigabit network and customized RS485 for Pecol-D protocol. |
| Interface Protocol | ONVIF, GB28181 |
| Operating Temperature | -20℃~+60℃ |
| Dimensions | 56mm×51mm×119mm |
| Weight | About 430g |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
Documents
Prepared by Phoebus Link
Your AT61 selection brief.
Share the model overview, key specifications and procurement questions with your team.
PDF · 2 pages · Product brand: Raythink · Enquiries: Phoebus Link
Manufacturer technical references
Original Raythink documents are provided for technical verification. For pricing, configuration and order support, contact Phoebus Link.
AT61 product brochurePDF · Manufacturer documentDiscuss your project
