Handheld thermography

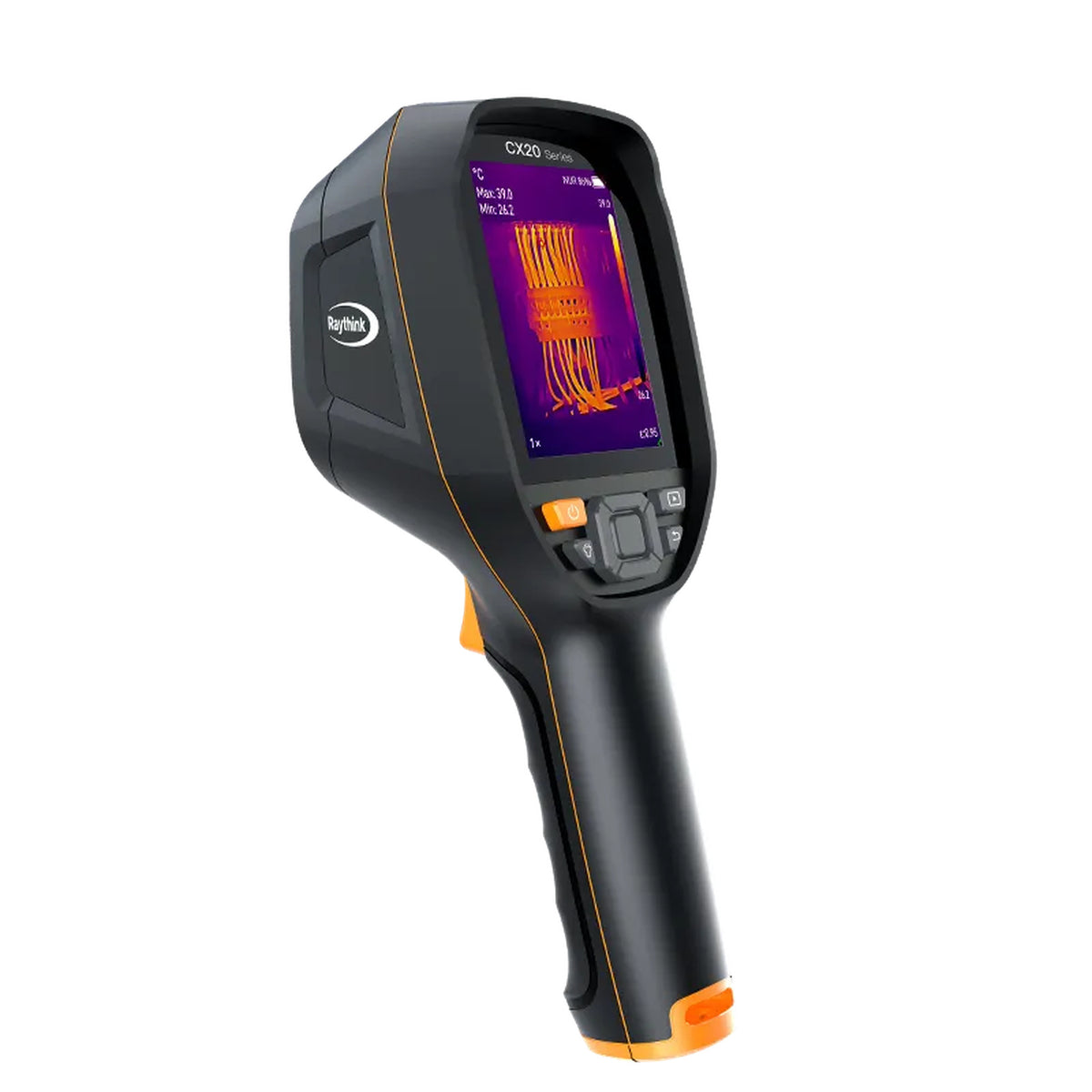

CX20 Handheld Thermal Camera
CX20 brings a native 256 × 192 thermal detector and a 3.5-inch touchscreen to maintenance inspections.
- Infrared Resolution
- 256×192
- Frame Rate
- 25 Hz
- Measurement Range
- Low temperature range:-20-150°C; high temperature range:100~550°C; auto switching
- Spectral Band
- 7.5-14μm
Raythink equipment · Selection and procurement through Phoebus Link.
For distributors and business buyers. Configuration, pricing and delivery are confirmed in a written quotation.
WHAT THIS MODEL DOES
Touchscreen inspection with 256 × 192 thermal detail
Inspection and analysis
Review thermal patterns on the touchscreen and use the supported analysis workflow for inspection records.
Select the right configuration
Check the model-specific laser and accessory options against your inspection task.
TECHNICAL REFERENCE
CX20 specifications
Manufacturer reference specifications. Options and supplied configuration are identified in your quotation.
| Detector Type | 12μm |
|---|---|
| Infrared Resolution | 256×192 |
| Spectral Band | 7.5-14μm |
| NETD | ＜40mK |
| Frame Rate | 25 Hz |
| Lens Focal Length | 3.2mm |
| FOV | 56°×42° |
| Focusing Mode | Fixed focus |
| IFOV | 3.8mrad |
| Minimum Imaging Distance | 0.3m |
| Digital Zoom | 2x, 4x |
| Measurement Range | Low temperature range:-20-150°C; high temperature range:100~550°C; auto switching |
|---|---|
| Measurement Accuracy | ±2% or ±2°C of readings, whichever is greater |
| Temperature Width Stretch | Automatic/Manual |
| Temperature Alarm | Support full-frame highest/lowest temperature alarm; automatic image capture at alarm time (with temperature data) |
| Display | 3.5-inch, 480×640 resolution |
|---|---|
| Image Mode | Infrared |
| Storage Medium | 32GB Internal Memory |
| Palettes | 7 |
| Communication Protocol | Wi-Fi, USB |
| Video Transmission | UVC (including full-frame temperature data) + Wi-Fi (excluding full-frame temperature data) |
| Operating Temperature | -10°C~+50°C |
|---|---|
| Ingress Protection Rating | IP54/2m |
| Weight and Dimensions | 500g, 246X101X85mm |
| Power Management | Adjustable (Automatic shutdown, 5 min, 10 min, 20 min, 120 min) |
| Battery | Built-in rechargeable lithium-ion battery |
| Battery Life | 6h |
| Operating Humidity | 10%~95% (non-condensing) |
| Storage Temperature | -20°C~+60°C |
TECHNICAL DOCUMENTS
Downloads & selection resources
PLAN THE CONFIGURATION
Specify CX20 for your project
Tell us the target size, working distance and temperature range. Lens, software and accessories are confirmed in the quotation.
Include in your inquiry
Inspection task, target size, working distance, temperature range and required lenses or analysis software.
Company, destination country, estimated quantity and target procurement date.
Request a CX20 quote ↗Questions about CX20
How should I select a handheld inspection camera?
Start with the target size, working distance and temperature range. Choose optics and analysis tools for the inspection task, and identify any high-temperature option separately.
Which documents are available for CX20?
Use the model-specific resources above for available brochures and the Phoebus Link selection brief. Ask for a current datasheet covering the exact lens, interface and options you intend to order.
Who handles my quotation and order?
Phoebus Link is your contact for product selection, quotations and order coordination. The equipment brand and full model are identified in the written quotation.
How are delivery, warranty and returns confirmed?
For B2B purchases, delivery timing, warranty duration, return or exchange conditions and related costs are confirmed in writing for each order. Obtain after-sales approval before returning equipment.
