Inspection and analysis
Review thermal patterns on the touchscreen and use the supported analysis workflow for inspection records.
Raythink · Handheld thermography

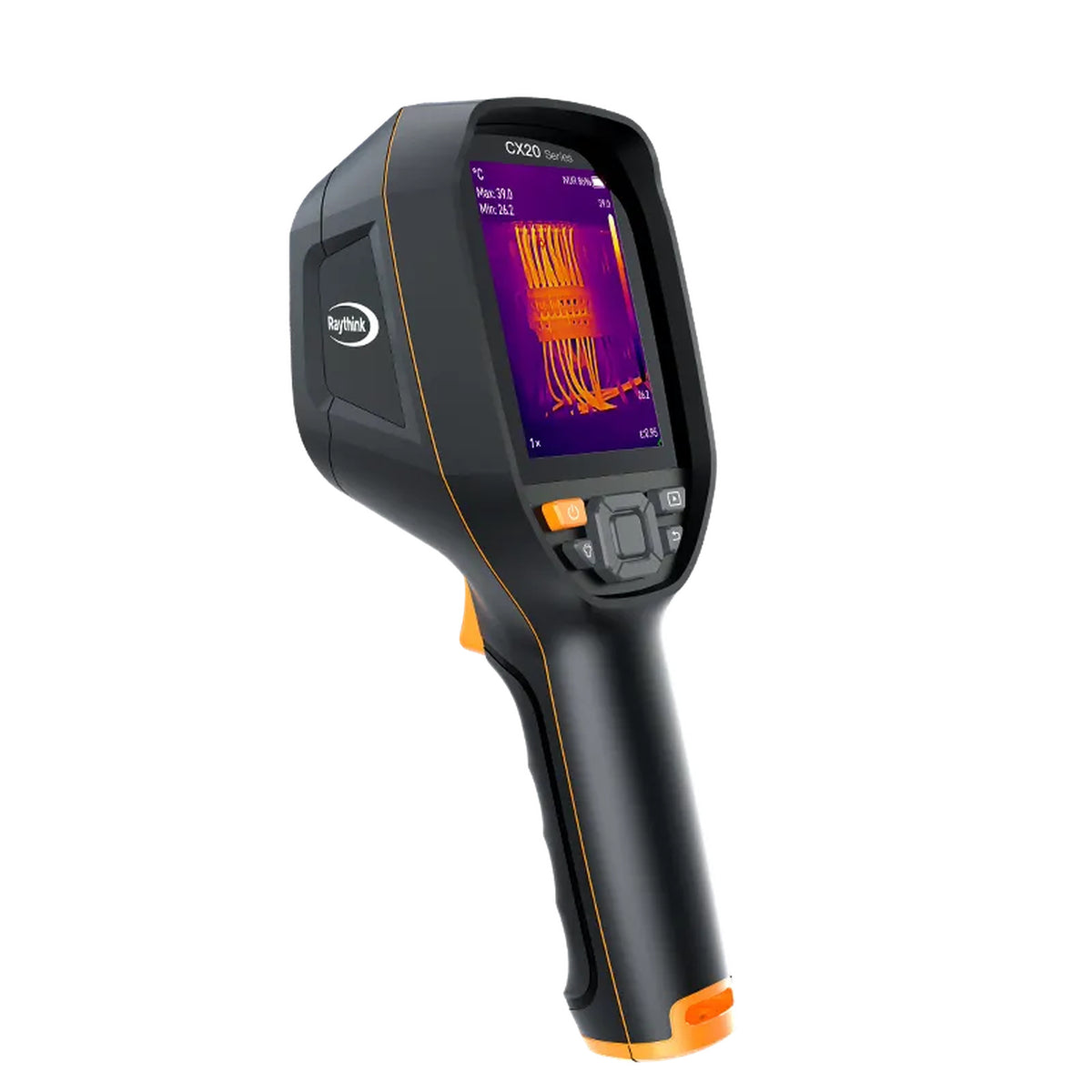

CX20 Pro
Handheld Thermal Camera
CX20 Pro brings a native 256 × 192 thermal detector and a 3.5-inch touchscreen to maintenance inspections.
Confirm the configuration, availability and supply terms in your quotation.
- Infrared Resolution
- 256×192
- Frame Rate
- 25 Hz
- Measurement Range
- Low temperature range:-20-150°C; high temperature range:100~550°C; auto switching
- Spectral Band
- 7.5-14μm
Application & capabilities
Touchscreen inspection with 256 × 192 thermal detail
Laser pointer option
Request confirmation of the laser pointer configuration when quoting the Pro model.
Technical specifications
| Detector Type | 12μm |
|---|---|
| Infrared Resolution | 256×192 |
| Spectral Band | 7.5-14μm |
| NETD | ＜40mK |
| Frame Rate | 25 Hz |
| Lens Focal Length | 3.2mm |
| FOV | 56°×42° |
| Focusing Mode | Fixed focus |
| Measurement Range | Low temperature range:-20-150°C; high temperature range:100~550°C; auto switching |
| Measurement Accuracy | ±2% or ±2°C of readings, whichever is greater |
| Display | 3.5-inch, 480×640 resolution |
| Image Mode | Infrared, fusion, PIP, visible light |
| Storage Medium | 32GB Internal Memory |
| Operating Temperature | -10°C~+50°C |
| Ingress Protection Rating | IP54/2m |
| Weight and Dimensions | 500g, 246X101X85mm |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
