Inspection and analysis
Review thermal patterns on the touchscreen and use the supported analysis workflow for inspection records.
Raythink · Handheld thermography

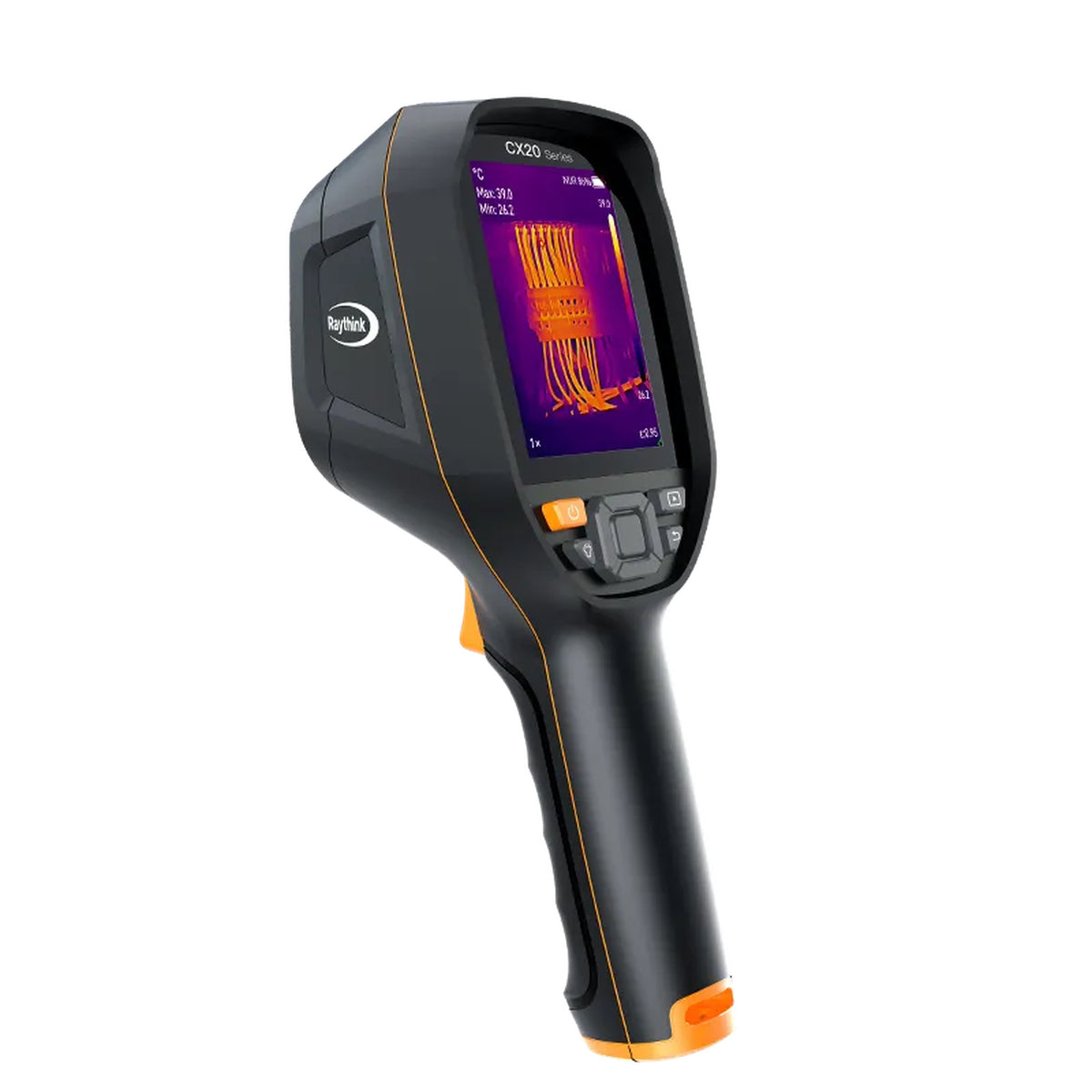

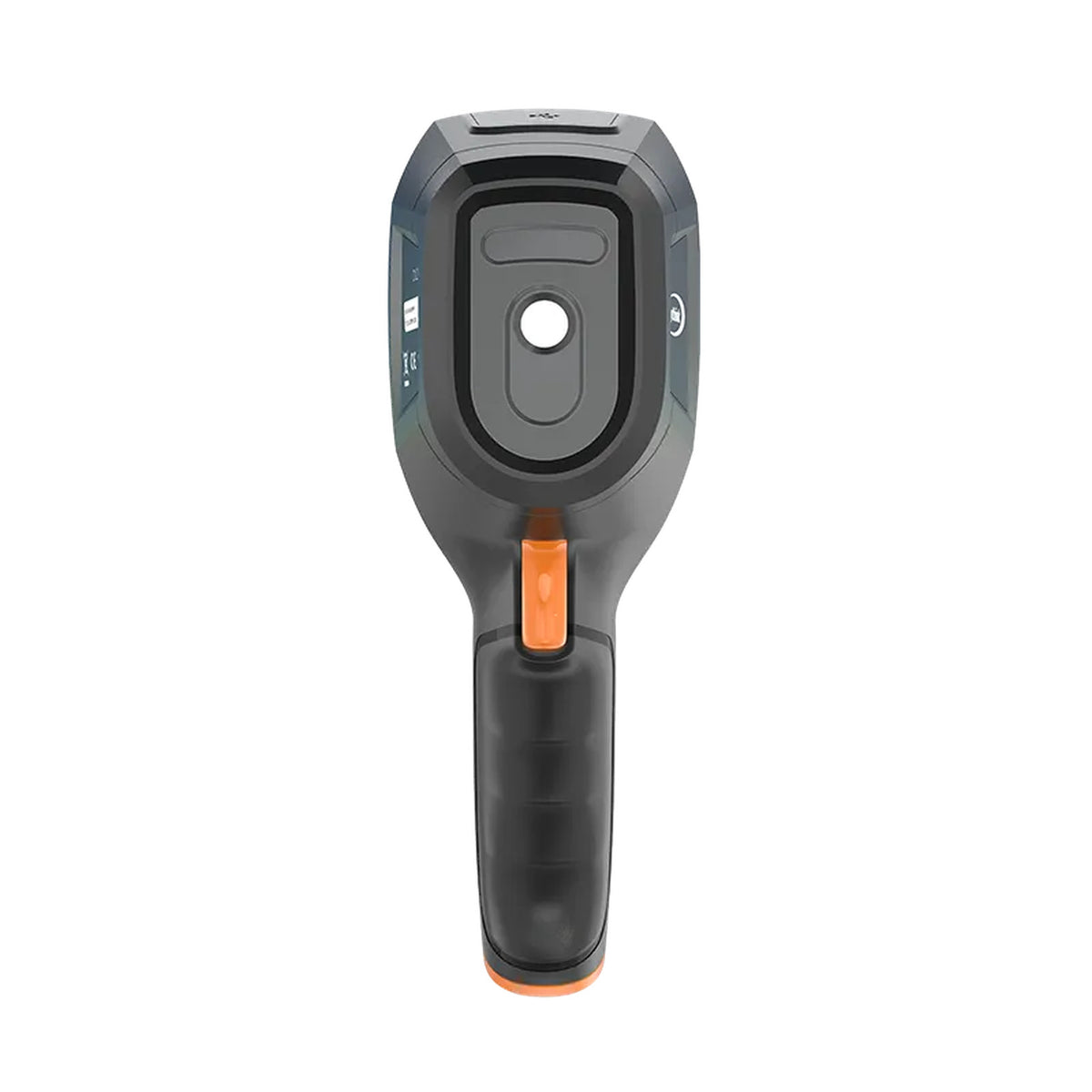

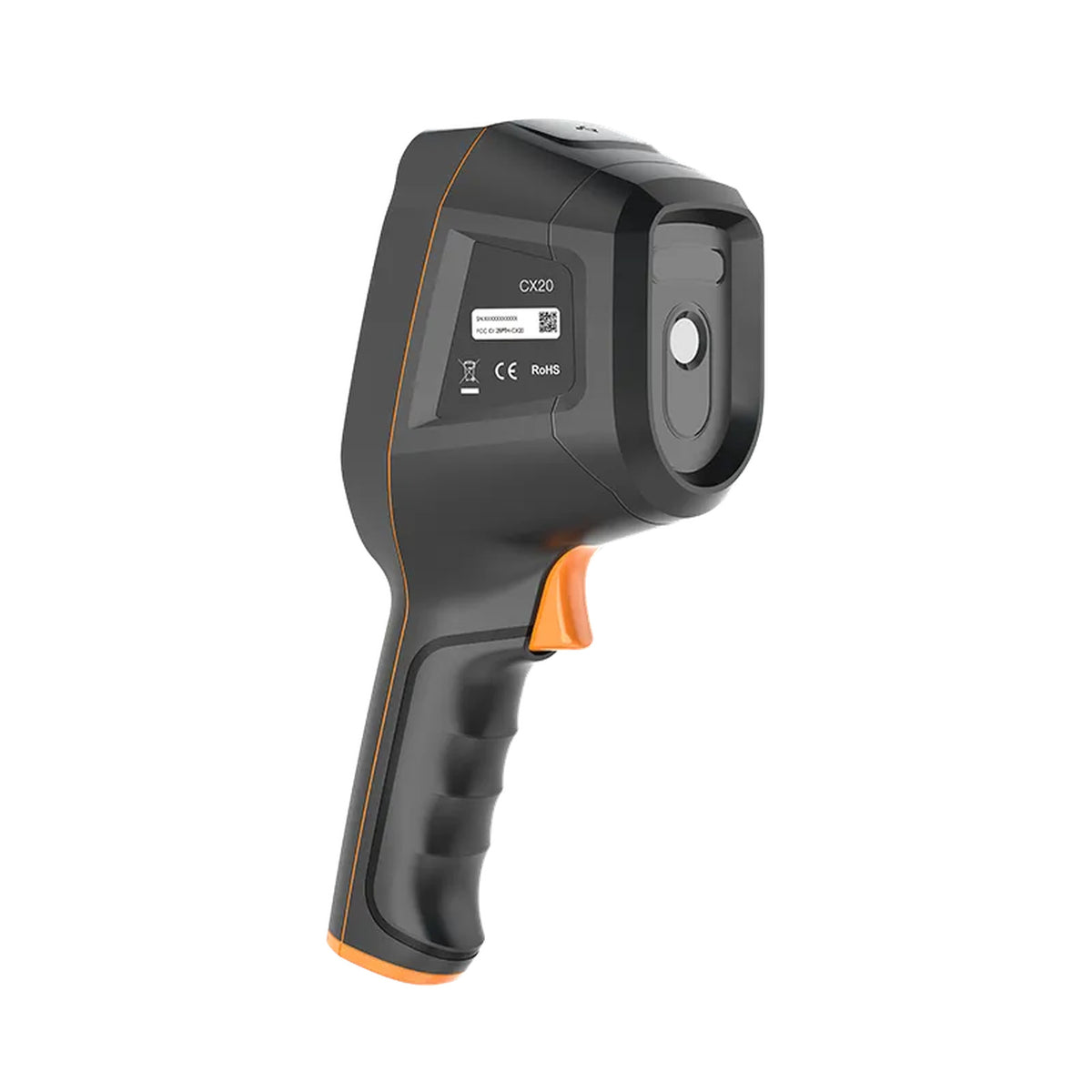

CX20 Ultra
Handheld Thermal Camera
CX20 Ultra brings a native 256 × 192 thermal detector and a 3.5-inch touchscreen to maintenance inspections.
Confirm the configuration, availability and supply terms in your quotation.
- Infrared Resolution
- 256×192
- Frame Rate
- 25 Hz
- Measurement Range
- Low temperature range:-20-150°C; high temperature range:100~550°C; auto switching
- Spectral Band
- 7.5-14μm
Application & capabilities
Touchscreen inspection with 256 × 192 thermal detail
Rangefinding configuration
The Ultra product information lists laser pointing and rangefinding. Confirm the supplied options for your project.
Technical specifications
| Detector Type | 12μm |
|---|---|
| Infrared Resolution | 256×192 |
| Spectral Band | 7.5-14μm |
| NETD | ＜40mK |
| Frame Rate | 25 Hz |
| Lens Focal Length | 4.3mm |
| FOV | 40°×30° |
| Focusing Mode | Fixed focus |
| Measurement Range | Low temperature range:-20-150°C; high temperature range:100~550°C; auto switching |
| Measurement Accuracy | ±2% or ±2°C of readings, whichever is greater |
| Display | 3.5-inch, 480×640 resolution |
| Image Mode | Infrared, fusion, PIP, visible light |
| Storage Medium | 32GB Internal Memory |
| Operating Temperature | -10°C~+50°C |
| Ingress Protection Rating | IP54/2m |
| Weight and Dimensions | 500g, 246X101X85mm |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
Documents
Prepared by Phoebus Link
Your CX20 Ultra selection brief.
Share the model overview, key specifications and procurement questions with your team.
PDF · 2 pages · Product brand: Raythink · Enquiries: Phoebus Link
Manufacturer technical references
Original Raythink documents are provided for technical verification. For pricing, configuration and order support, contact Phoebus Link.
CX20 Ultra product brochurePDF · Manufacturer documentDiscuss your project
