Temperature inspection
Use thermal images to examine electrical equipment, mechanical components and building systems.
Raythink · Handheld thermography

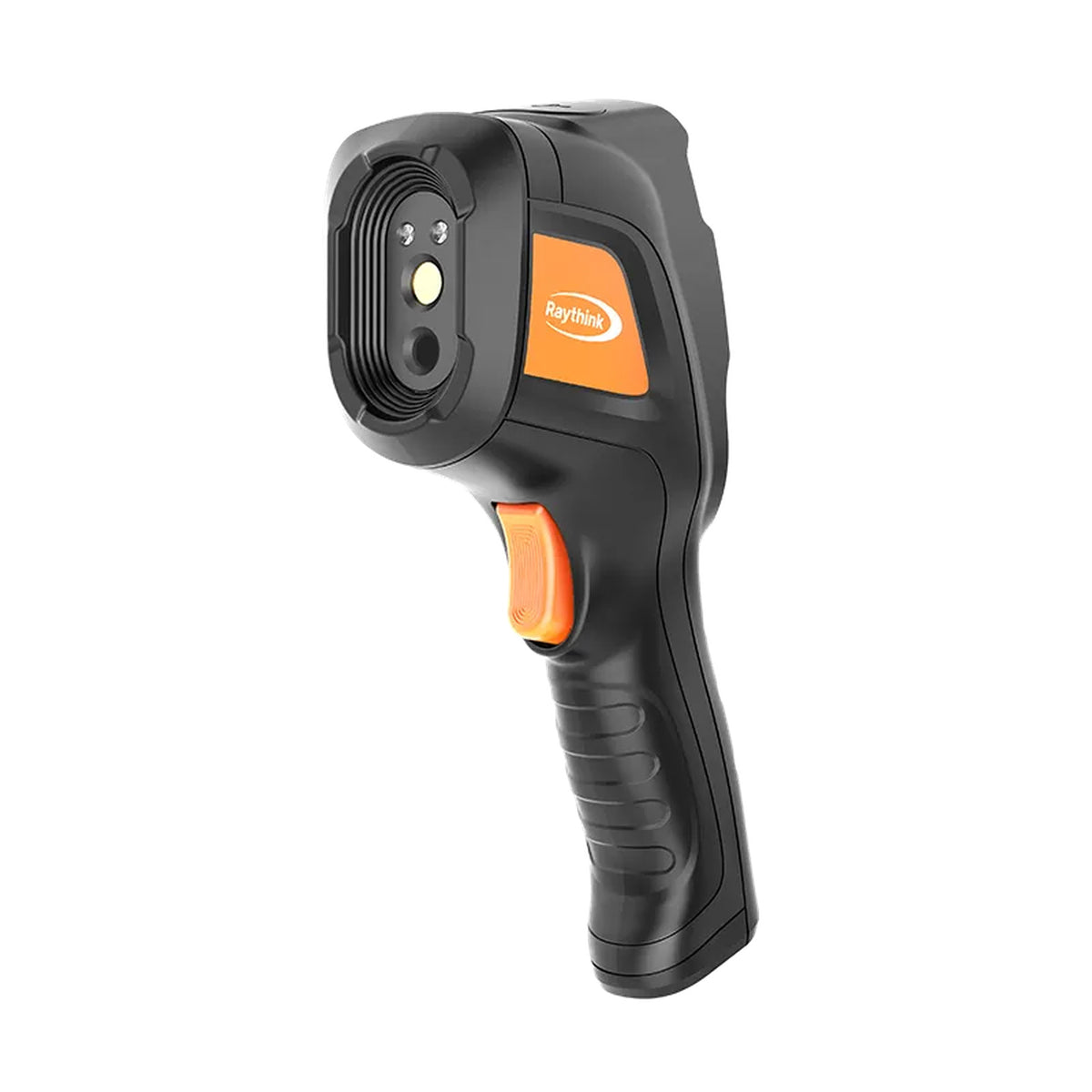

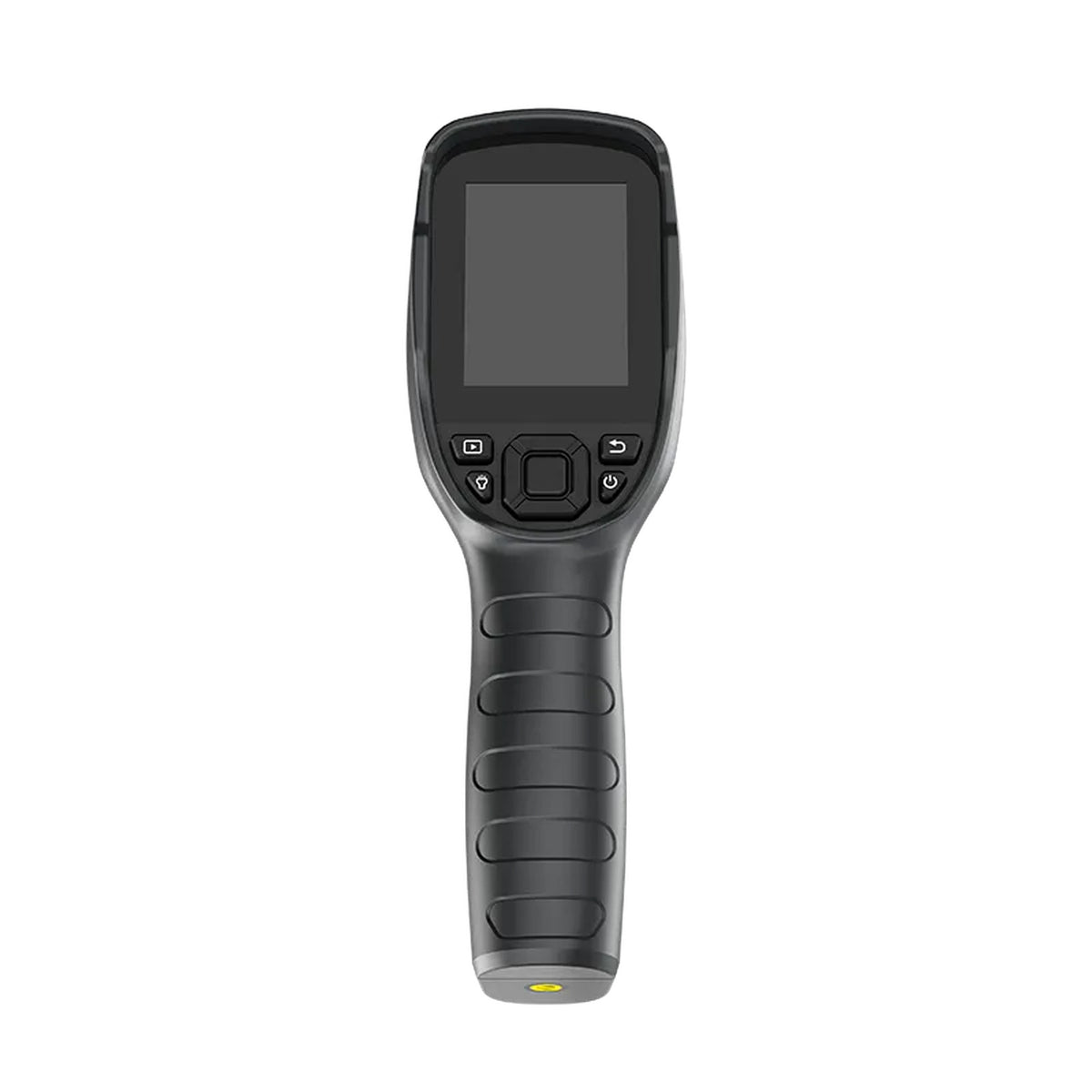

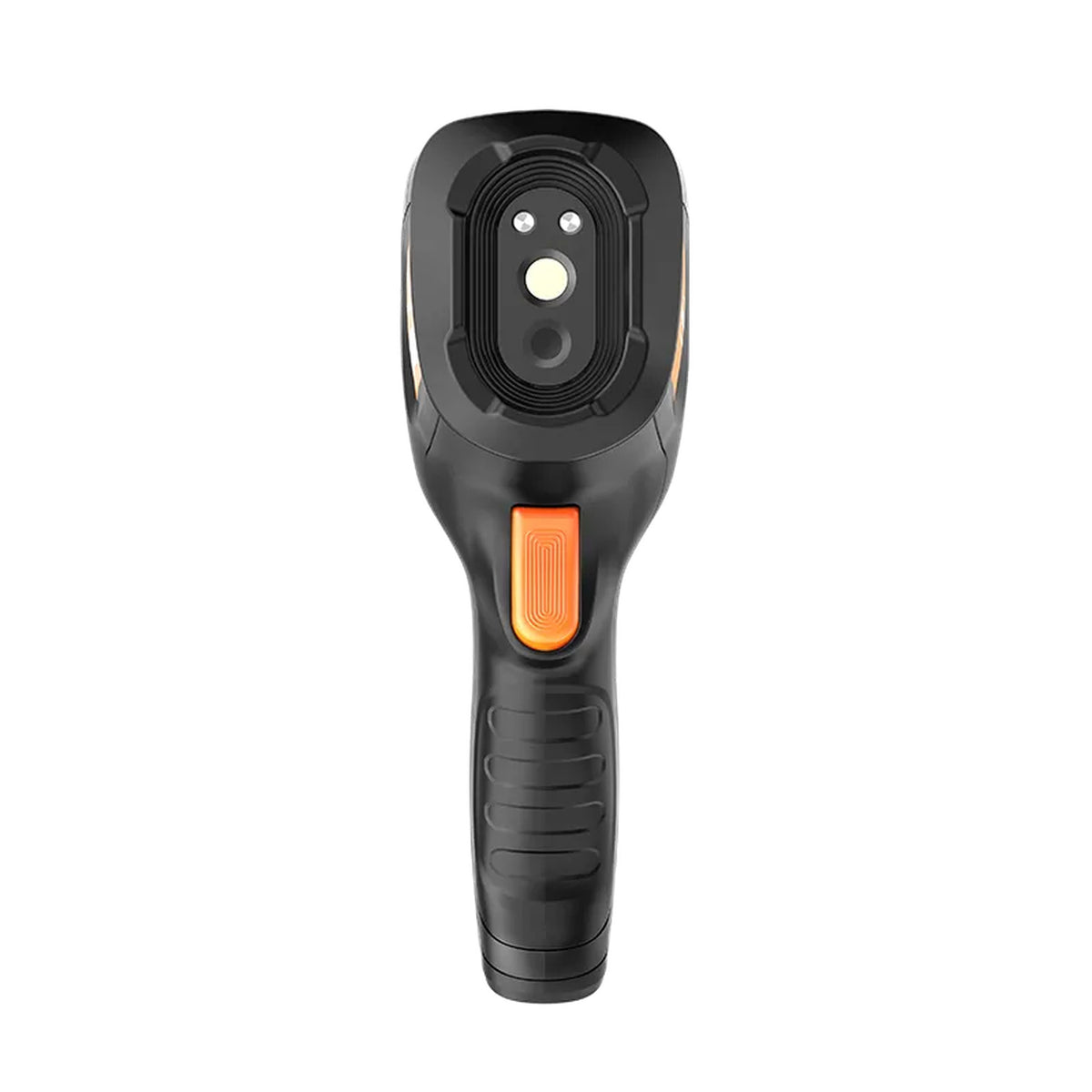

CX200+
Handheld Thermal Camera
CX200+ combines a native 256 × 192 detector, a 2.8-inch display and PC analysis for field inspection records.
Confirm the configuration, availability and supply terms in your quotation.
- Infrared Resolution
- 256×192
- Frame Rate
- 25 Hz
- Measurement Range
- -20°C~+150°C, 100°C~550°C
- Spectral Band
- 7.5-14μm
Application & capabilities
Portable temperature inspection and reporting
Review after the inspection
PC analysis supports a workflow from image capture to inspection documentation.
Technical specifications
| Detector Type | 12μm uncooled infrared detector |
|---|---|
| Infrared Resolution | 256×192 |
| Spectral Band | 7.5-14μm |
| NETD | ＜40mK (25°C,F1.0) |
| Frame Rate | 25 Hz |
| Lens Focal Length | 3.2mm |
| FOV | 56°×42° |
| Focusing Mode | Fixed focus |
| Measurement Range | -20°C~+150°C, 100°C~550°C |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater |
| Display | 2.8 inch, 320×240 |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion |
| Operating Temperature | -10°C~+50°C |
| Ingress Protection Rating | IP54 |
| Weight and Dimensions | About 520g, 237×75×92mm |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
Documents
Prepared by Phoebus Link
Your CX200+ selection brief.
Share the model overview, key specifications and procurement questions with your team.
PDF · 2 pages · Product brand: Raythink · Enquiries: Phoebus Link
Manufacturer technical references
Original Raythink documents are provided for technical verification. For pricing, configuration and order support, contact Phoebus Link.
CX200+ product brochurePDF · Manufacturer documentDiscuss your project
