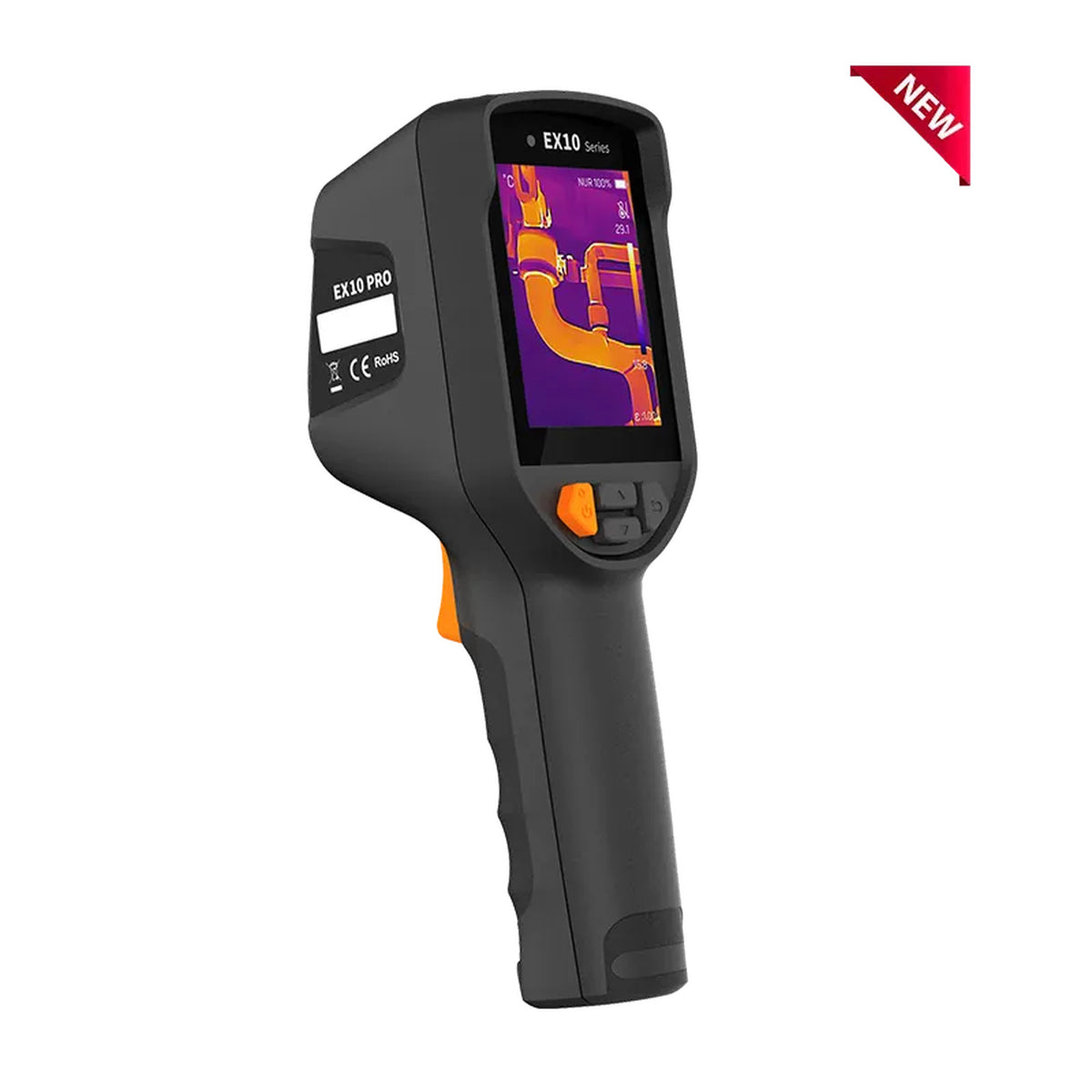

Manufacturer product imagery. Supplied optics, interfaces and accessories depend on the selected configuration.
Handheld thermography
EX10 Pro Handheld Thermal Camera
EX10 Pro combines a native 160 × 120 thermal detector with a compact handheld format for everyday equipment inspections.
- Infrared Resolution
- 160×120
- Frame Rate
- 25 Hz
- Measurement Range
- -20~150℃; 100~550℃; auto switching
- Spectral Band
- 8-14μm
Raythink equipment · Selection and procurement through Phoebus Link.
For distributors and business buyers. Configuration, pricing and delivery are confirmed in a written quotation.
WHAT THIS MODEL DOES
Compact thermal checks for routine maintenance
Routine checks
Locate hot and cold areas during electrical and mechanical maintenance.
Native thermal detail
The 160 × 120 detector resolution is distinct from the enhanced image output.
TECHNICAL REFERENCE
EX10 Pro specifications
Manufacturer reference specifications. Options and supplied configuration are identified in your quotation.
| Infrared Resolution | 160×120 |
|---|---|
| Spectral Band | 8-14μm |
| NETD | 40mK |
| Frame Rate | 25 Hz |
| Lens Focal Length | 2.6mm |
| FOV | 40°×30° |
| Focusing Mode | Fixed focus |
| IFOV | 4.62 mrad |
| Minimum Imaging Distance | 11cm |
| Measurement Range | -20~150℃; 100~550℃; auto switching |
|---|---|
| Measurement Accuracy | ±2°C or ±2% of readings (whichever is greater) |
| Temperature Width Stretch | Automatic/Manual |
| Measurement Unit | Celsius degree, Fahrenheit degree, Kelvin |
| Temperature Alarm | Supports (high and low temperature alarms) |
| Display | 2.8-inch; 240×320 resolution |
|---|---|
| Image Mode | Infrared, visible light, PIP, fusion |
| Storage Medium | 8GB Internal Memory |
| Image File Format | JPEG |
| Communication Interface | USB2.0 |
| Visible Light Camera | 2 megapixels |
| Palettes | 9 options |
| Video Recording | Standard MP4 video recording |
| Video Resolution | 240×320 |
| Operating Temperature | -20°C~ 50°C |
|---|---|
| Ingress Protection Rating | IP54 |
| Weight and Dimensions | 265g±10g (including battery), 206.9×67×81.5mm |
| Battery | 2750mAh lithium-ion battery |
| Battery Life | ≥10 hours |
| Storage Temperature | -40°C~ 70°C |
TECHNICAL DOCUMENTS
Downloads & selection resources
PLAN THE CONFIGURATION
Specify EX10 Pro for your project
Tell us the target size, working distance and temperature range. Lens, software and accessories are confirmed in the quotation. For EX10 and EX10 Pro, confirm the exact connectivity and accessory package; shared series descriptions do not establish every variant difference.
Include in your inquiry
Inspection task, target size, working distance, temperature range and required lenses or analysis software.
Company, destination country, estimated quantity and target procurement date.
Request a EX10 Pro quote ↗Questions about EX10 Pro
How should I select a handheld inspection camera?
Start with the target size, working distance and temperature range. Choose optics and analysis tools for the inspection task, and identify any high-temperature option separately.
Which documents are available for EX10 Pro?
Use the model-specific resources above for available brochures and the Phoebus Link selection brief. Ask for a current datasheet covering the exact lens, interface and options you intend to order.
Who handles my quotation and order?
Phoebus Link is your contact for product selection, quotations and order coordination. The equipment brand and full model are identified in the written quotation.
How are delivery, warranty and returns confirmed?
For B2B purchases, delivery timing, warranty duration, return or exchange conditions and related costs are confirmed in writing for each order. Obtain after-sales approval before returning equipment.
