Separate camera and screen
Position the camera at the inspection point while viewing the thermal image on a supported mobile device.
Raythink · Wireless thermography

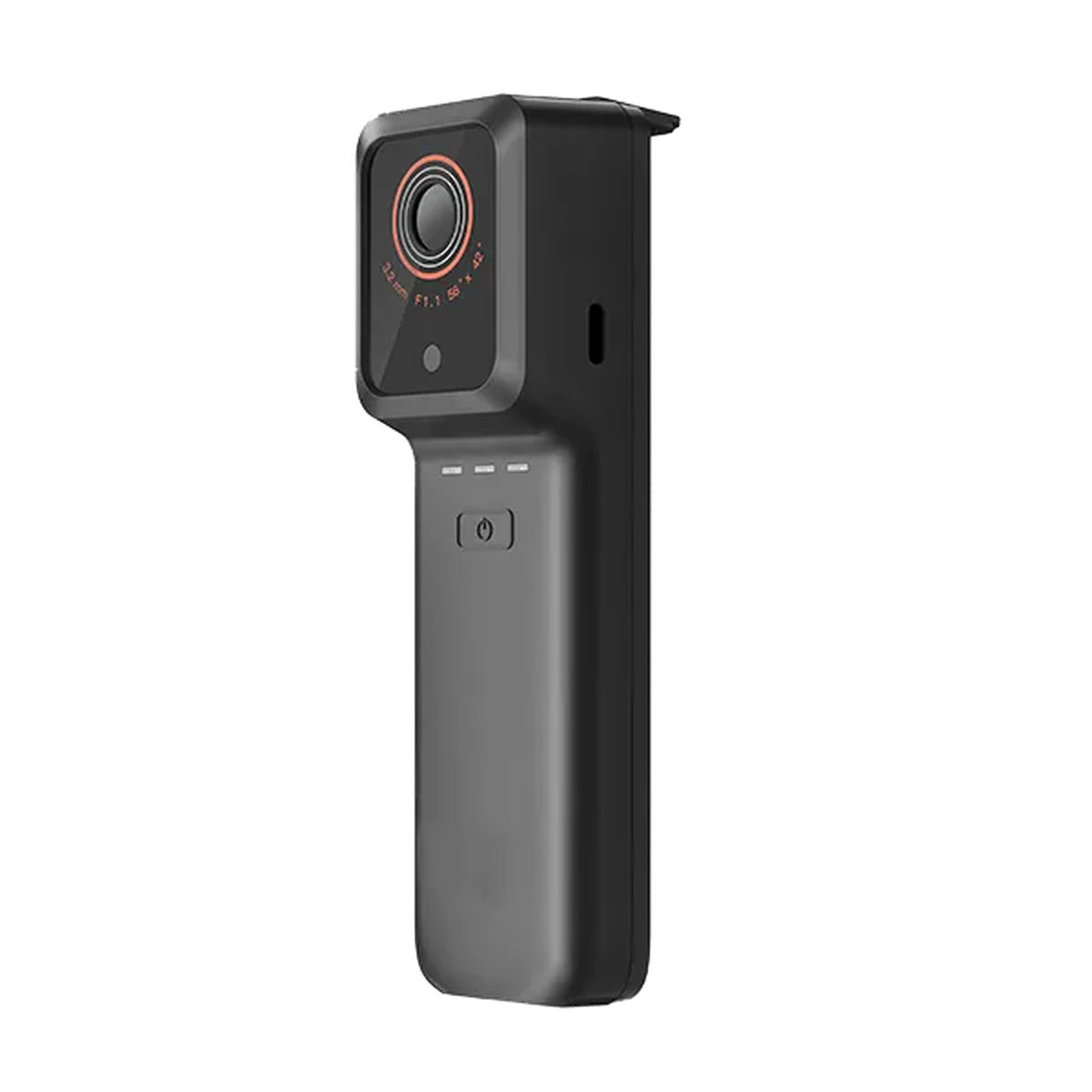

IX2 AIR
Wireless Thermal Camera for Smart Devices
IX2 AIR pairs a native 256 × 192 thermal detector with a wireless mobile viewing workflow for flexible equipment inspection.
Confirm the configuration, availability and supply terms in your quotation.
- Infrared Resolution
- 256×192
- Frame Rate
- 25 Hz
- Measurement Range
- -20°C~+150°C, 100°C~550°C
- Spectral Band
- 7.5-14μm
Application & capabilities
Thermal inspection through a mobile device

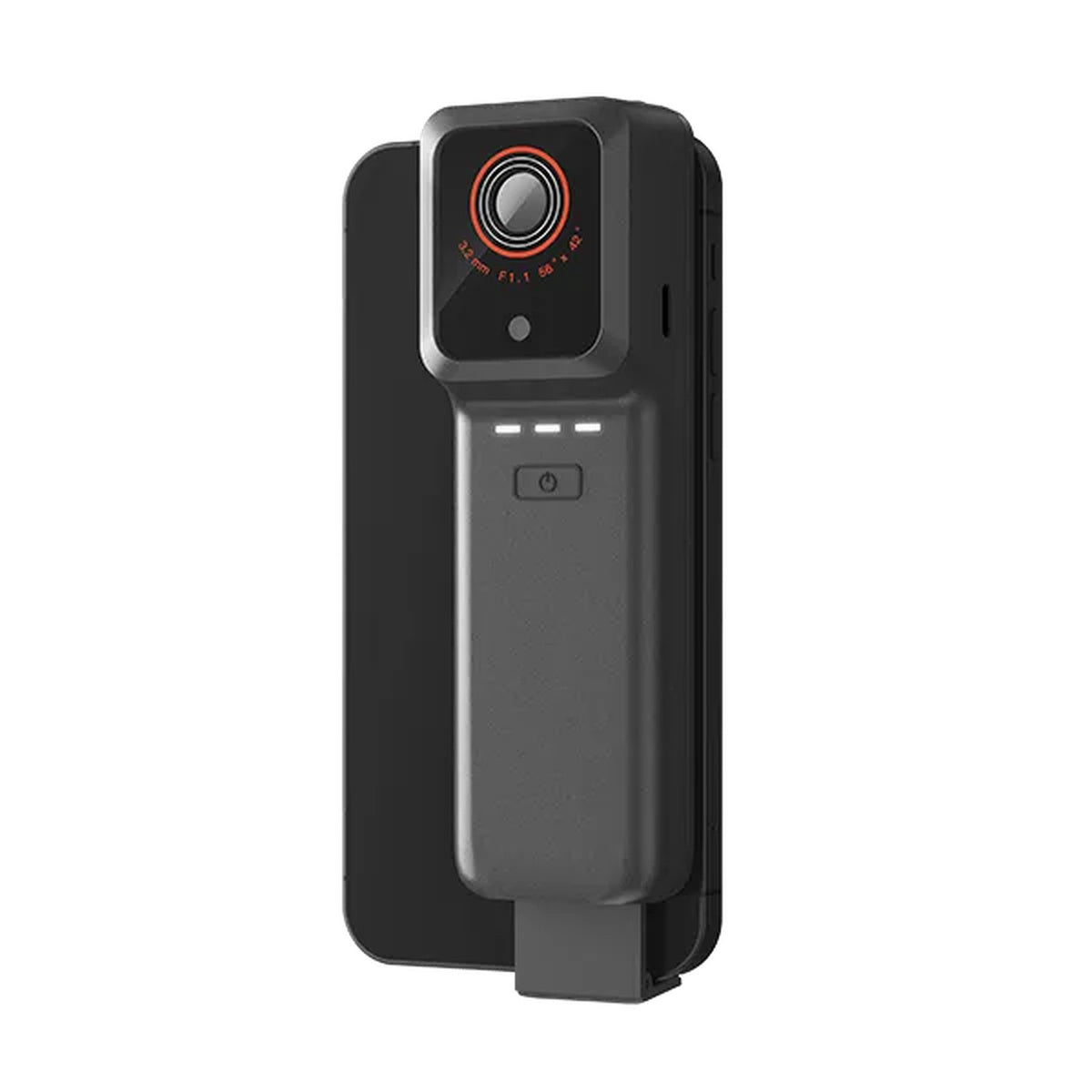

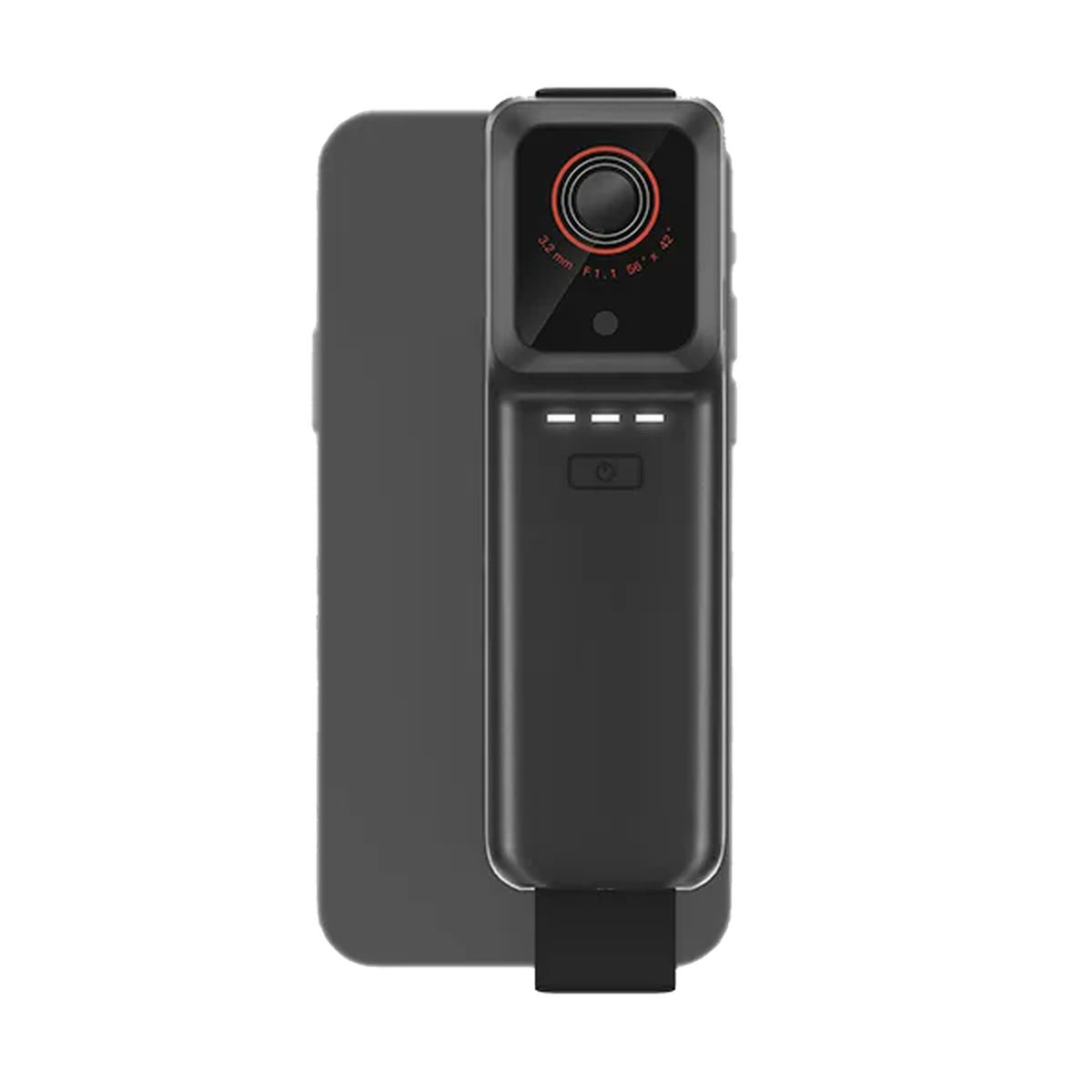

Flexible placement
Clip and threaded mounting options support different inspection positions.
Technical specifications
| Detector Type | Uncooled infrared detector |
|---|---|
| Infrared Resolution | 256×192 |
| Spectral Band | 7.5-14μm |
| NETD | ＜40mK (25°C,F1.0) |
| Frame Rate | 25 Hz |
| Lens Focal Length | 3.2mm |
| FOV | 56°×42° |
| Focusing Mode | Fixed focus |
| Measurement Range | -20°C~+150°C, 100°C~550°C |
| Measurement Accuracy | ±2ºC or ±2% of readings, whichever is greater |
| Image Mode | Infrared, visible, PlP, blending, detail enhancement |
| Operating Temperature | -10°C~+50°C |
| Ingress Protection Rating | IP54 |
| Weight and Dimensions | 132g |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
Documents
Prepared by Phoebus Link
Your IX2 AIR selection brief.
Share the model overview, key specifications and procurement questions with your team.
PDF · 2 pages · Product brand: Raythink · Enquiries: Phoebus Link
Manufacturer technical references
Original Raythink documents are provided for technical verification. For pricing, configuration and order support, contact Phoebus Link.
IX2 AIR product brochurePDF · Manufacturer documentDiscuss your project
