Thermal and visible verification
Use complementary channels to assess the monitored scene.
Raythink · Dual-spectrum PTZ monitoring

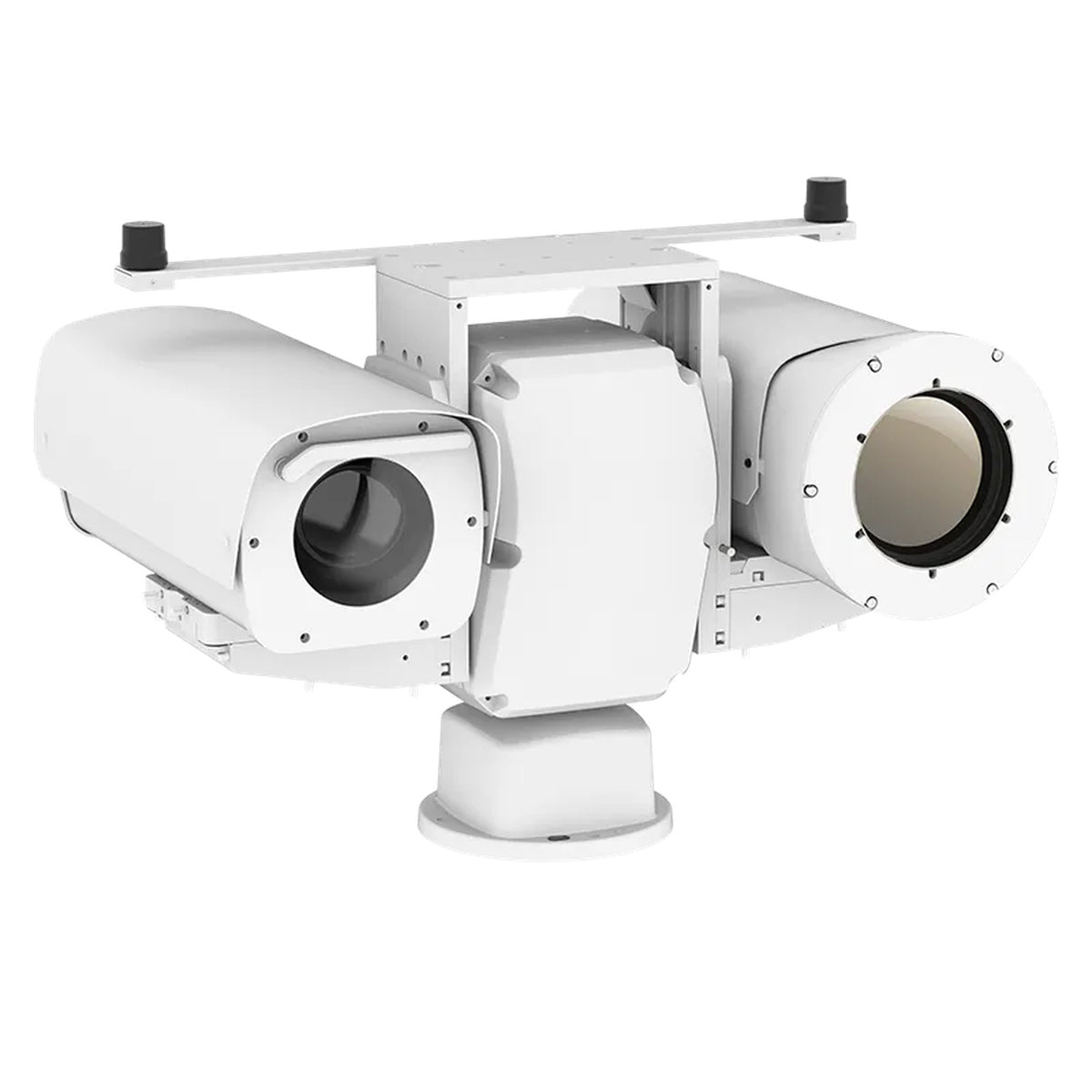

PC6F4A1
Dual-Spectrum PTZ Camera
PC6F4A1 provides thermal and visible site observation on a PTZ platform for perimeter and fire monitoring.
Confirm the configuration, availability and supply terms in your quotation.
- Detector Type
- Uncooled VOx infrared detector
- Pixel Pitch
- 8μm
- NETD
- ≤40mK(@25°C, F#1.0, 25 Hz)
Application & capabilities
Configurable PTZ observation for larger sites
8 μm pixel pitch
The PC6F4A1 reference specifies an 8 μm pixel pitch. Confirm resolution and optics separately rather than inferring them from pixel pitch.
Technical specifications
| Detector Type | Uncooled VOx infrared detector |
|---|---|
| NETD | ≤40mK(@25°C, F#1.0, 25 Hz) |
| Pixel Pitch | 8μm |
| Power Consumption | Max.270W |
| Weight | 80kg |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
Documents
Prepared by Phoebus Link
Your PC6F4A1 selection brief.
Share the model overview, key specifications and procurement questions with your team.
PDF · 2 pages · Product brand: Raythink · Enquiries: Phoebus Link
Manufacturer technical references
Original Raythink documents are provided for technical verification. For pricing, configuration and order support, contact Phoebus Link.
PC6F4A1 product brochurePDF · Manufacturer documentDiscuss your project
