Reposition the view
Use pan, tilt and presets to inspect selected areas from one installation.
Raythink · Dual-spectrum PTZ temperature monitoring

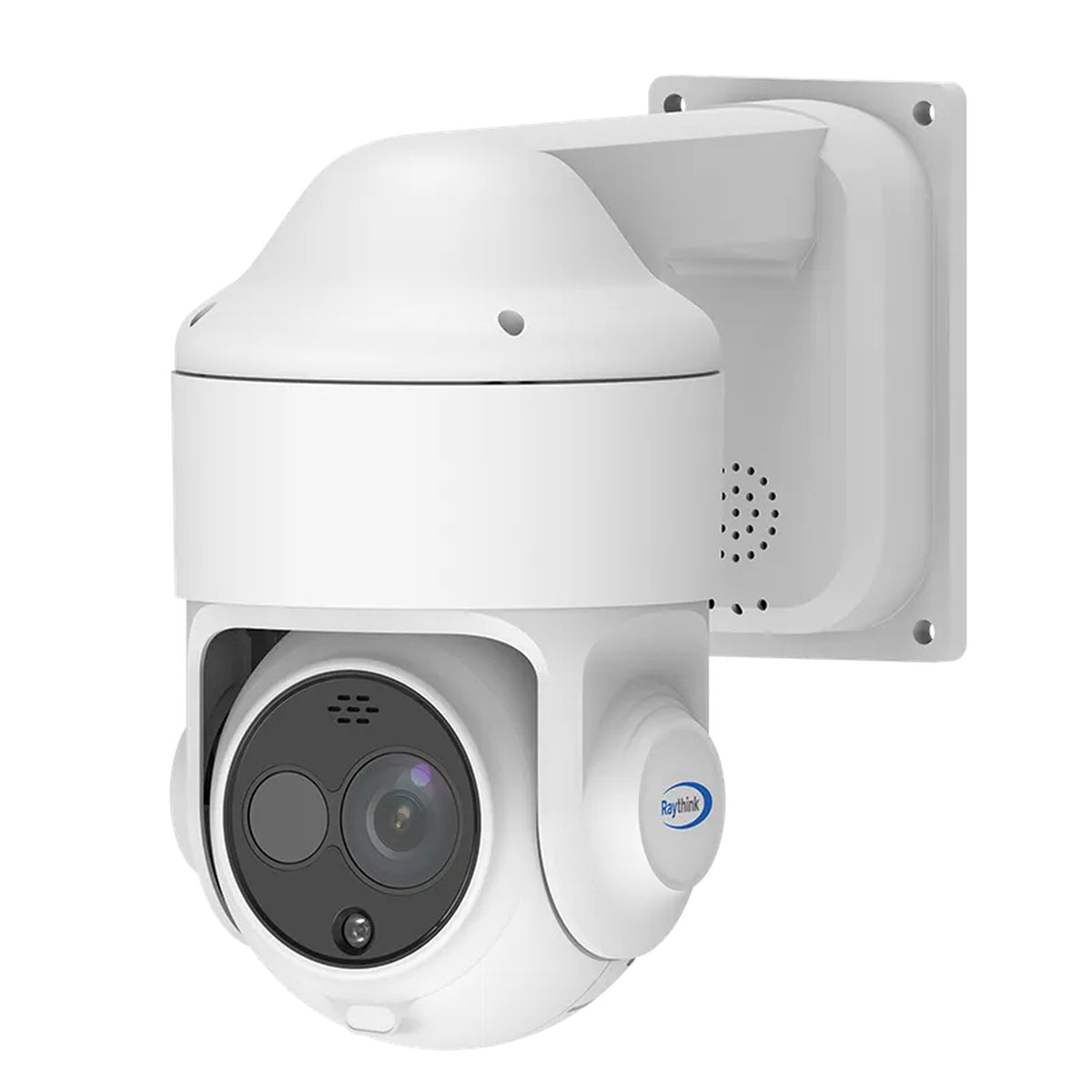

PD225T
Dual-Spectrum Speed Dome Camera
PD225T combines thermal and visible imaging with motorized positioning and temperature-analysis functions.
Confirm the configuration, availability and supply terms in your quotation.
- Detector Type
- VOx, uncooled FPA detectors
- Pixel Pitch
- 12μm
- NETD
- ≤40mK(@25°C, F#1.0, 25 Hz)
Application & capabilities
Direct thermal and visible views around the installation
Temperature and event analysis
Configure the documented measurement and intrusion functions for the monitored areas.
Technical specifications
| Detector Type | VOx, uncooled FPA detectors |
|---|---|
| NETD | ≤40mK(@25°C, F#1.0, 25 Hz) |
| Pixel Pitch | 12μm |
| Power Consumption | ≤20W |
| Weight | ≤2.5kg |
| Temperature Range | -20℃~+550℃ |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
Documents
Prepared by Phoebus Link
Your PD225T selection brief.
Share the model overview, key specifications and procurement questions with your team.
PDF · 2 pages · Product brand: Raythink · Enquiries: Phoebus Link
Manufacturer technical references
Original Raythink documents are provided for technical verification. For pricing, configuration and order support, contact Phoebus Link.
PD225T product brochurePDF · Manufacturer documentDiscuss your project
