Integration component
Develop the component into a handheld, PTZ or other inspection system with the required optics and electronics.
Raythink · Cooled gas-imaging component

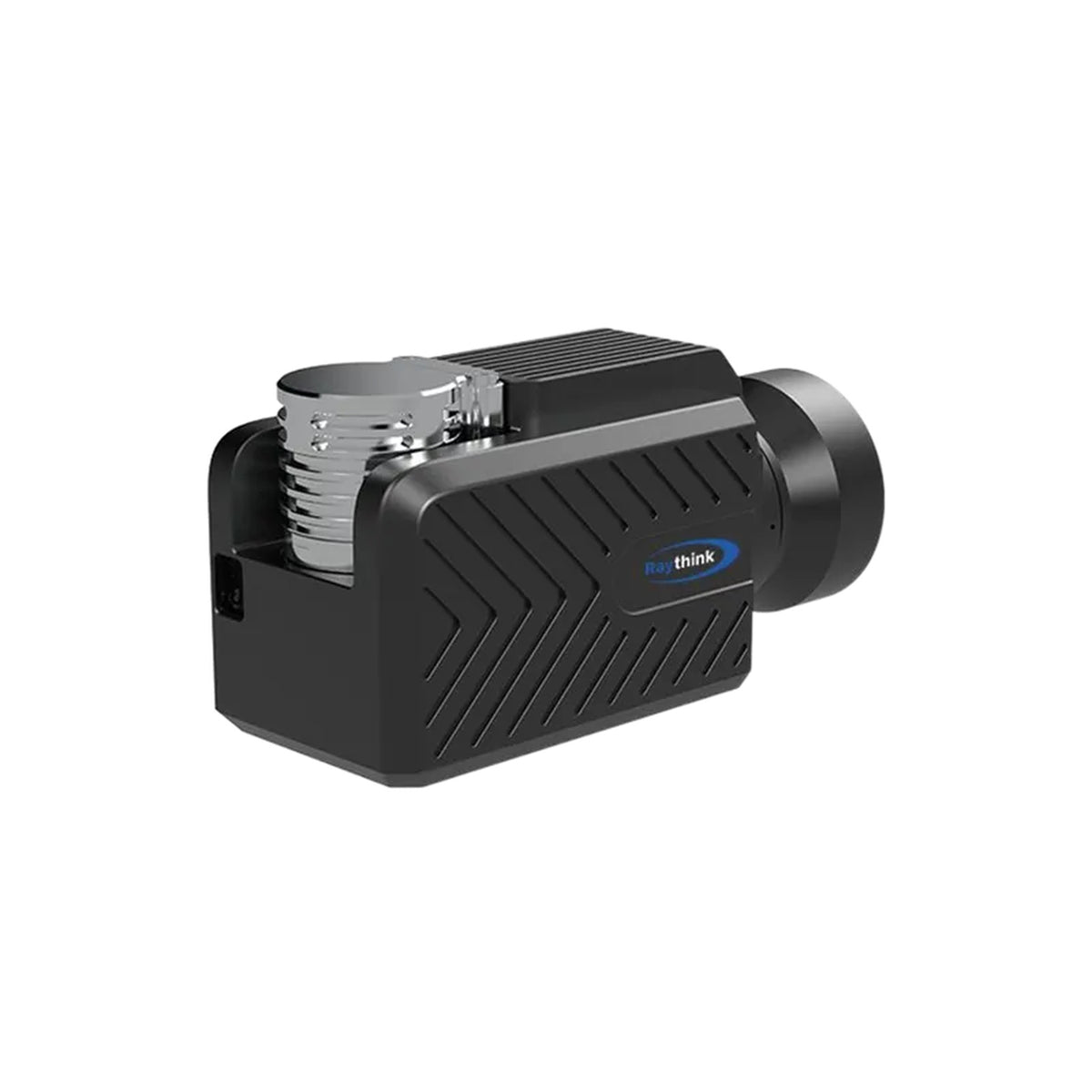

Photon C330B
Cooled VOCs Gas Detection Thermal Camera
Photon C330B is a 320 × 256 cooled gas-imaging component designed for integration into VOC inspection equipment around the 3.3 μm band.
Confirm the configuration, availability and supply terms in your quotation.
- Inspection format
- OEM component for system integration
- Spectral response
- 3.2±0.2 to 3.4±0.2 μm (manufacturer specification)
- Resolution
- 320×256
- Frame Rate
- 25 Hz
Application & capabilities
A cooled imaging core for VOC inspection systems
Gas-specific optical design
Choose the lens, spectral response and system configuration for the target VOC rather than assuming coverage of every organic gas.
Gas-imaging configuration
Match the camera to the target gas.
- Inspection format
- OEM component for system integration
- Gas coverage
- VOC-oriented imaging around 3.3 μm. Confirm the exact target compound and system response.
- Spectral response
- 3.2±0.2 to 3.4±0.2 μm (manufacturer specification)
This is a cooled imaging component. A complete gas-inspection system requires compatible optics, electronics, software and application validation.
Technical specifications
| Detector Type | Cooled Infrared Detector |
|---|---|
| Resolution | 320×256 |
| Frame Rate | 25 Hz |
| Pixel Pitch | 30μm |
| Spectral Band | 3.2±0.2~3.4±0.2μm |
| NETD | ≤10mK@25°C |
| Operating Temperature | -20°C~+50°C |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
