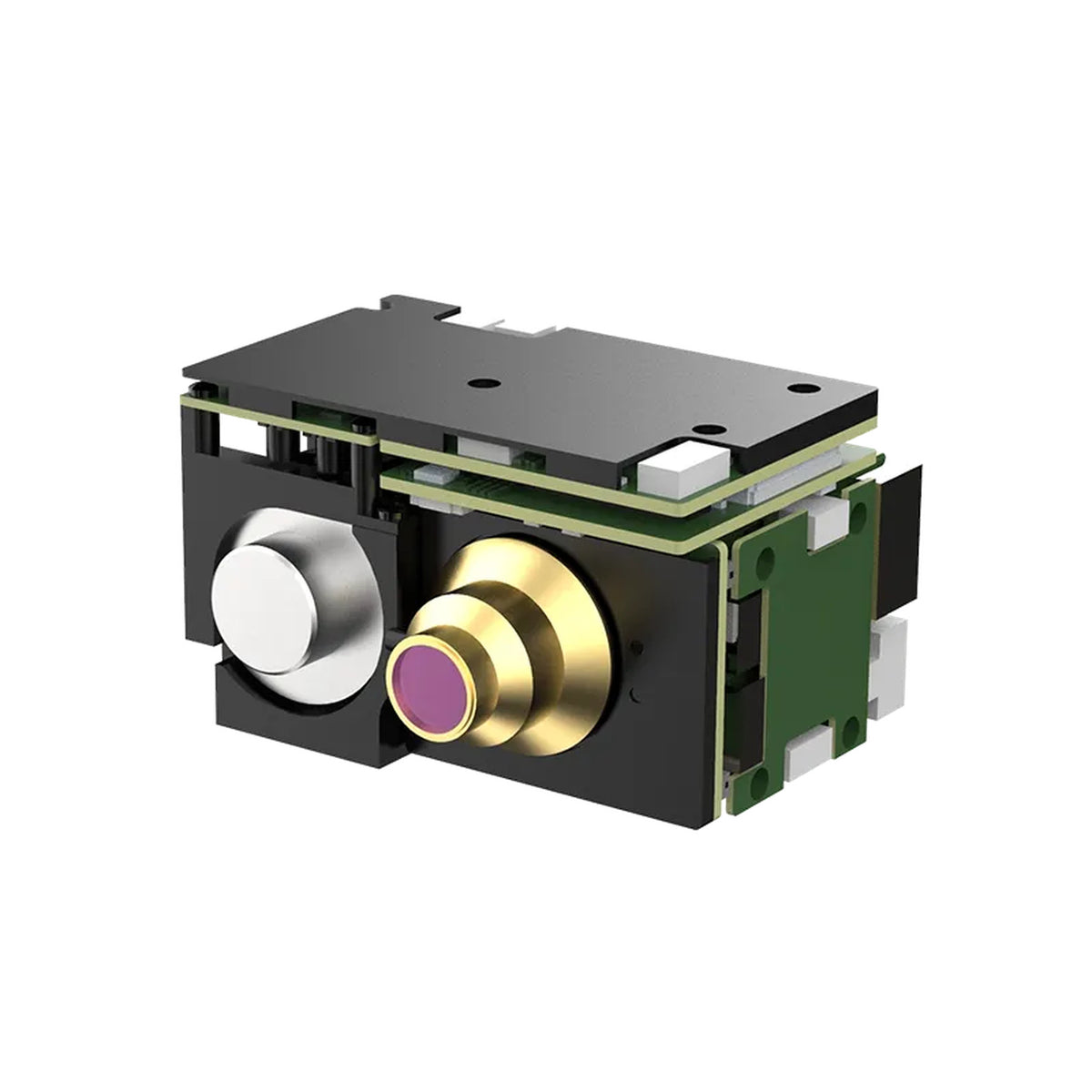

Photon H615
Medium-Wave HOT Cooled Infrared Module
Photon H615 uses a cooled T2SL detector and a compact module format for thermal systems with size, weight and power constraints.
Confirm the configuration, availability and supply terms in your quotation.
- Resolution
- 640×512
- Spectral Band
- 3.7～4.8μm
- NETD
- ≤20mK@F4.0，25℃/≤25mK@F5.5，25℃
- Pixel Pitch
- 15μm
Application & capabilities
A compact cooled core for integrated imaging systems
Plan cooling and power
Include start-up cooling requirements and steady-state power in the host-system design.
Technical specifications
| Detector Type | T2SL Cooled Infrared FPA |
|---|---|
| Resolution | 640×512 |
| Pixel Pitch | 15μm |
| Spectral Band | 3.7～4.8μm |
| NETD | ≤20mK@F4.0，25℃/≤25mK@F5.5，25℃ |
| Operating Temperature | -40°C~ +70°C |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
