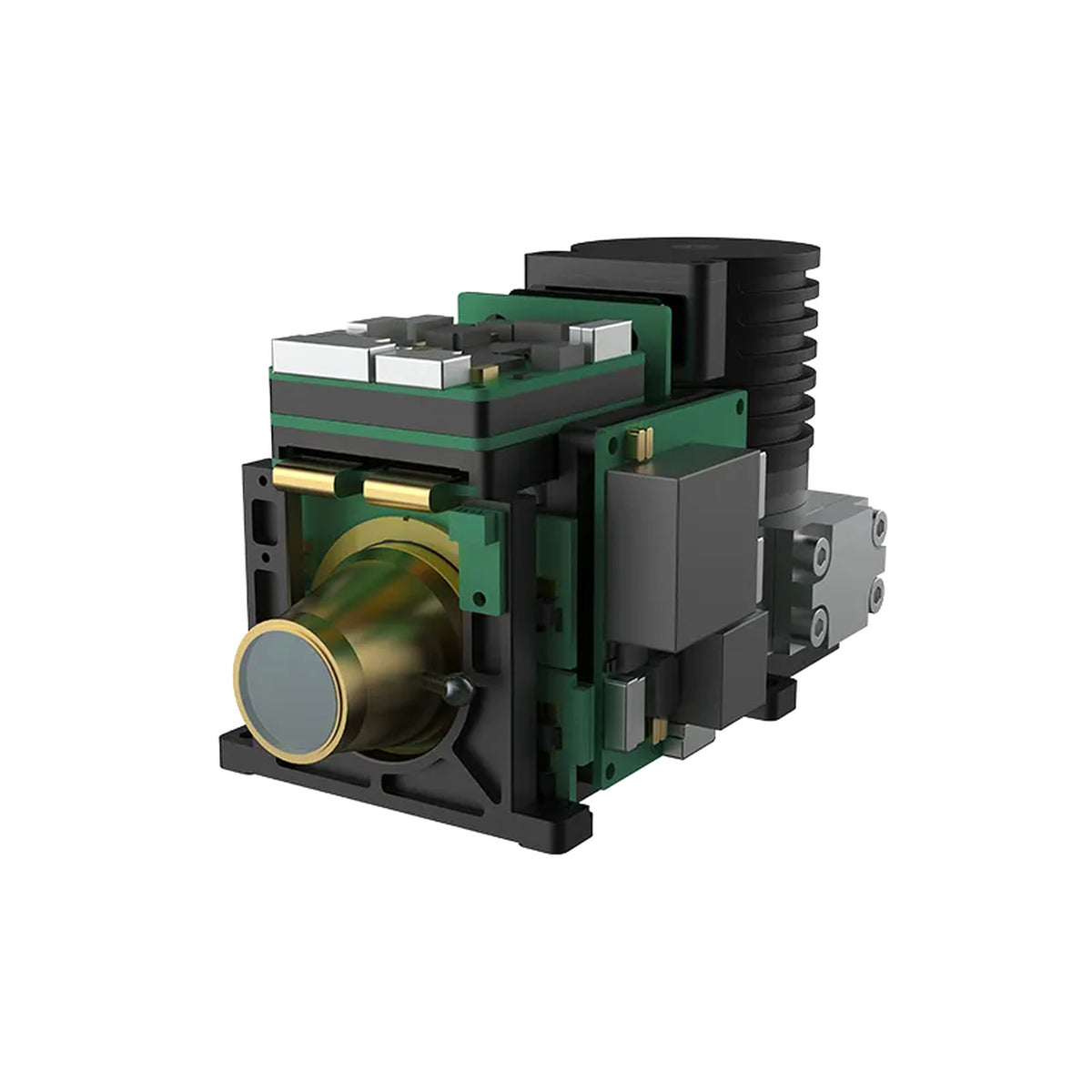

Manufacturer product imagery. Supplied optics, interfaces and accessories depend on the selected configuration.
Cooled MWIR module
Photon M615S Medium-Wave Cooled Infrared Module
Photon M615S combines a 640 × 512 cooled HgCdTe detector with a mid-wave spectral response for thermal imaging system integration.
- Resolution
- 640×512
- Frame Rate
- 100 Hz/50 Hz/30 Hz
- Spectral Band
- 3.7±0.2μm～4.8±0.2μm
- NETD
- ≤15mK@25℃
Raythink equipment · Selection and procurement through Phoebus Link.
For distributors and business buyers. Configuration, pricing and delivery are confirmed in a written quotation.
WHAT THIS MODEL DOES
Integrate a cooled mid-wave thermal channel
Cooled MWIR imaging
Select compatible optics for the specified mid-wave detector band.
Host interface and frame rate
Confirm the video interface, supported frame rate and SDK workflow for the host system.
TECHNICAL REFERENCE
Photon M615S specifications
Manufacturer reference specifications. Options and supplied configuration are identified in your quotation.
| Detector Type | HgCdTe cooled infrared detector |
|---|---|
| Resolution | 640×512 |
| Frame Rate | 100 Hz/50 Hz/30 Hz |
| Pixel Pitch | 15μm |
| Spectral Band | 3.7±0.2μm～4.8±0.2μm |
| NETD | ≤15mK@25℃ |
| Detector Defective Pixel Rate | ≤0.5% |
| Digital Zoom | 1.0~8.0 continuous zoom (step size:0.1) |
| Dimensions (Without lens) | ≤ 870g (with isolation) |
| Weight (Without lens) | 144×75×81mm (±1) (with isolation) |
| Temperature Shock | -45℃~+65℃（≤5℃/min） |
|---|
| Image Processing | Non-uniformity correction, digital filter noise reduction, digital detail enhancement |
|---|
| Operating Temperature | -40℃～+60℃ |
|---|---|
| Cooling Time@25°C | ≤7min |
| Power Supply Range | 27~36V DC (with isolation), typical voltage of 28V DC |
| Power Consumption (Typical, @25°C) | Steady status ≤16W, peak ≤35W |
| Storage Temperature | -45℃～+65℃ |
| Storage Life | 10 years |
TECHNICAL DOCUMENTS
Downloads & selection resources
PLAN THE CONFIGURATION
Specify Photon M615S for your project
Specify the lens, output format, acquisition rate, cooling arrangement and power budget. M615L and M615S have different listed frame-rate options.
Include in your inquiry
Spectral band, lens, frame rate, cooling requirements, power budget and output interface.
Company, destination country, estimated quantity and target procurement date.
Request a Photon M615S quote ↗Questions about Photon M615S
What should an integrator specify?
Provide the spectral band, optical requirements, host interface, power budget and mechanical envelope. Confirm the detector and cooling configuration before starting mechanical or electrical design.
Which documents are available for Photon M615S?
Use the model-specific resources above for available brochures and the Phoebus Link selection brief. Ask for a current datasheet covering the exact lens, interface and options you intend to order.
Who handles my quotation and order?
Phoebus Link is your contact for product selection, quotations and order coordination. The equipment brand and full model are identified in the written quotation.
How are delivery, warranty and returns confirmed?
For B2B purchases, delivery timing, warranty duration, return or exchange conditions and related costs are confirmed in writing for each order. Obtain after-sales approval before returning equipment.
