Payload configuration
The series includes cooled and uncooled thermal configurations. Select the detector and optics for the project.
Raythink · Multi-spectrum positioning system

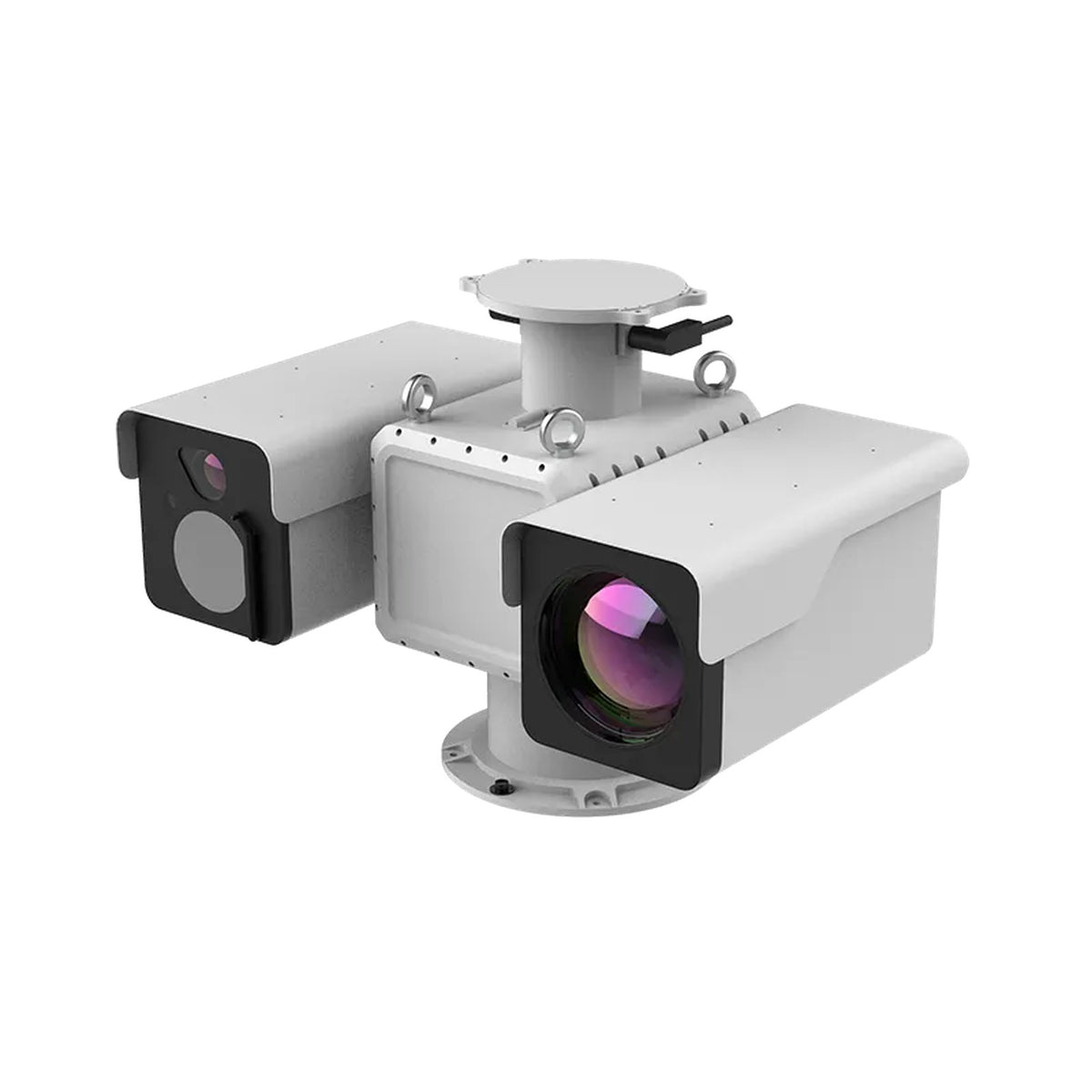

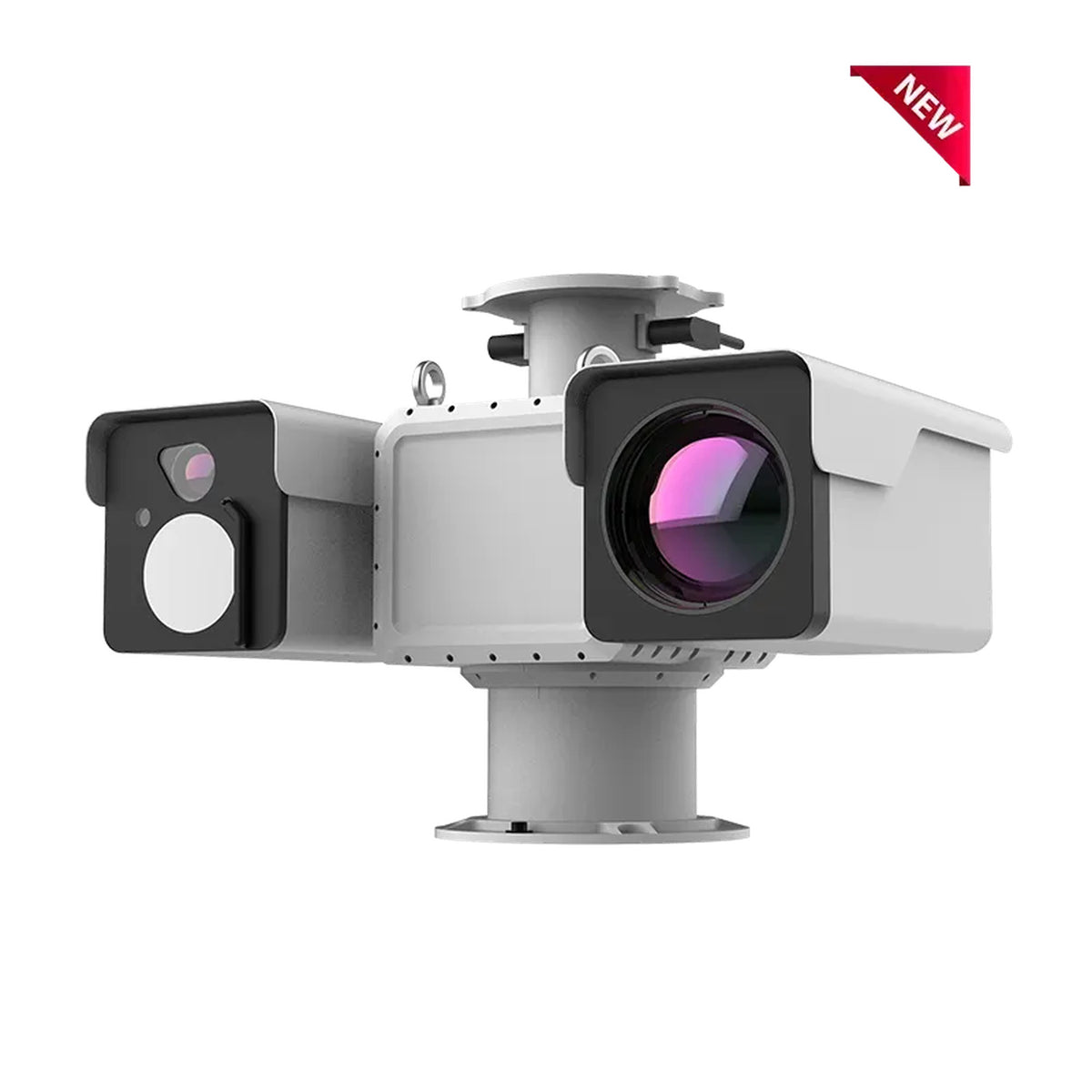

PM6
Series Multi-spectrum Positioning System
PM6 is a multi-spectrum positioning platform with configurable imaging payloads for site monitoring.
Confirm the configuration, availability and supply terms in your quotation.
- Detector Type
- Uncooled VOx infrared detector, T2SL cooled infrared detector
- Pixel Pitch
- 12μm, 15μm
- NETD
- ≤40mK@F1.0, ≤20mK@F4.0
Application & capabilities
Configure the imaging payload for the site
Coordinated observation
The positioning platform combines complementary imaging channels for scene assessment.
Technical specifications
| Detector Type | Uncooled VOx infrared detector, T2SL cooled infrared detector |
|---|---|
| NETD | ≤40mK@F1.0, ≤20mK@F4.0 |
| Pixel Pitch | 12μm, 15μm |
| Focus Mode | Auto/Manual/One‑off automatic |
| Power Supply | DC 48V±15% |
| Power Consumption | Max. 500W |
| Weight | 85kg |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
Documents
Prepared by Phoebus Link
Your PM6 selection brief.
Share the model overview, key specifications and procurement questions with your team.
PDF · 2 pages · Product brand: Raythink · Enquiries: Phoebus Link
Manufacturer technical references
Original Raythink documents are provided for technical verification. For pricing, configuration and order support, contact Phoebus Link.
PM6 product brochurePDF · Manufacturer documentDiscuss your project
