Visual gas inspection
Gas-cloud coloring and image-enhancement modes support visual examination of the target gas.
Raythink · Handheld optical gas imaging

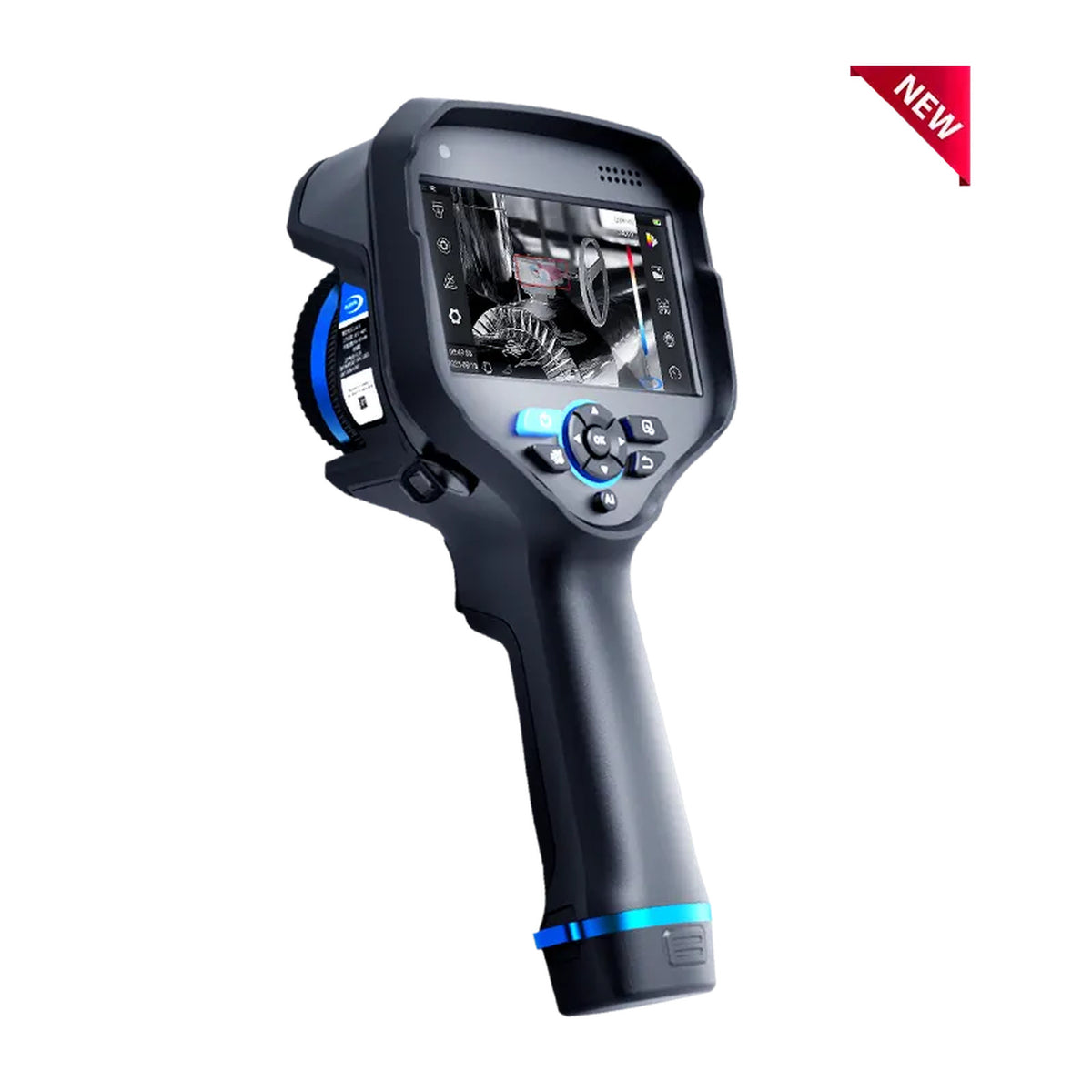

RG630C
OGI Handheld Camera
RG630C combines a 7–8.5 μm gas-imaging band with handheld thermal inspection. Its model-specific gas list includes methane, sulfur dioxide and selected refrigerants.
Confirm the configuration, availability and supply terms in your quotation.
- Inspection format
- Handheld inspection
- Spectral response
- 7–8.5 μm
- Frame Rate
- 25Hz
- Thermal Sensitivity
- 15mK
Application & capabilities
Handheld gas imaging for methane inspection
Thermal inspection on the same device
Temperature analysis and geolocated image records support equipment inspection alongside the gas-imaging workflow.
Gas-imaging configuration
Match the camera to the target gas.
- Inspection format
- Handheld inspection
- Gas coverage
- Methane (CH₄), sulfur dioxide (SO₂), R-134a and R-152a are listed in the manufacturer model table.
- Spectral response
- 7–8.5 μm
The manufacturer lists a concentration function. Confirm supported gases, output units, calibration and validation conditions; no concentration accuracy or leak-rate guarantee is stated here.
Technical specifications
| FOV | 22.9°×18.4° |
|---|---|
| Focusing Mode | Manual |
| Detector Type | Uncooled infrared detector |
| Thermal Sensitivity | 15mK |
| Frame Rate | 25Hz |
| Image Mode | Thermal imaging, PIP, thermal fusion, visible light |
| Storage Medium | SD card, standard 64 GB, maximum expansion 2 TB |
| Image File Format | JPG |
| Operating Temperature | -20°C~55°C |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
