Gas-specific spectral selection
The F model is specified for SF₆, ammonia, ethylene and propylene; its gas list differs from RG630C.
Raythink · Handheld optical gas imaging

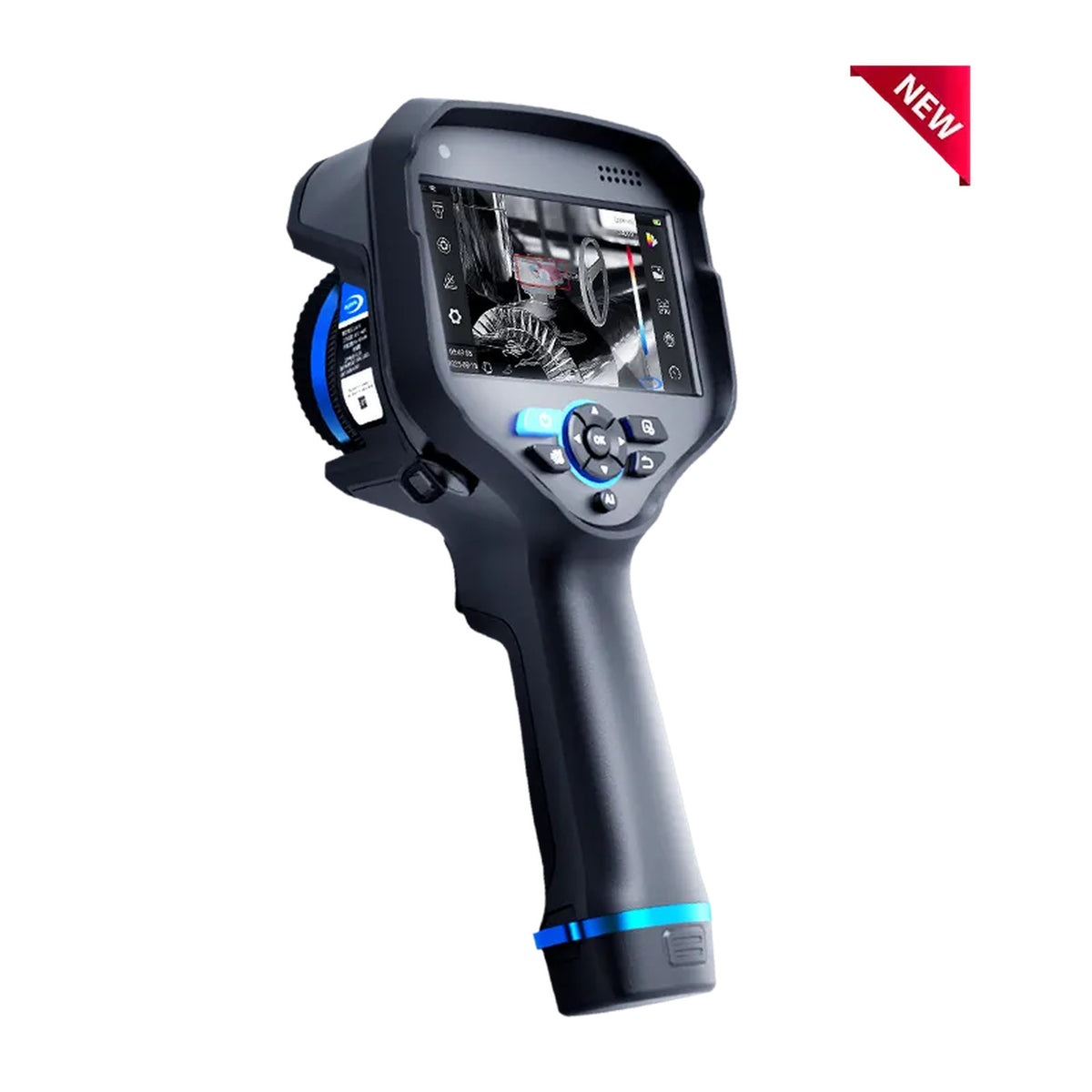

RG630F
OGI Handheld Camera
RG630F uses a 10.3–10.7 μm gas-imaging band. Its model-specific list includes sulfur hexafluoride and ammonia for gas inspection alongside temperature analysis.
Confirm the configuration, availability and supply terms in your quotation.
- Inspection format
- Handheld inspection
- Spectral response
- 10.3–10.7 μm
- Frame Rate
- 25Hz
- Thermal Sensitivity
- 15mK
Application & capabilities
Handheld gas imaging for SF₆ and ammonia inspection
Field inspection records
Gas-cloud coloring, image enhancement and geolocated image records support the inspection workflow.
Gas-imaging configuration
Match the camera to the target gas.
- Inspection format
- Handheld inspection
- Gas coverage
- Sulfur hexafluoride (SF₆), ammonia (NH₃), ethylene and propylene are listed in the manufacturer model table.
- Spectral response
- 10.3–10.7 μm
The listed concentration function requires confirmation of supported gases, units, calibration and validation conditions. Temperature measurement accuracy does not establish gas concentration accuracy.
Technical specifications
| FOV | 22.9°×18.4° |
|---|---|
| Focusing Mode | Manual |
| Detector Type | Uncooled infrared detector |
| Thermal Sensitivity | 15mK |
| Frame Rate | 25Hz |
| Image Mode | Thermal imaging, PIP, thermal fusion, visible light |
| Storage Medium | SD card, standard 64 GB, maximum expansion 2 TB |
| Image File Format | JPG |
| Operating Temperature | -20°C~55°C |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
