Locate temperature extremes
Hot and cold spot tracking helps identify areas for closer investigation.
Raythink · Handheld thermography

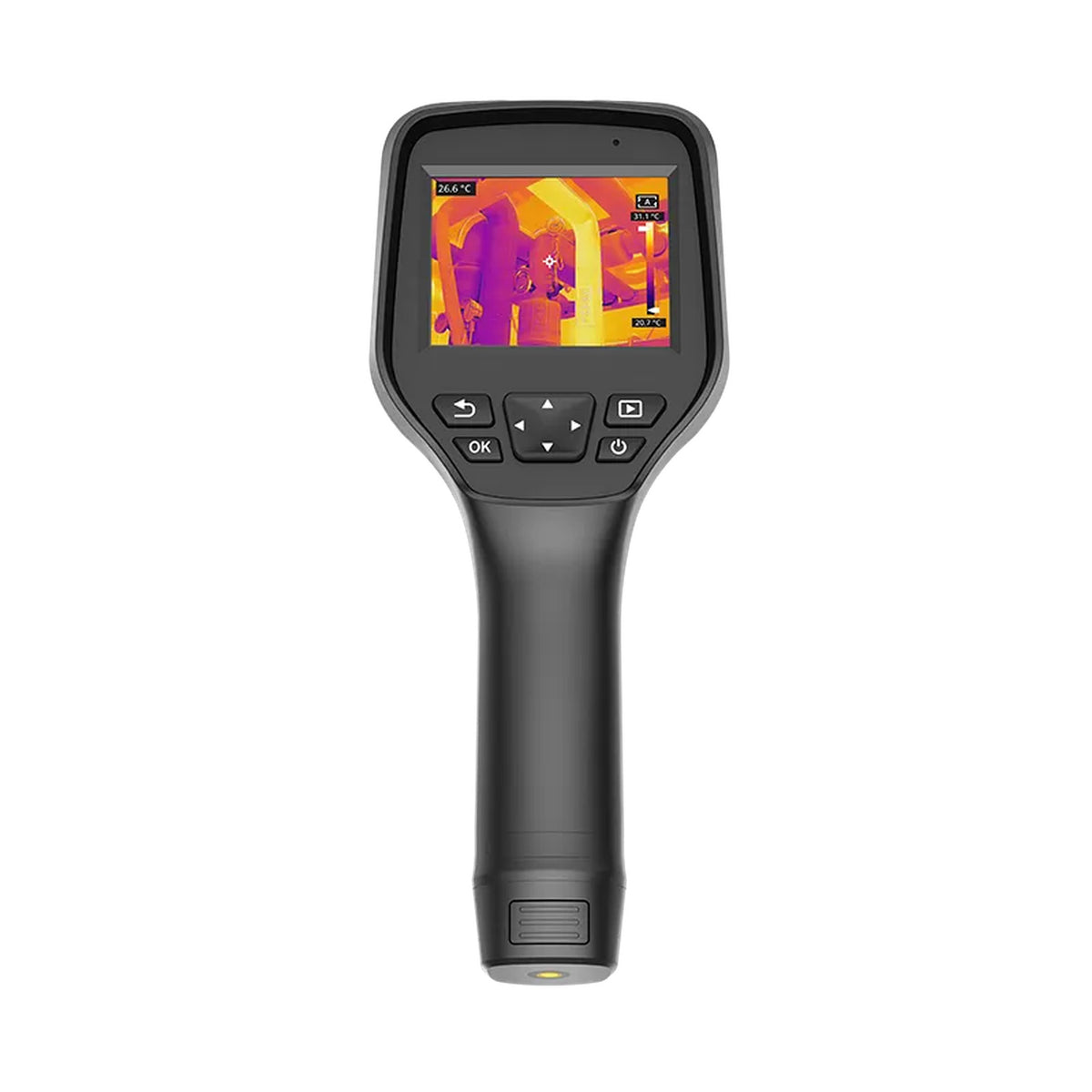

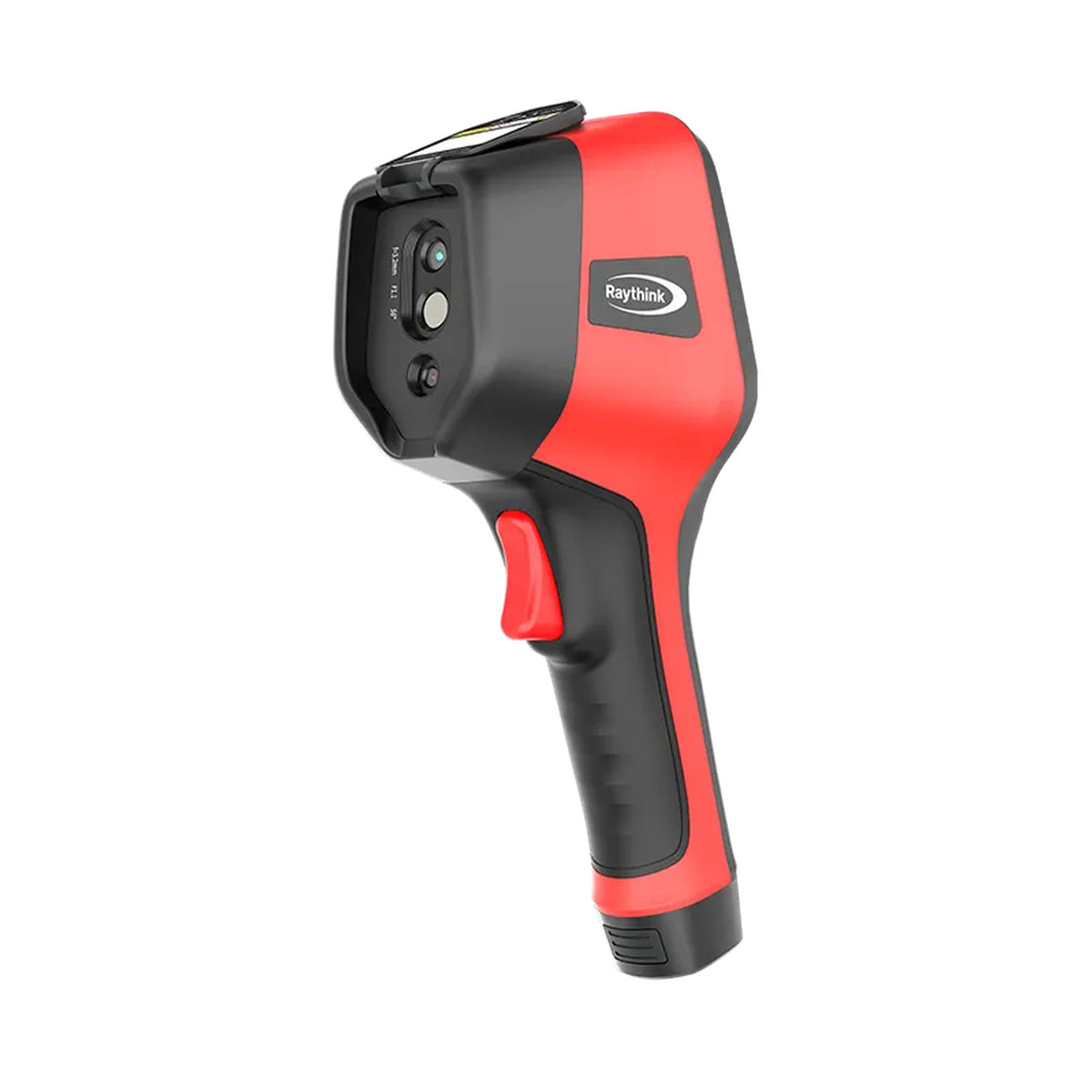

RM200A
Handheld Thermal Camera
RM200A combines a native 256 × 192 detector with a 3.5-inch touchscreen for routine thermal inspections.
Confirm the configuration, availability and supply terms in your quotation.
- Infrared Resolution
- 256×192
- Frame Rate
- 25 Hz
- Measurement Range
- -20°C~+150°C, 100°C~550°C
- Spectral Band
- 7.5-14μm
Application & capabilities
Everyday electrical and equipment inspection
Inspection records
Capture thermal findings and review them with the supported PC analysis workflow.
Technical specifications
| Detector Type | Uncooled infrared detector |
|---|---|
| Infrared Resolution | 256×192 |
| Spectral Band | 7.5-14μm |
| NETD | ＜40mK (25°C,F1.0) |
| Frame Rate | 25 Hz |
| Lens Focal Length | 3.2mm |
| FOV | 56°×42° |
| Focusing Mode | Fixed focus |
| Measurement Range | -20°C~+150°C, 100°C~550°C |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater |
| Display | 3.5-inch touch screen, 640×480 resolution |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion |
| Operating Temperature | -10°C~+50°C |
| Ingress Protection Rating | IP54 |
| Weight and Dimensions | About 635g, 258.4×105.1×102.3mm |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
Documents
Prepared by Phoebus Link
Your RM200A selection brief.
Share the model overview, key specifications and procurement questions with your team.
PDF · 2 pages · Product brand: Raythink · Enquiries: Phoebus Link
Manufacturer technical references
Original Raythink documents are provided for technical verification. For pricing, configuration and order support, contact Phoebus Link.
RM200A product brochurePDF · Manufacturer documentDiscuss your project
