Repeatable inspections
Use task packages to organize recurring inspection work and its image records.
Raythink · Handheld thermography

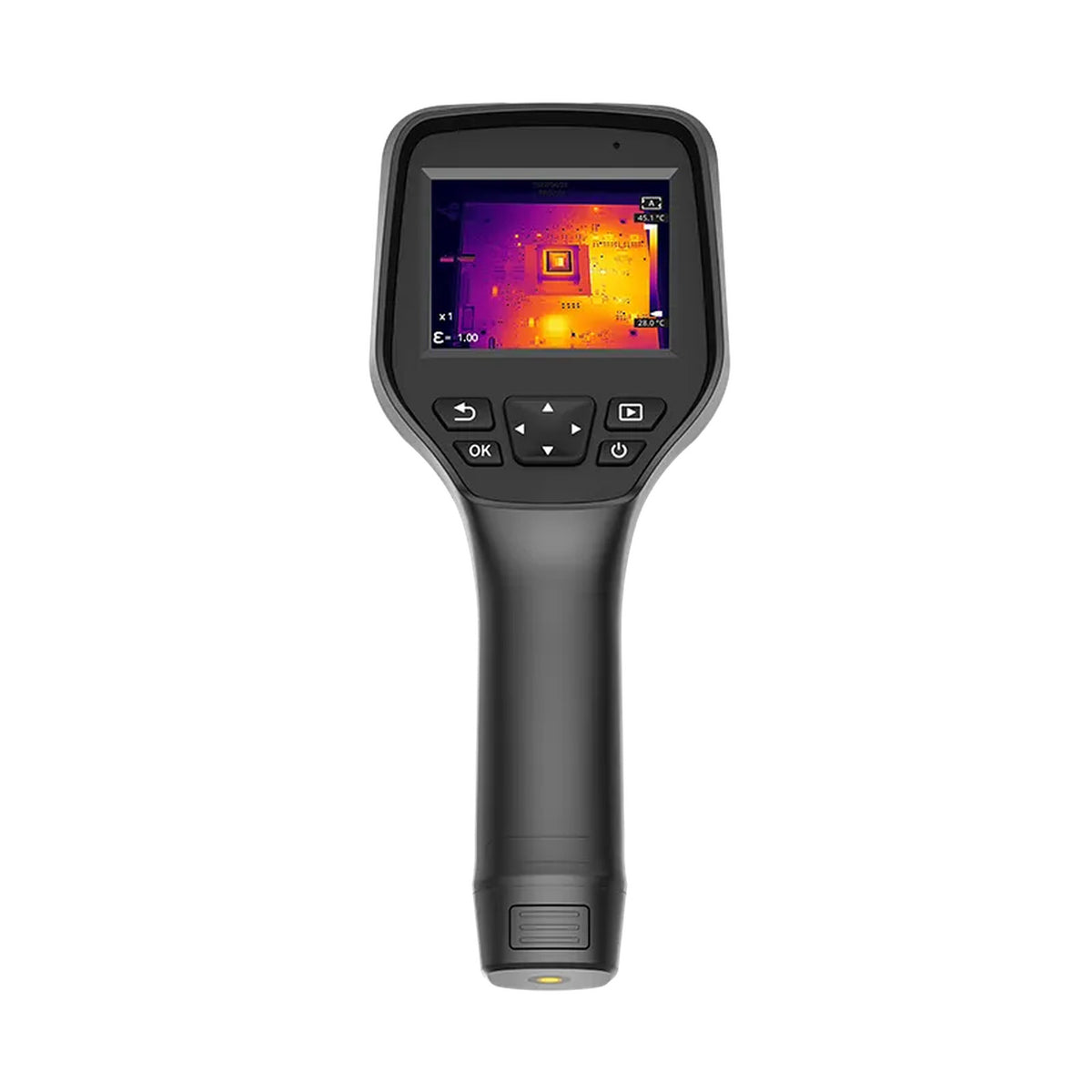

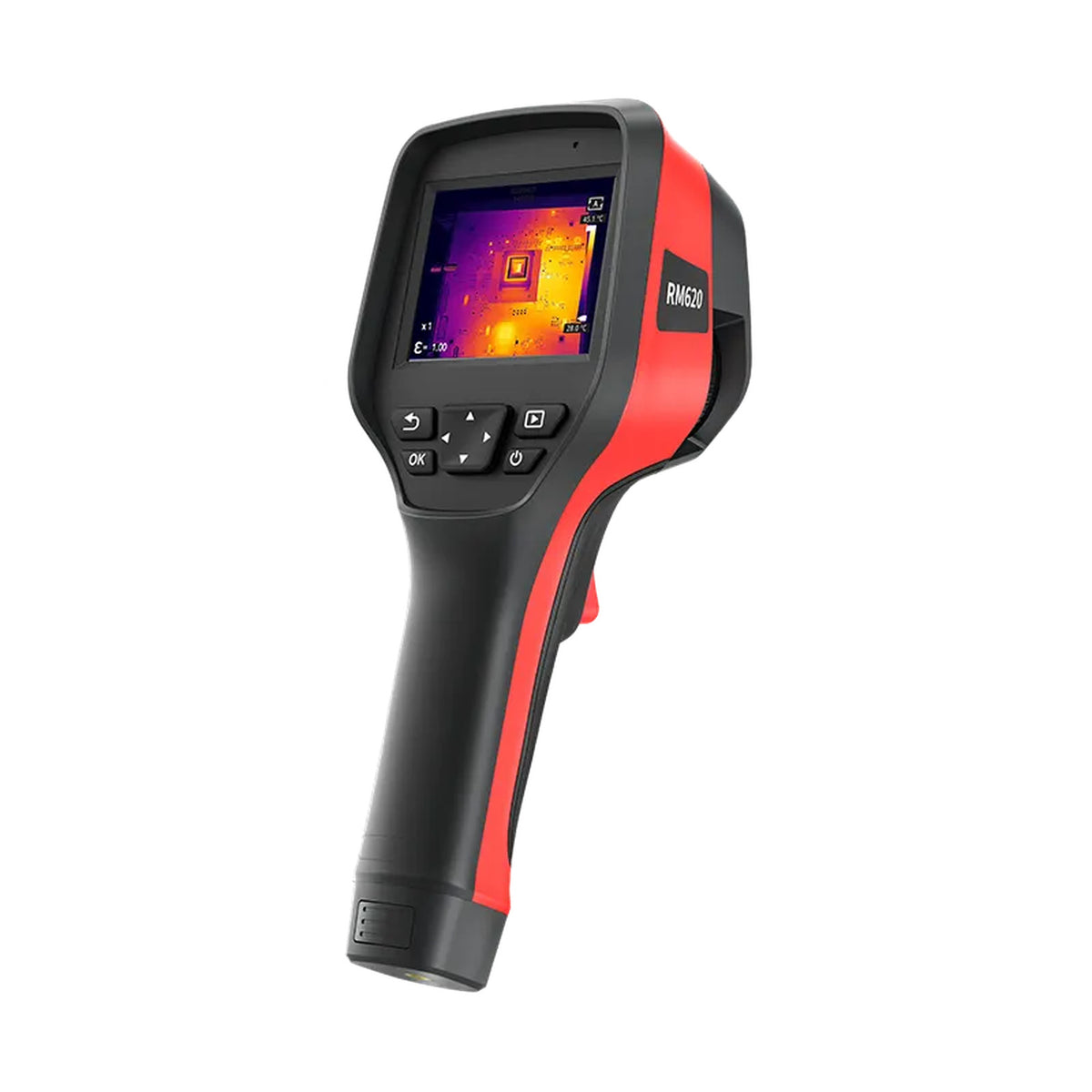

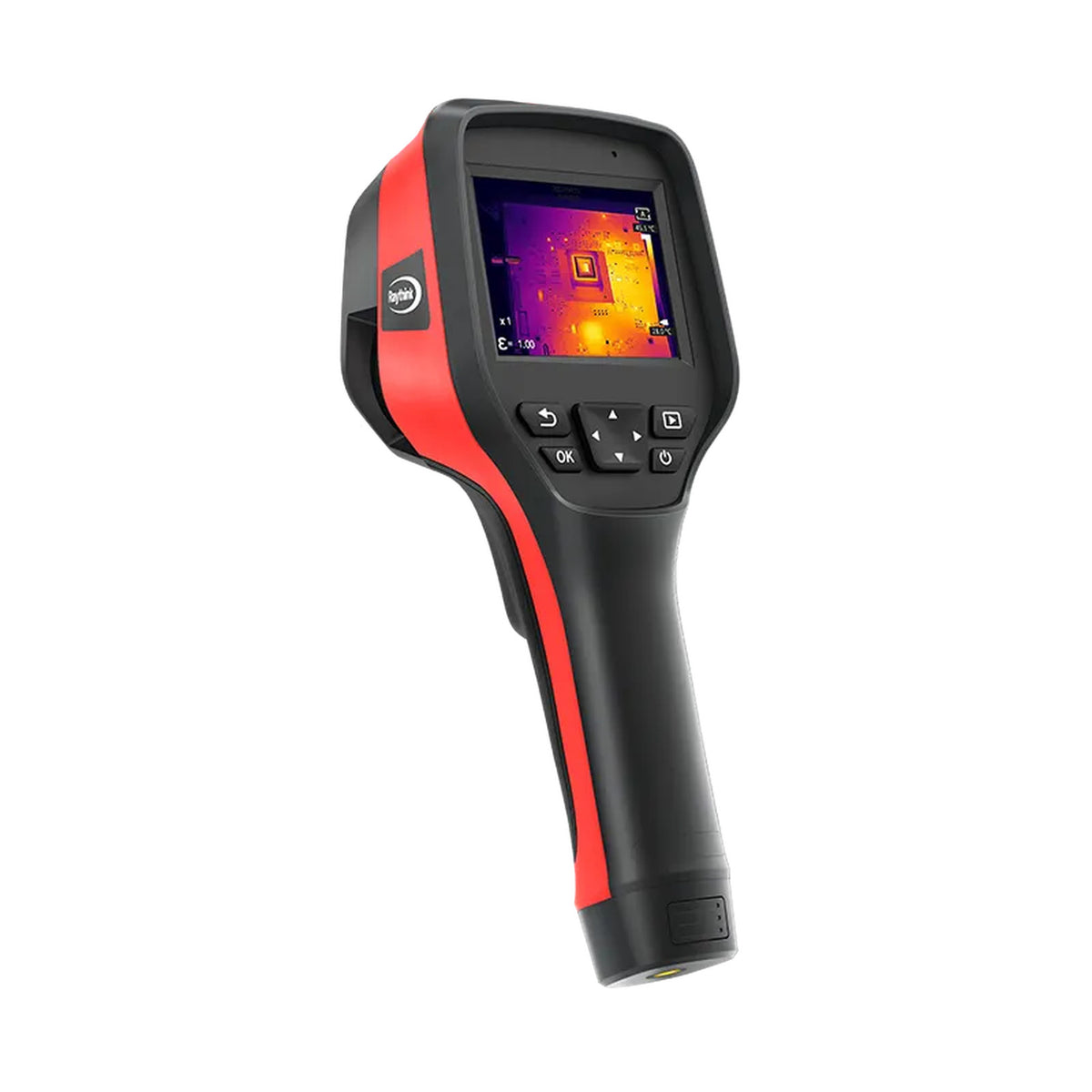

RM620
Handheld Thermal Camera
RM620 supports inspection task packages, temperature-trend analysis and isotherms for repeatable maintenance workflows.
Confirm the configuration, availability and supply terms in your quotation.
- Infrared Resolution
- 640×512
- Frame Rate
- 30 Hz
- Measurement Range
- -20°C~+150°C; 100°C~650°C
- Spectral Band
- 7.5-14μm
Application & capabilities
Structured inspection routes and temperature trends
Analyze thermal behavior
Temperature trends and isotherms help examine changes and areas above or below a selected threshold.

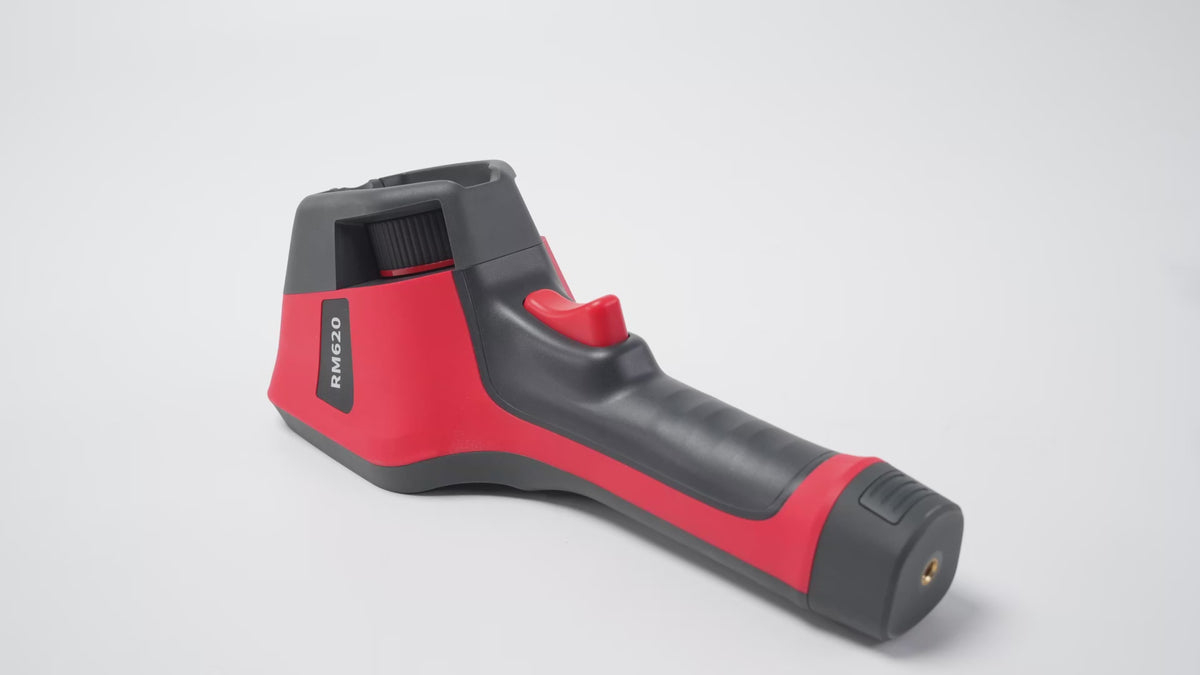

See the equipment
Product demonstration.
Technical specifications
| Detector Type | Uncooled infrared detector |
|---|---|
| Infrared Resolution | 640×512 |
| Spectral Band | 7.5-14μm |
| NETD | ＜35mK (25°C,F1.0) |
| Frame Rate | 30 Hz |
| Lens Focal Length | 19mm |
| FOV | 23°× 18° |
| Focusing Mode | Manual focusing |
| Measurement Range | -20°C~+150°C; 100°C~650°C |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater |
| Display | 3.5-inch touch screen, 640×480 resolution |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion |
| Operating Temperature | -10°C~+50°C |
| Ingress Protection Rating | IP54 |
| Weight and Dimensions | About 680g, 258.4×105.1×102.3mm |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
