Trends and analysis areas
Review temperature changes and define measurement areas instead of relying only on a single spot reading.
Raythink · Advanced handheld thermography

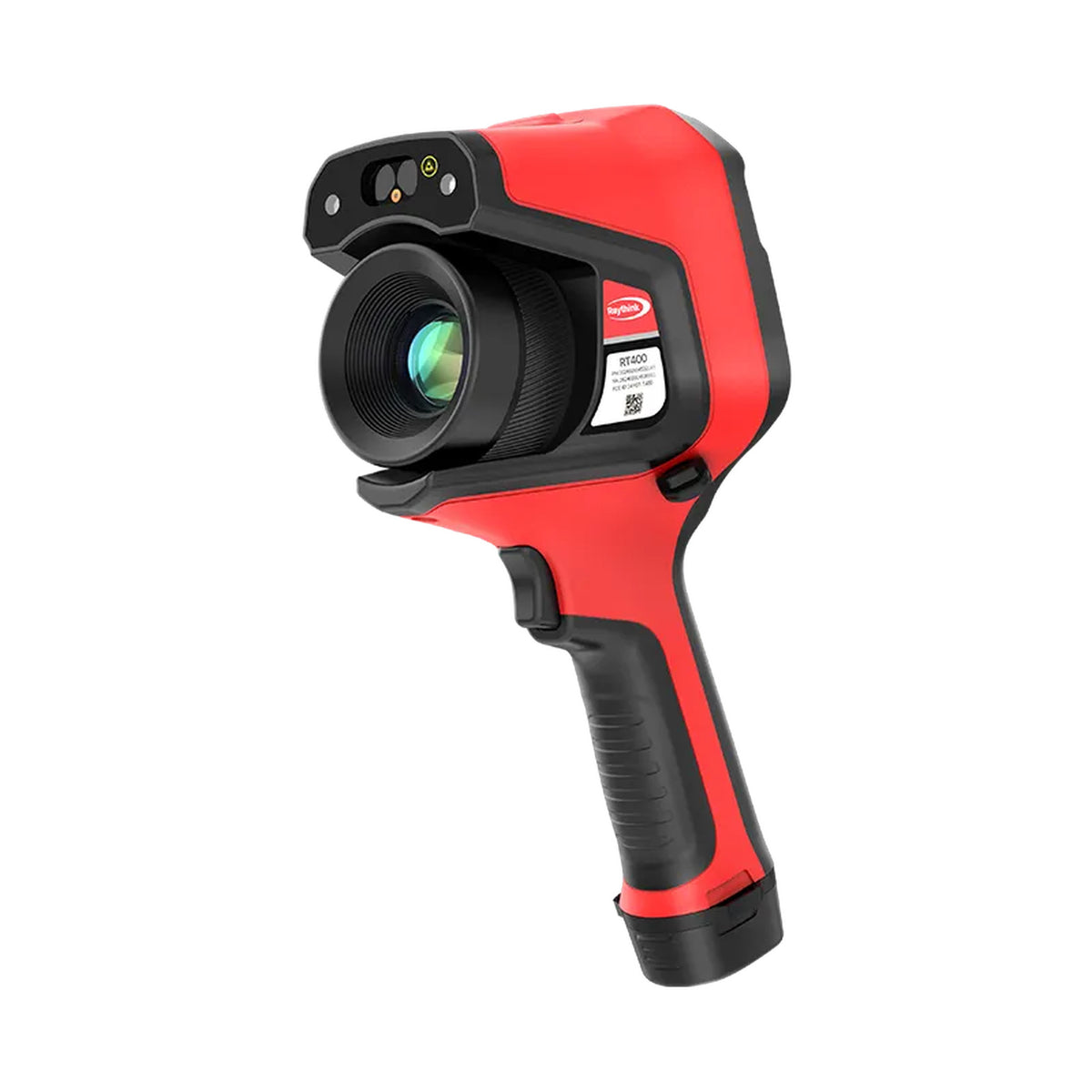

RT400
Expert Thermal Camera
RT400 combines an Android-based inspection workflow with temperature-trend and area analysis for more detailed equipment assessment.
Confirm the configuration, availability and supply terms in your quotation.
- Infrared Resolution
- 480×360
- Frame Rate
- 25 Hz
- Measurement Range
- -20°C~+150°C, 100°C~650°C; optional: 400°C~+1500°C
- Spectral Band
- 7.5-14μm
Application & capabilities
Analyze temperature trends during inspections
Lens selection
Optional lenses address different target sizes and working distances; include the required lens in the quotation.
Technical specifications
| Detector Type | Uncooled infrared detector |
|---|---|
| Infrared Resolution | 480×360 |
| Spectral Band | 7.5-14μm |
| NETD | ＜35mK (25°C,F1.0) |
| Frame Rate | 25 Hz |
| Lens Focal Length | Standard lens: 17.7mm; super telephoto lens: 60.9mm; telephoto lens: 31.5mm; wide-angle lens: 9.5mm. |
| FOV | Standard lens: 25°×20°; super telephoto lens: 7°×5.6°; telephoto lens: 14°×11.2°; wide-angle lens: 45°×36°. |
| Focusing Mode | Manual focus, one-button center focus, automatic center focus, single-touch automatic focus, laser-assisted focus, electric micro focus. |
| Measurement Range | -20°C~+150°C, 100°C~650°C; optional: 400°C~+1500°C |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater |

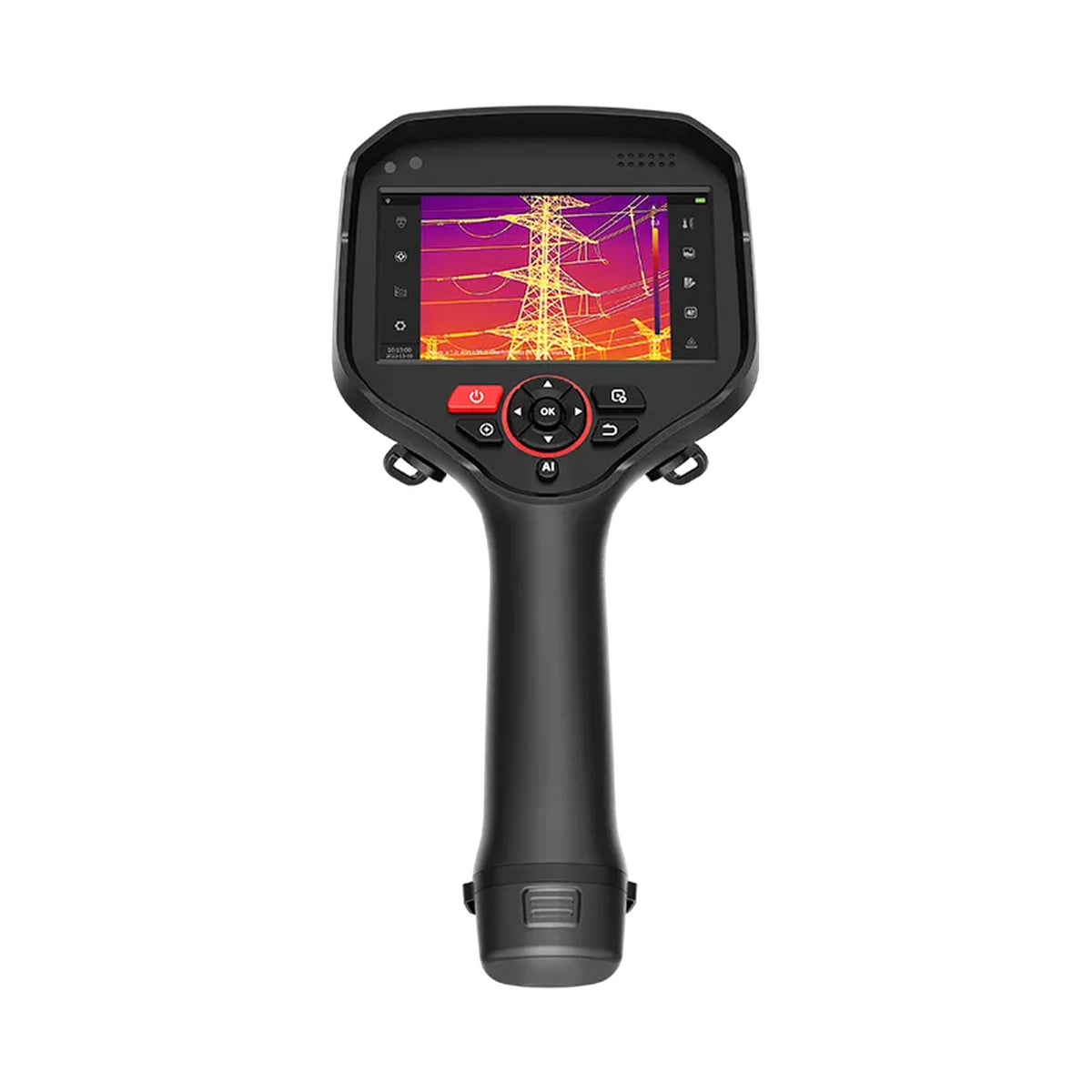

| Display | 5-inch OLED touch screen, resolution 1280×720 |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion |
| Operating Temperature | -20°C~+55°C |
| Ingress Protection Rating | IP54 |
| Weight and Dimensions | About 1.3kg (with battery), 144×129×307mm (subject to actual situations) |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
Documents
Prepared by Phoebus Link
Your RT400 selection brief.
Share the model overview, key specifications and procurement questions with your team.
PDF · 2 pages · Product brand: Raythink · Enquiries: Phoebus Link
Manufacturer technical references
Original Raythink documents are provided for technical verification. For pricing, configuration and order support, contact Phoebus Link.
RT400 / RT630 series product brochurePDF · Manufacturer documentDiscuss your project
