Trends and analysis areas
Review temperature changes and define measurement areas instead of relying only on a single spot reading.
Raythink · Advanced handheld thermography

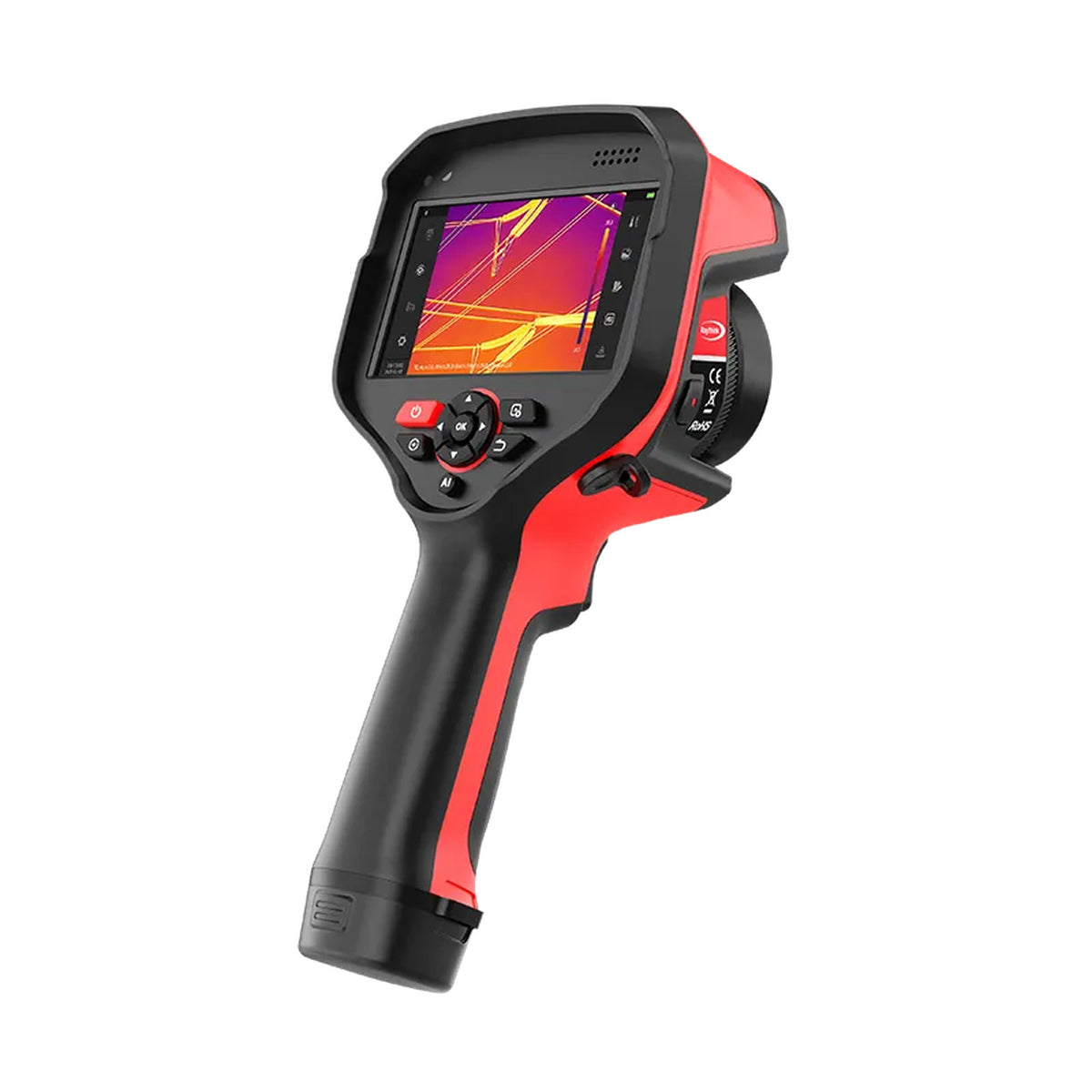

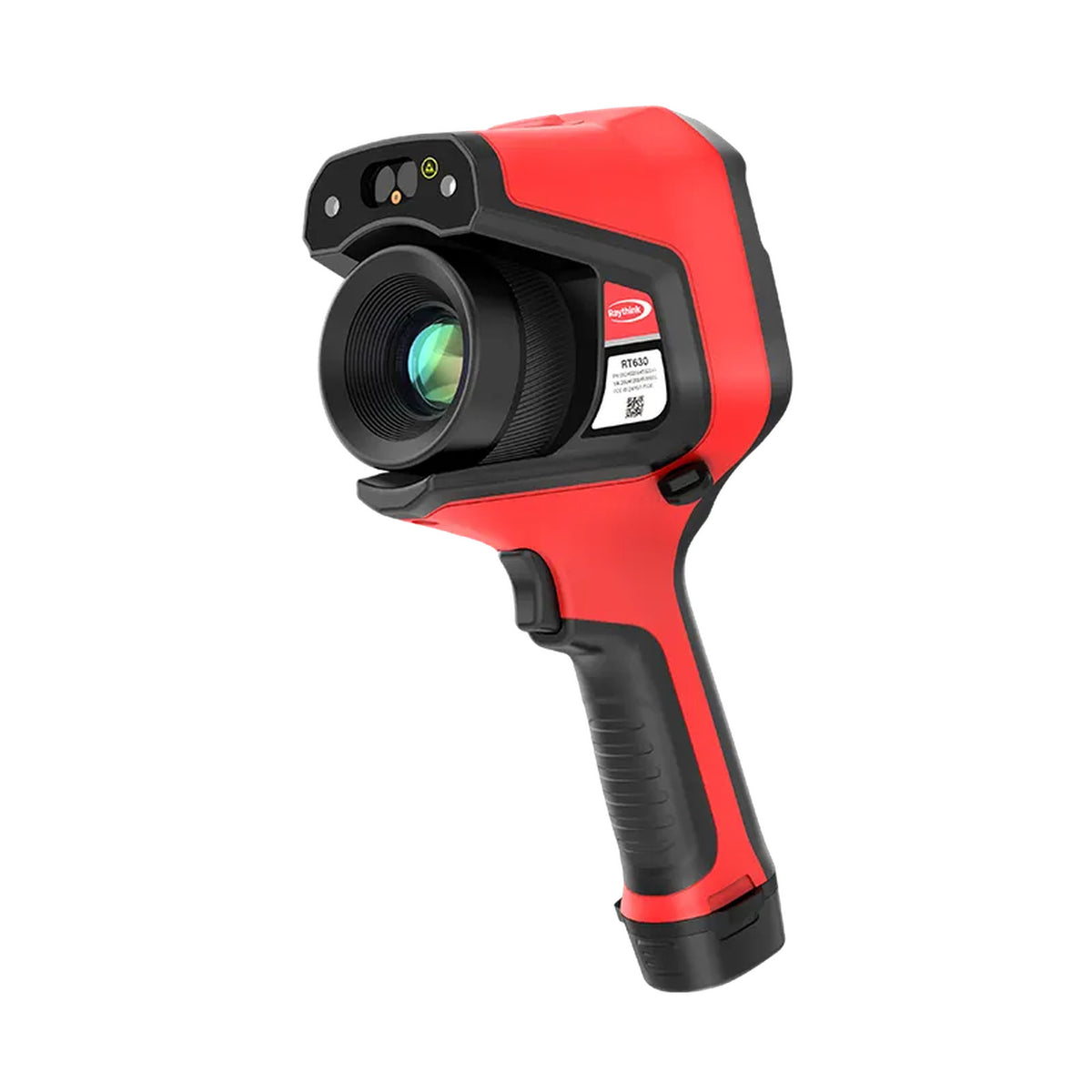

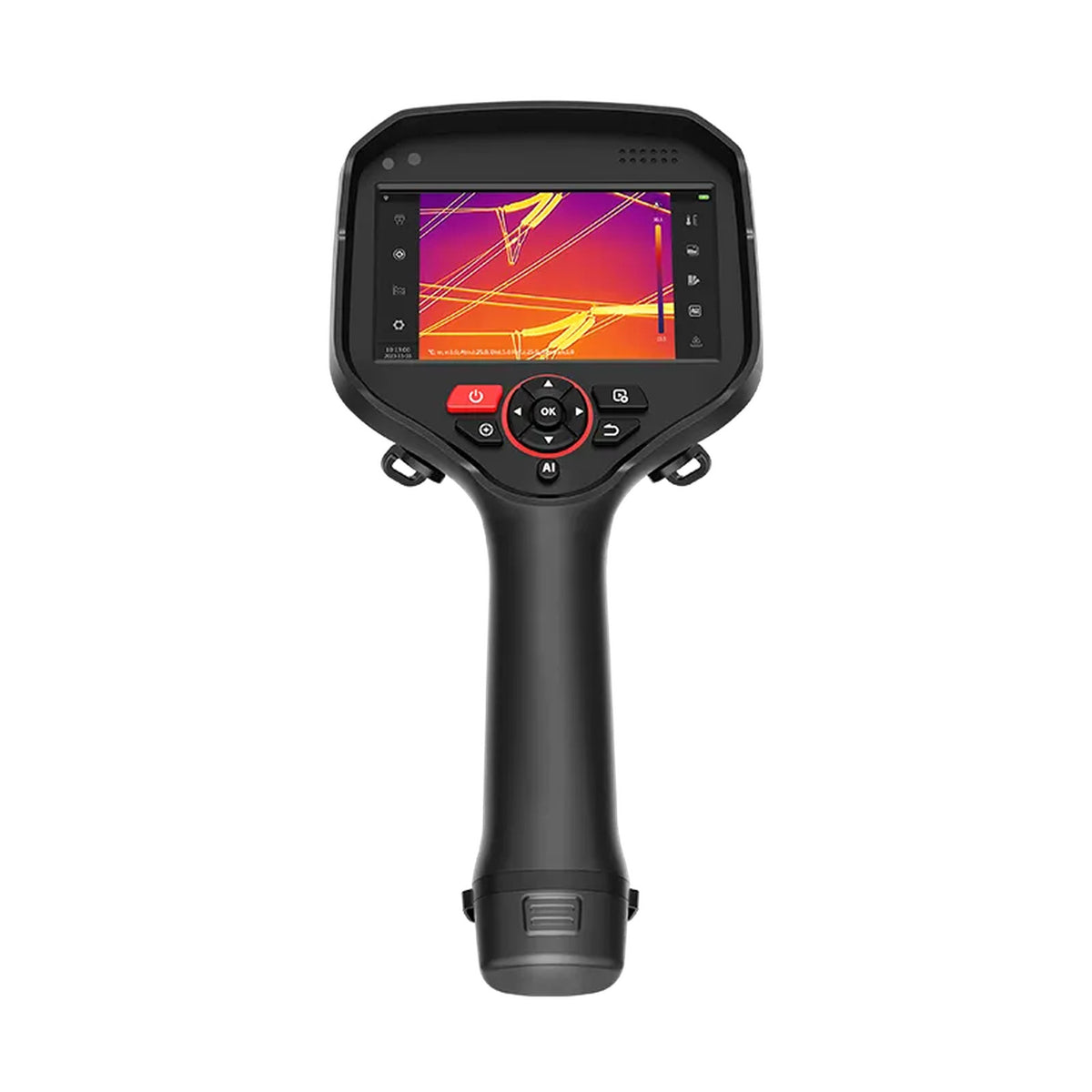

RT630
Expert Thermal Camera
RT630 combines an Android-based inspection workflow with temperature-trend and area analysis for more detailed equipment assessment.
Confirm the configuration, availability and supply terms in your quotation.
- Infrared Resolution
- 640×512
- Frame Rate
- 25 Hz
- Measurement Range
- -20°C~+150°C, 100°C~650°C; optional: 400°C~+1500°C
- Spectral Band
- 7.5-14μm
Application & capabilities
Analyze temperature trends during inspections
Lens selection
Optional lenses address different target sizes and working distances; include the required lens in the quotation.

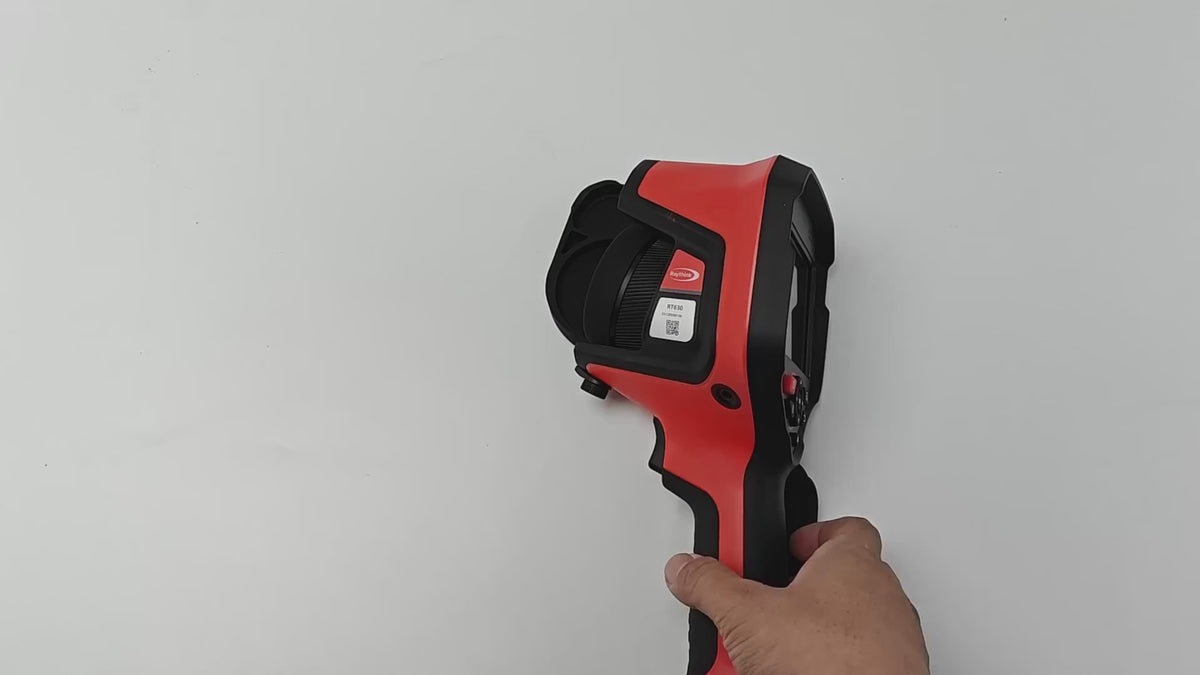

See the equipment
Product demonstration.
Technical specifications
| Detector Type | Uncooled infrared detector |
|---|---|
| Infrared Resolution | 640×512 |
| Spectral Band | 7.5-14μm |
| NETD | ＜35mK (25°C,F1.0) |
| Frame Rate | 25 Hz |
| Lens Focal Length | Standard lens: 17.7 mm; super telephoto lens: 60.9 mm; telephoto lens: 31.5 mm; wide-angle lens: 9.5 mm. |
| FOV | Standard lens: 25°×20°; super telephoto lens: 7°×5.6°; telephoto lens: 14°×11.2°; wide-angle lens: 45°×36°. |
| Focusing Mode | Manual focus, one-button center focus, automatic center focus, single-touch automatic focus, laser-assisted focus, electric micro focus. |
| Measurement Range | -20°C~+150°C, 100°C~650°C; optional: 400°C~+1500°C |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater |
| Display | 5-inch OLED touch screen, resolution 1280×720 |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion |
| Operating Temperature | -20°C~+55°C |
| Ingress Protection Rating | IP54 |
| Weight and Dimensions | About 1.3kg (with battery), 144×129×307mm (subject to actual situations) |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
