Two views of the scene
Thermal and visible channels support assessment of the monitored area.
Raythink · Thermal and visible site monitoring

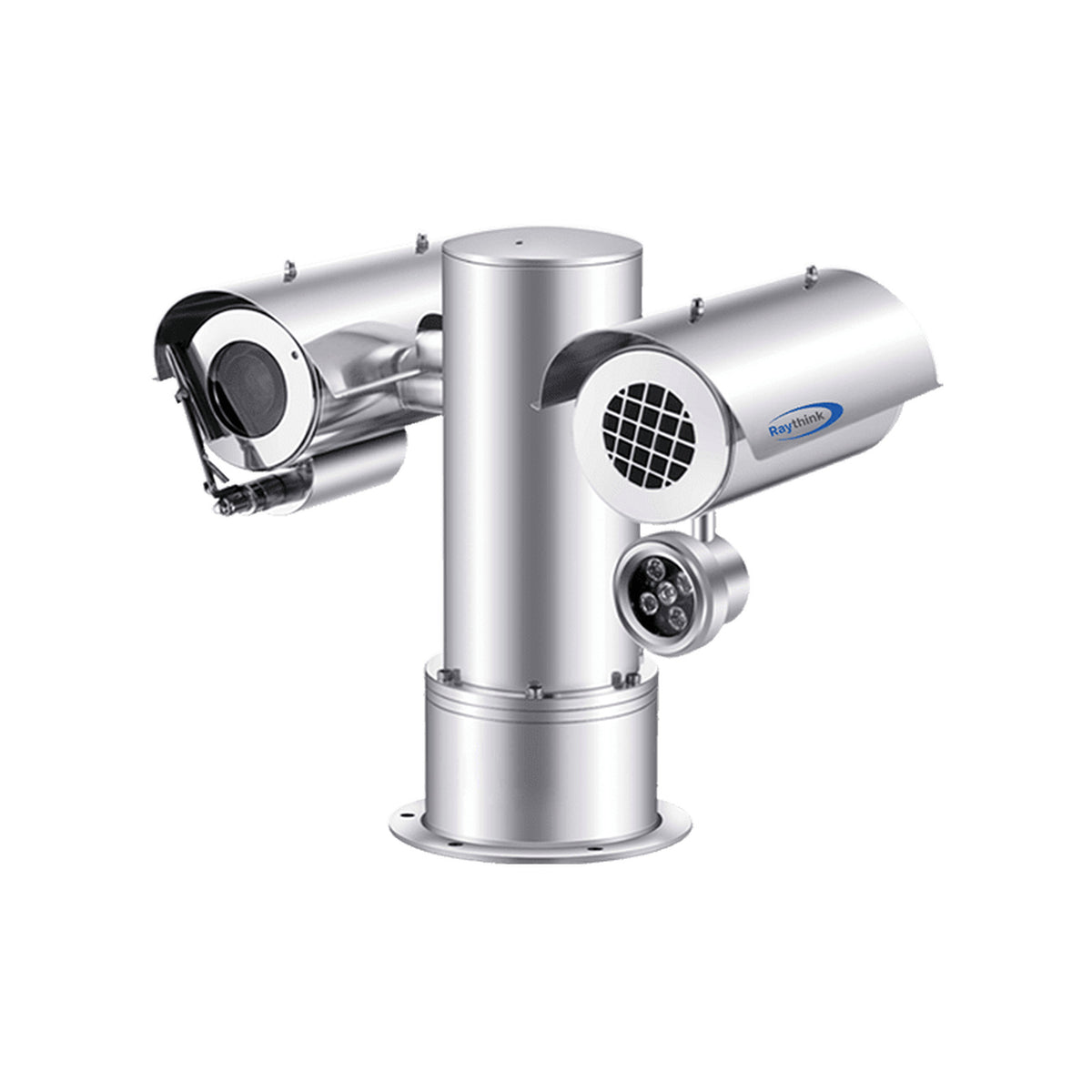

TE464T1
Dual-Spectrum Explosion-Proof PTZ Camera
TE464T1 combines thermal and visible imaging with intrusion and fire-point detection functions for industrial site observation.
Confirm the configuration, availability and supply terms in your quotation.
- Detector Type
- VOx, uncooled FPA detectors
- Pixel Pitch
- 12μm
- NETD
- ≤40mK(@25°C, F#1.0, 25 Hz)
Application & capabilities
Industrial site monitoring with thermal and visible channels
Motorized PTZ coverage
The pan-and-tilt format allows the camera to inspect different directions and preset areas.
Technical specifications
| Detector Type | VOx, uncooled FPA detectors |
|---|---|
| NETD | ≤40mK(@25°C, F#1.0, 25 Hz) |
| Pixel Pitch | 12μm |
| Measurement Range | -20℃~+550℃ |
| Measurement Accuracy | ±2℃ or ±2% |
| Power Consumption | <100W (thermostat activated) |
| Weight | 27kg |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
Documents
Prepared by Phoebus Link
Your TE464T1 selection brief.
Share the model overview, key specifications and procurement questions with your team.
PDF · 2 pages · Product brand: Raythink · Enquiries: Phoebus Link
Manufacturer technical references
Original Raythink documents are provided for technical verification. For pricing, configuration and order support, contact Phoebus Link.
TE464T1 product brochurePDF · Manufacturer documentDiscuss your project
