Raythink · Compact fixed thermography
TN220

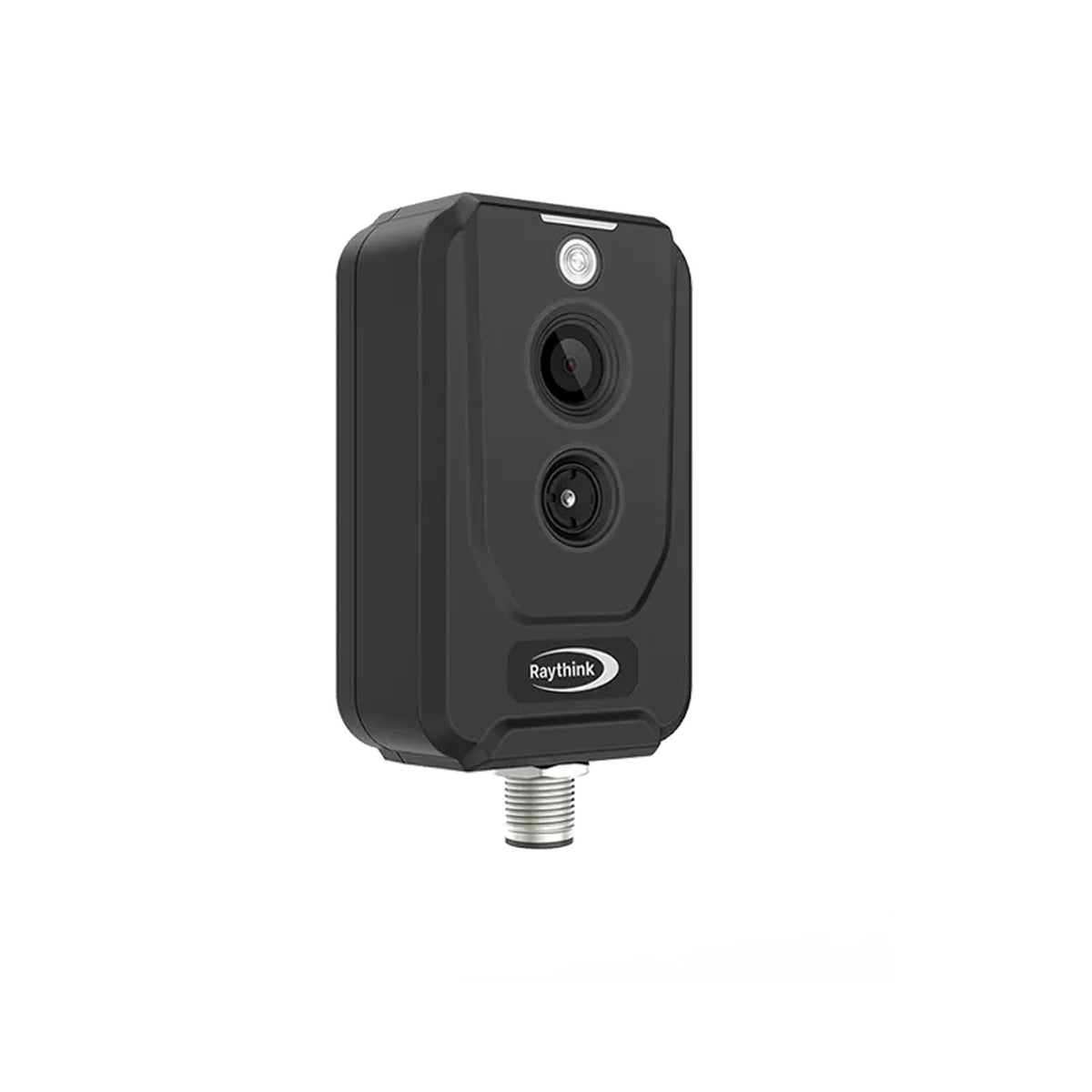

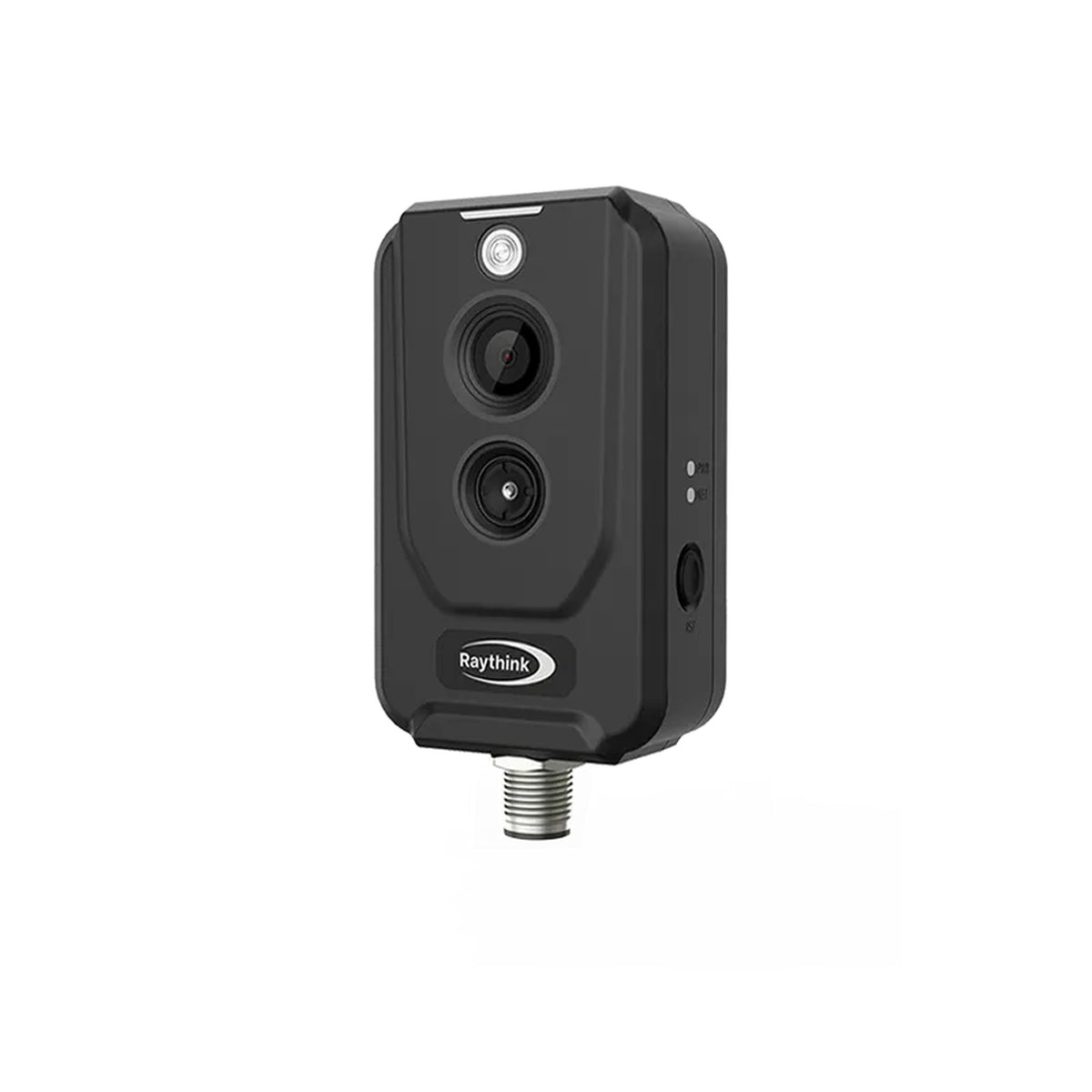

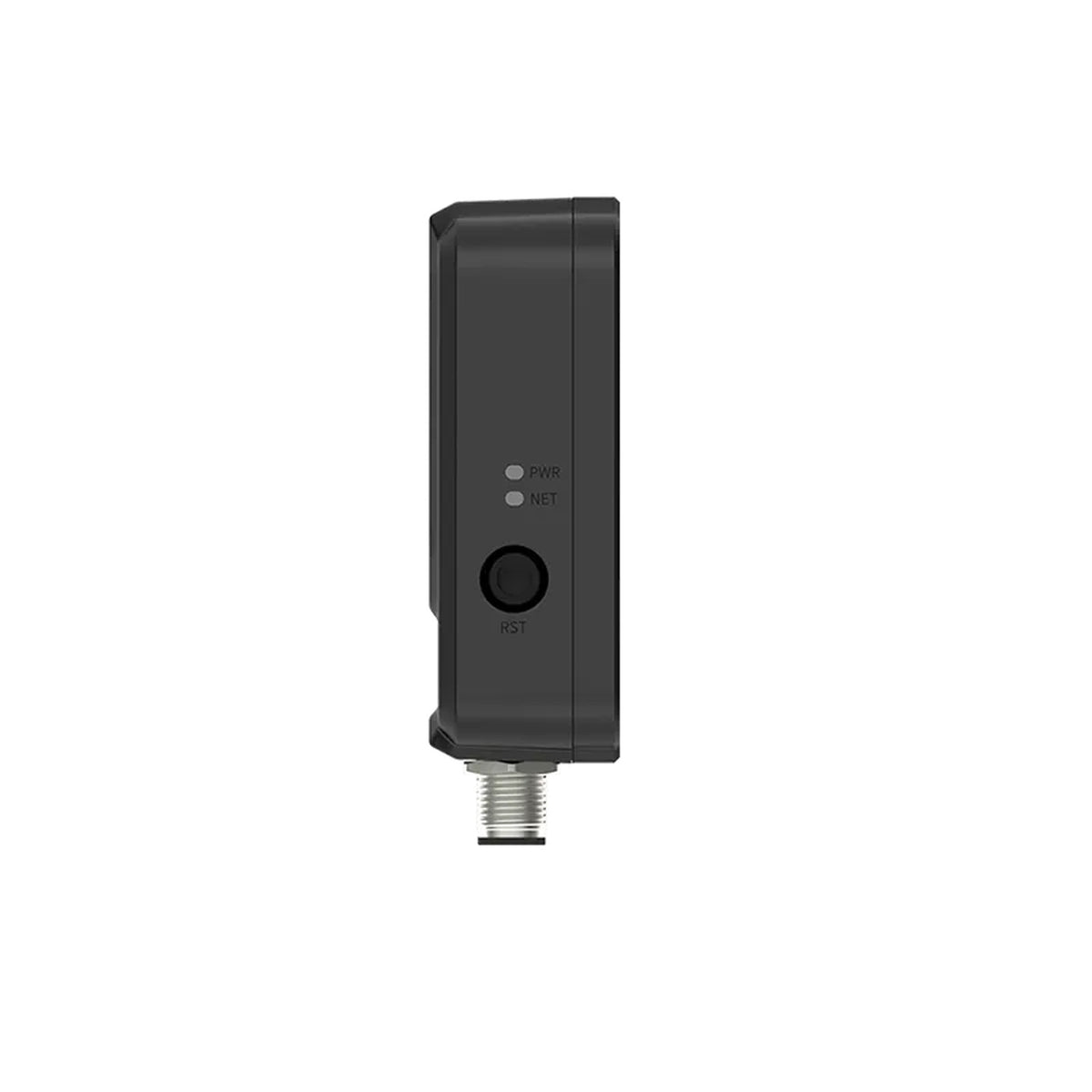

Thermographic Cube Camera
TN220 is a compact 256 × 192 thermal camera for fixed temperature monitoring where installation space is limited.
Confirm the configuration, availability and supply terms in your quotation.
- Infrared Resolution
- 256×192
- Frame Rate
- 1-25 Hz, adjustable
- Measurement Range
- -20℃~+150℃, 100℃~550℃
- Spectral Band
- 7.5～14μm
Application & capabilities
Temperature monitoring in confined spaces
Practical installation
PoE and magnetic mounting support compact installations; confirm the mounting kit and required Modbus or MQTT integration.

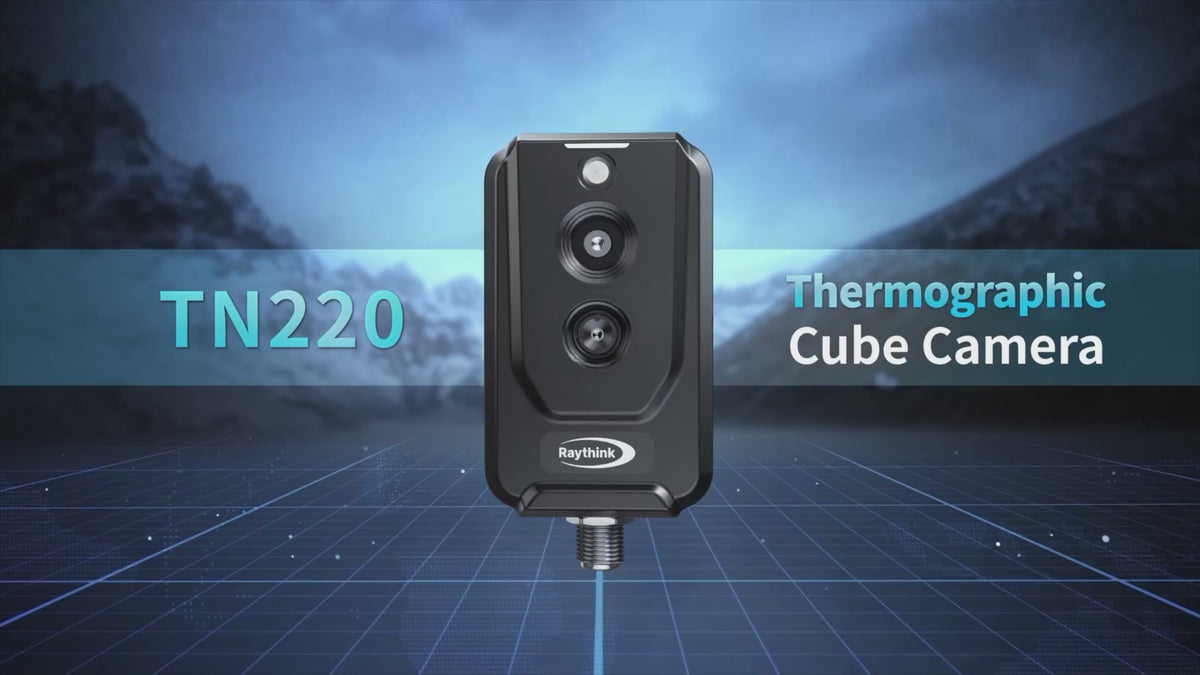

See the equipment
Product demonstration.
Technical specifications
| Detector Type | VOx Uncooled FPA Detector |
|---|---|
| Infrared Resolution | 256×192 |
| Spectral Band | 7.5～14μm |
| Thermal Sensitivity (NETD) | ≤40mK(@25°C, F#1.0,25 Hz) |
| Frame Rate | 1-25 Hz, adjustable |
| Pixel Pitch | 12μm |
| Lens Focal Length | 3.2mm;2mm |
| Field of view (FOV) | 56°× 42°; 90°×65.1° |
| Focus Mode | Athermalized Prime Lenses |
| Measurement Range | -20℃~+150℃, 100℃~550℃ |
| Measurement Accuracy | ±2°C or ±2% |
| Visible Light Resolution | 1600×1200 |
| Communication Interface | 1-channel RS485 interface |
| Network Interface | 1-channel RJ45, 100M adaptive Ethernet port, support POE power supply |
| Power Supply | DC 10~30V 1A/ POE(802.3af) |
| Interface Protocol | ONVIF, GB28181, Modbus TCP/RTU, MQTT, SDK |
| Video Encoding Format | MP4 |
| Ingress Protection Rating | IP67 |
| Power Consumption | ≤2.6W |
| Dimensions | 93mm×56mm×31.5mm |
| Weight | 152g |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
