Continuous measurement
Install the camera at a defined viewing position to follow equipment or process temperatures.
Raythink · Fixed thermography

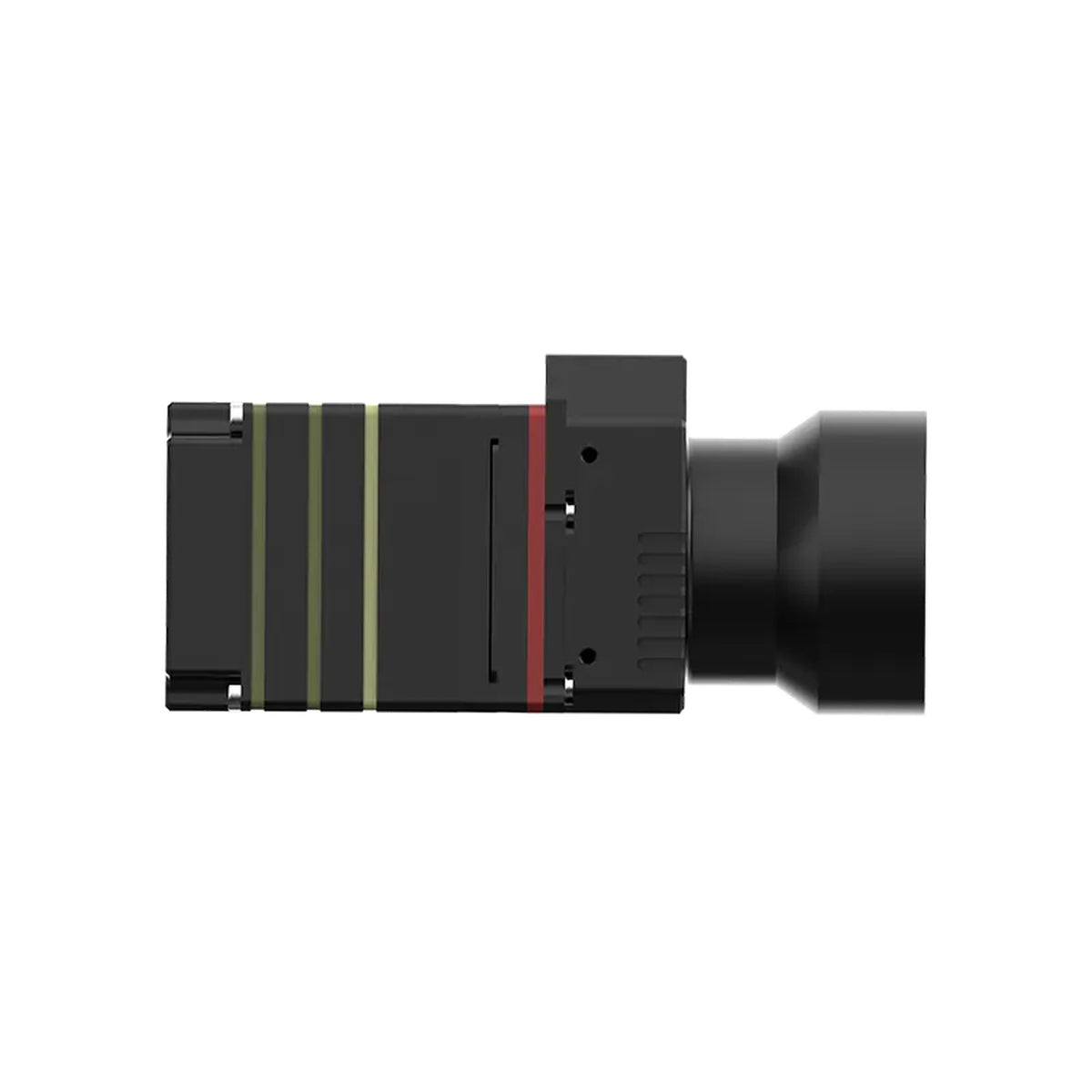

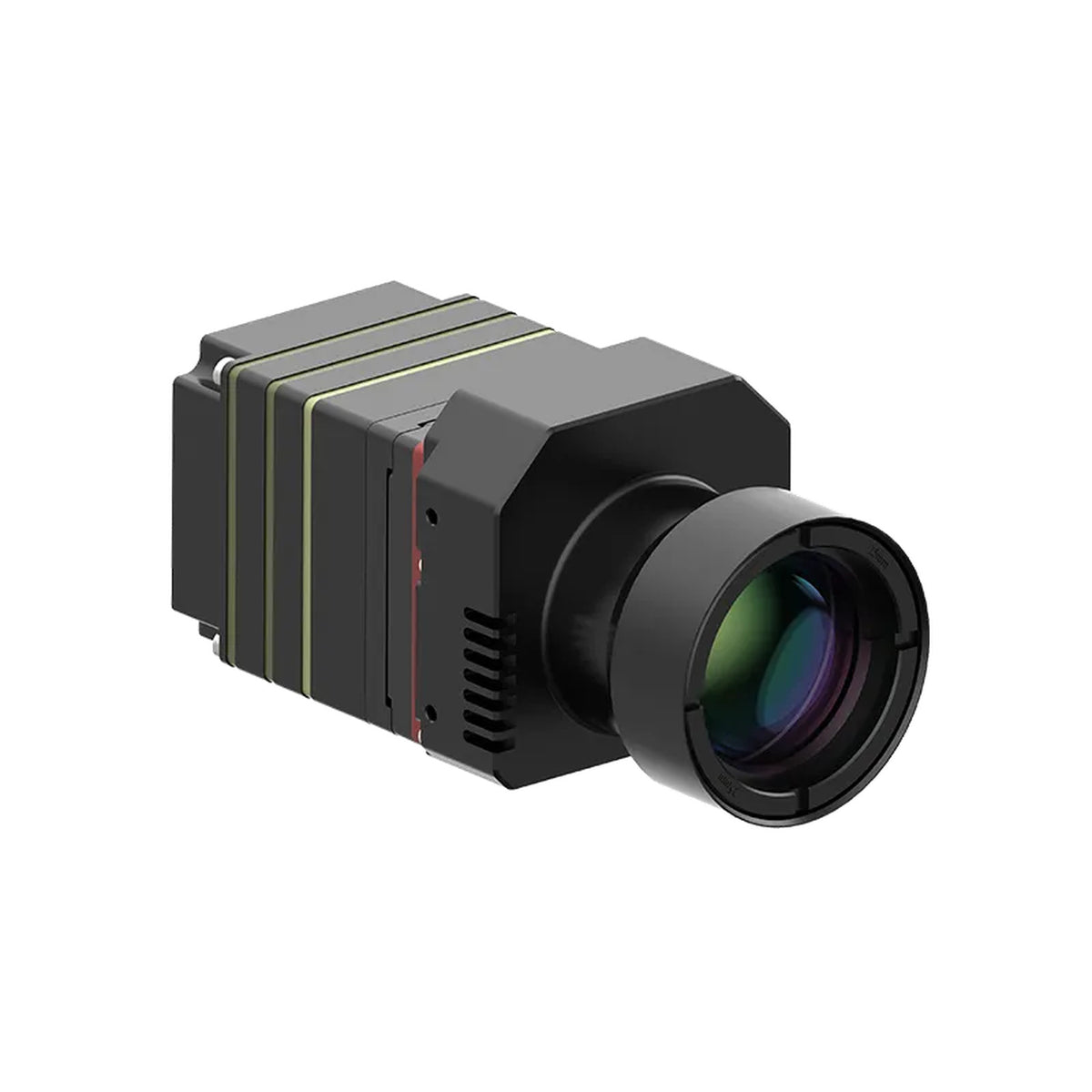

TN460
Fixed-mount Thermal Camera
TN460 supports fixed temperature monitoring with industrial and video-network integration options. The reference pairs 640 × 512 with 25 Hz.
Confirm the configuration, availability and supply terms in your quotation.
- Infrared Resolution
- 640×512
- Frame Rate
- 25 Hz
- Measurement Range
- -20℃~+150℃, 0~650℃
- Spectral Band
- 7.5μm~14μm
Application & capabilities
Networked temperature monitoring for equipment
System integration
The product information lists Modbus TCP, ONVIF, GB28181 and MQTT. Confirm the protocol and data required by your system.
Technical specifications
| Infrared Resolution | 640×512 |
|---|---|
| Pixel pitch | 12μm |
| Spectral Band | 7.5μm~14μm |
| Thermal Sensitivity (NETD) | ≤40mK |
| Measurement Range | -20℃~+150℃, 0~650℃ |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater. |
| Frame Rate | 25 Hz |

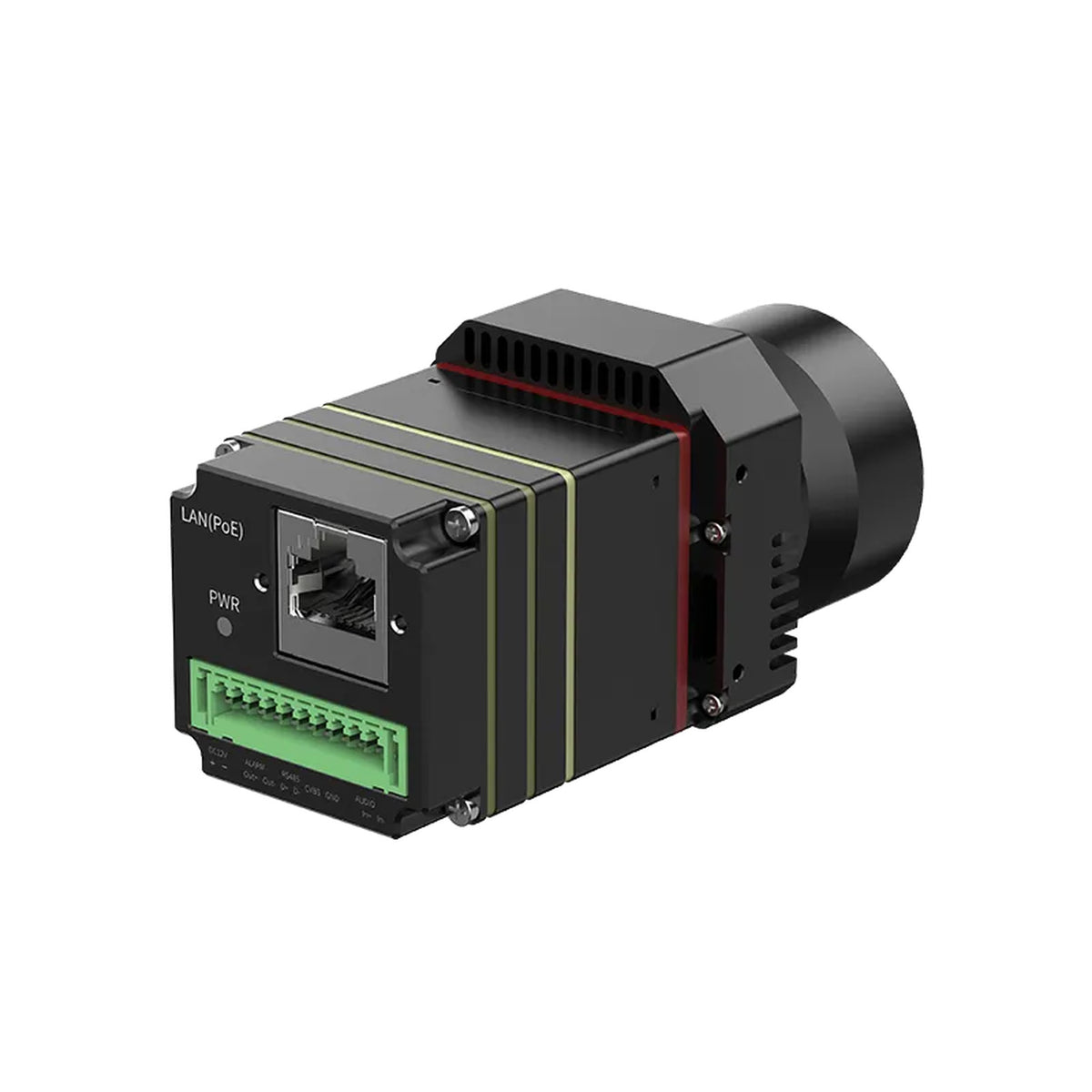

| Communication interface | RJ45, 10M/100M adaptive Ethernet port; 1-channel RS485 interface, support extended Pelco-D protocol |
| Interface Protocol | Modbus TCP, ONVIF, GB28181, MQTT |
| Operating Temperature | -40°C~+70℃ |
| Dimensions | 45mm×44mm×60mm (without lens) |
| Weight | About 110g (without lens) |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
Documents
Prepared by Phoebus Link
Your TN460 selection brief.
Share the model overview, key specifications and procurement questions with your team.
PDF · 2 pages · Product brand: Raythink · Enquiries: Phoebus Link
Manufacturer technical references
Original Raythink documents are provided for technical verification. For pricing, configuration and order support, contact Phoebus Link.
TN460 product brochurePDF · Manufacturer documentDiscuss your project
