High-temperature measurement
Choose the appropriate calibrated range for the process and target material.
Raythink · High-temperature fixed thermography

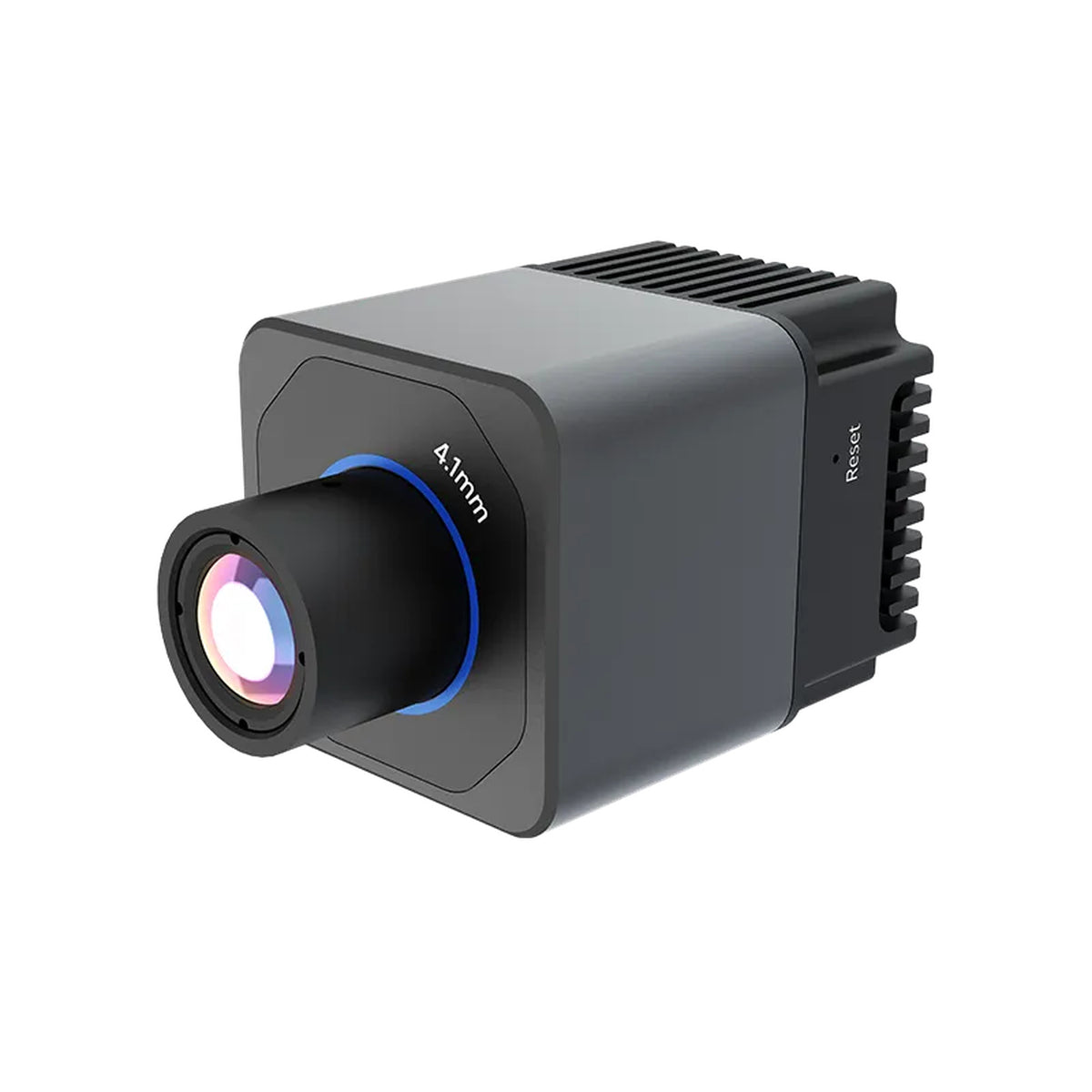

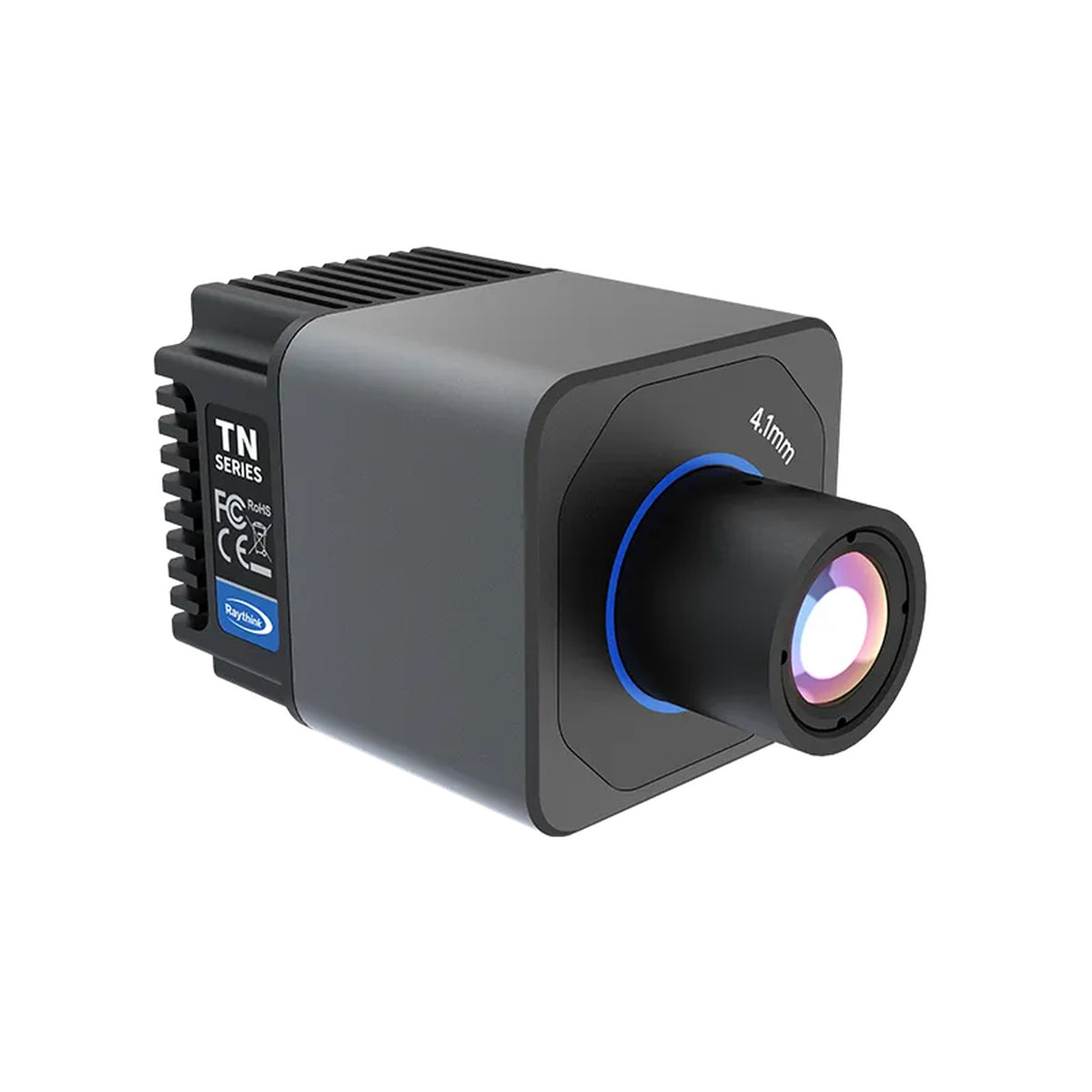

TN460U
Ultra-high Temperature Thermal Camera
TN460U is a 640 × 512 fixed thermal camera with documented measurement ranges of 0–800°C and 600–2000°C for high-temperature processes.
Confirm the configuration, availability and supply terms in your quotation.
- Infrared Resolution
- 640×512
- Frame Rate
- 25 Hz
- Measurement Range
- 0°C~800°C, 600°C~2000°C
- Spectral Band
- 7.5μm~14μm
Application & capabilities
Observe high-temperature industrial processes
Cooling options for the installation
Air- or water-cooled housing options require separate selection. Housing capability must not be treated as the bare camera ambient rating.
Technical specifications
| Infrared Resolution | 640×512 |
|---|---|
| Pixel pitch | 12μm |
| Spectral Band | 7.5μm~14μm |
| Thermal Sensitivity (NETD) | ≤40mK(@25°C, F#1.0, 25 Hz) |
| Focus Mode | Fixed focus, athermalized |
| FOV | 100°×82°/62.9°×50.4°/22.9°×18.4° |
| Measurement Range | 0°C~800°C, 600°C~2000°C |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater |
| Frame Rate | 25 Hz |

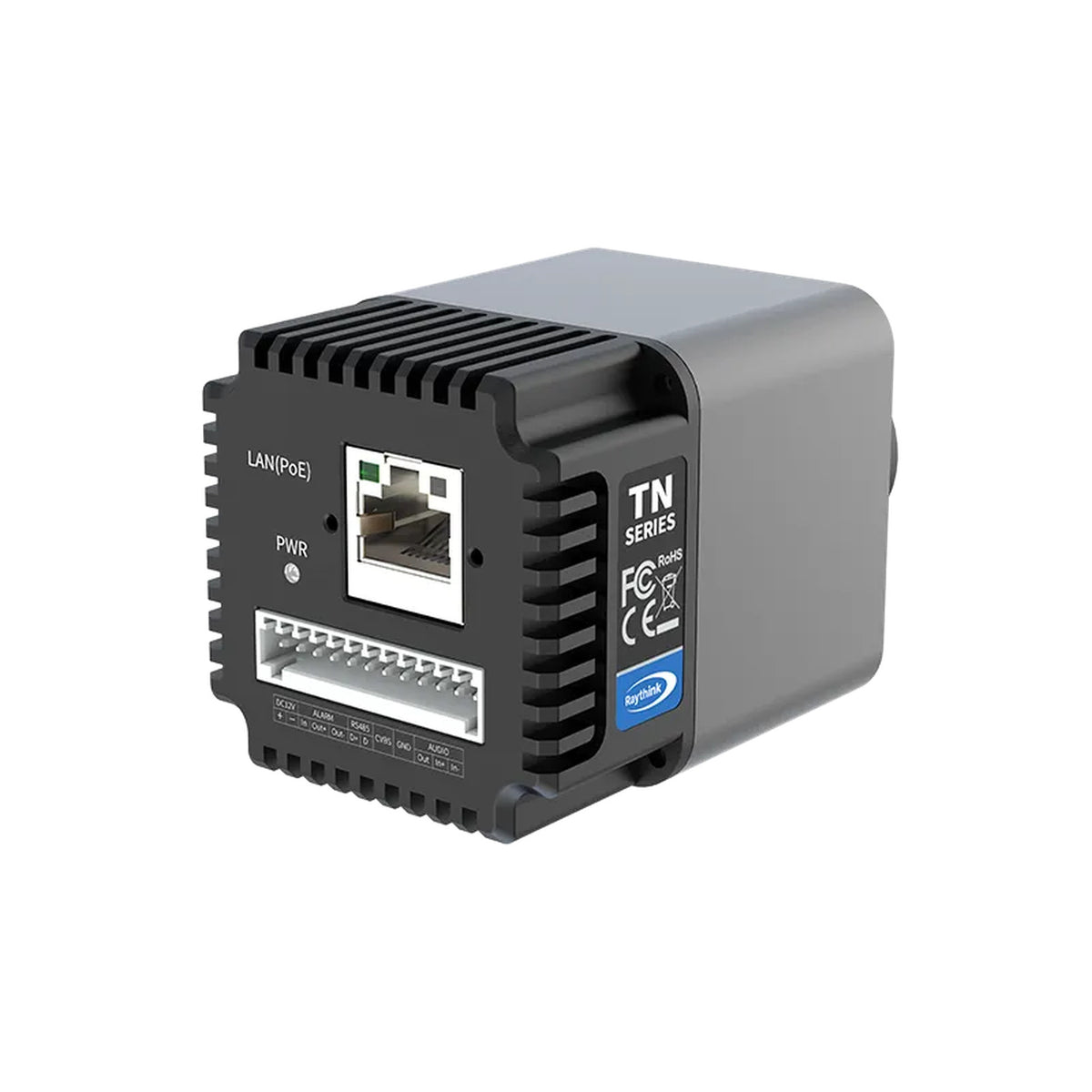

| Communication interface | RJ45, 10M/100M adaptive Ethermet port; 1-channel RS485, supporting Pelco-D protocol expansion |
| Interface Protocol | Modbus TCP, ONVIF, GB28181, MQTT |
| Operating Temperature | -20℃~+60℃ |
| Dimensions | <50x50x90mm |
| Weight | About 200g |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
