Dynamic temperature analysis
Choose the acquisition rate for the speed of the process you need to observe.
Raythink · High-speed fixed thermography
TN463

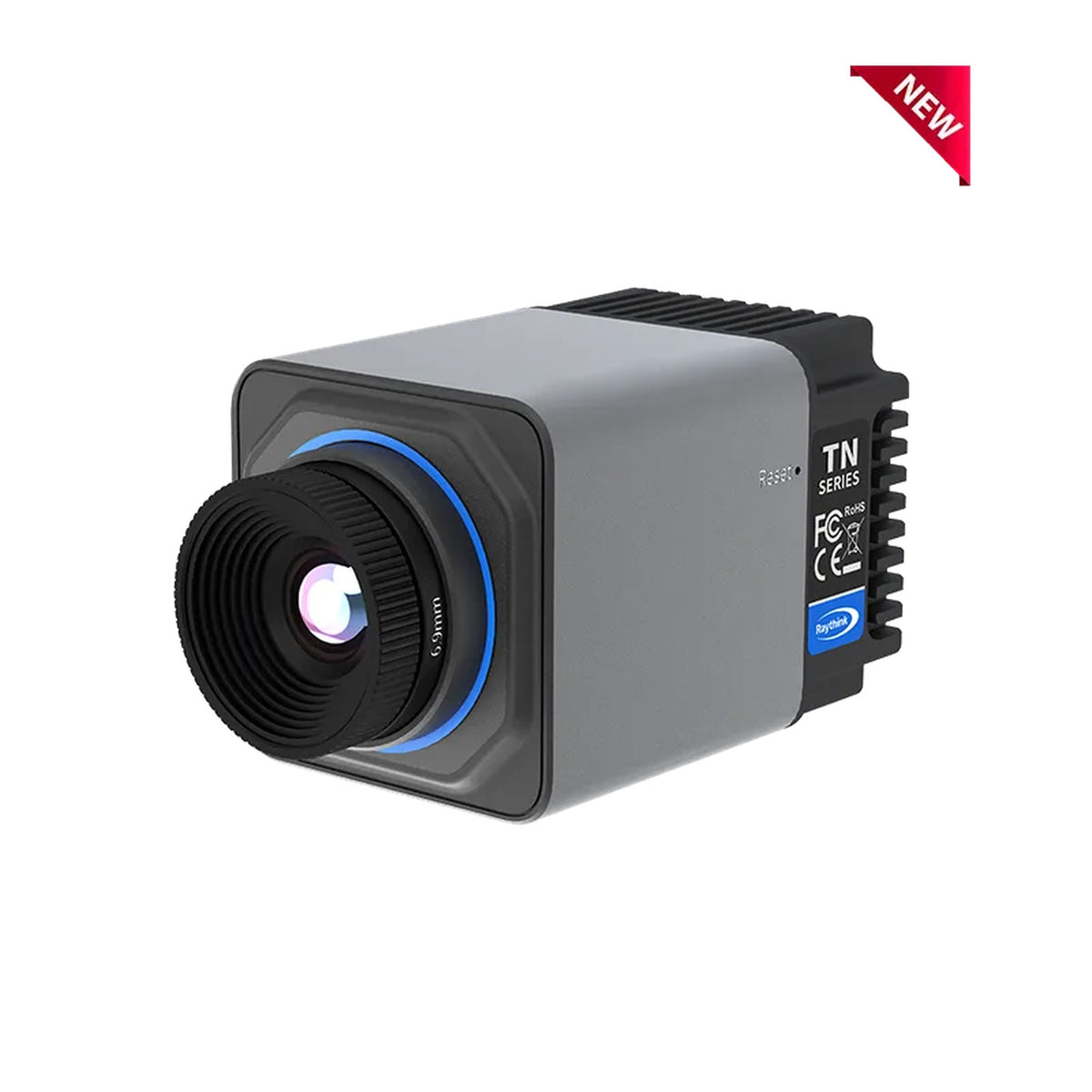

Fixed-Mount Thermal Camera
TN463 records synchronized thermal images and temperature data for dynamic industrial and research measurements. The documented full-frame acquisition rate is 60 Hz.
Confirm the configuration, availability and supply terms in your quotation.
- Infrared Resolution
- 640 × 512
- Frame Rate
- 60 Hz (adjustable frame rate)
- Measurement Range
- -20°C–150°C; 100°C–650°C
- Spectral Band
- 7.5 μm–14 μm
Application & capabilities
Capture changing temperatures in a fixed installation
Fixed measurement workflow
Integrate the camera into a stable installation with the required optics, data interface and analysis software.
Technical specifications
| Detector Type | Uncooled VOx infrared detector |
|---|---|
| Infrared Resolution | 640 × 512 |
| Pixel Pitch | 12 μm |
| Frame Rate | 60 Hz (adjustable frame rate) |
| Spectral Band | 7.5 μm–14 μm |
| Thermal Sensitivity (NETD) | ≤ 40 mK (@25°C; F#1.0,25 Hz) |
| Focus Mode | Fixed focus, athermalized |
| FOV | 62.8°×50.2°, 48°×38.4°, 22.9°×18.4°, 17.4°×14° |
| Measurement Range | -20°C–150°C; 100°C–650°C |
| Measurement Accuracy | ±2°C or ±2% of the reading (whichever is greater) |
| Communication Interface | RJ45 Gigabit Ethernet port; 1 RS-485 interface, supporting software trigger, hardware trigger, and standard Pelco-D/P protocol; 1 USB 3.0 port |
| Interface Protocol | Modbus TCP/RTU, ONVIF, and MQTT |
| Operating Temperature | Imaging: -40°C to +60°C; temperature measurement: -20°C to 60°C |
| Dimensions | 89.72×49×49mm, 91.9×49×49mm, 94.94×49×49mm, 94.94×49×49mm |
| Weight | 290 ± 5 g |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
