Raythink · Uncooled thermal module

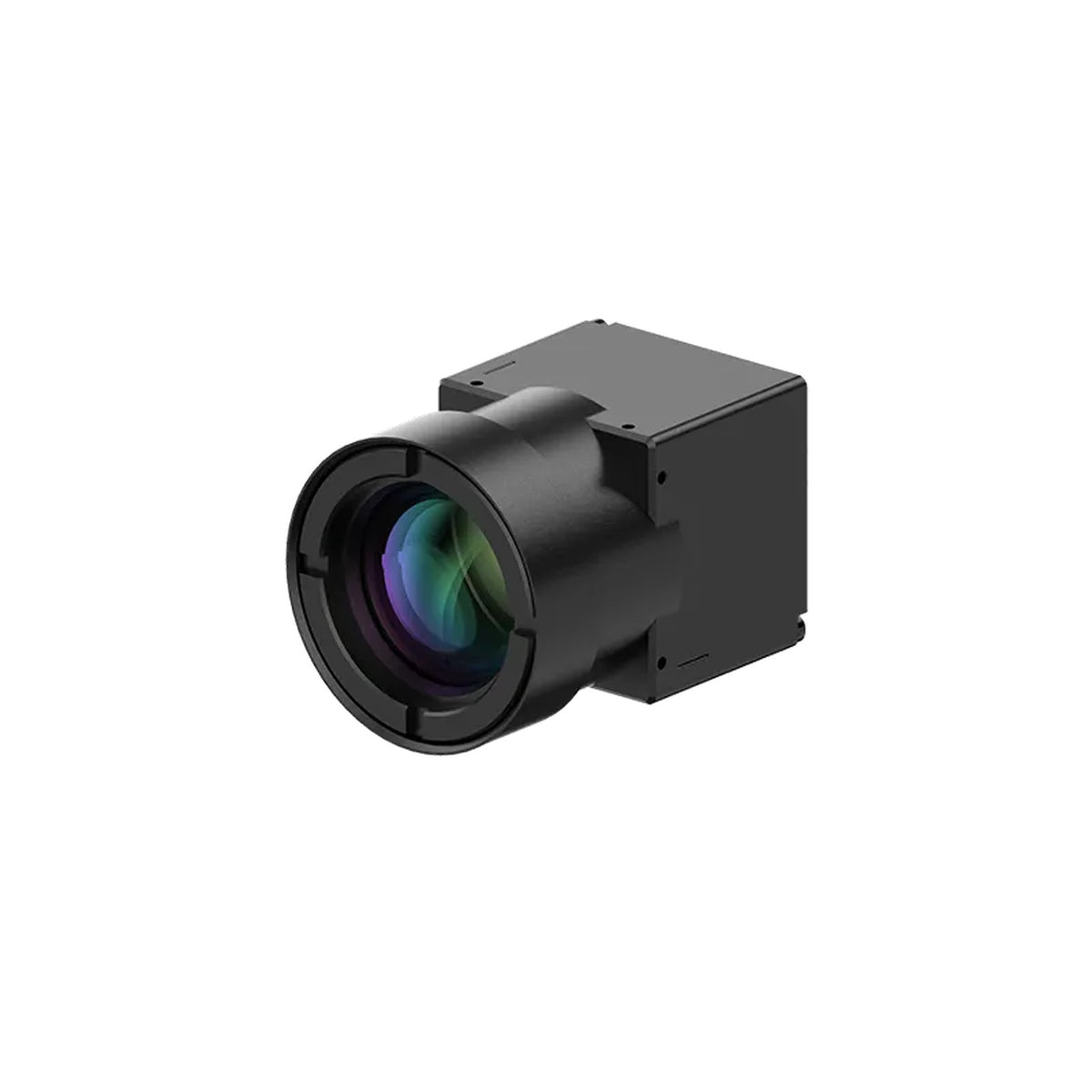

Turing A640
Uncooled Infrared Module (Imaging)
Turing A640 is an uncooled thermal module for integration into a larger imaging system. Select the detector, optics and output configuration for the host device.
Confirm the configuration, availability and supply terms in your quotation.
- Resolution
- 640×512
- Spectral Band
- 8~14μm
- NETD
- ≤50mK at 25°C (≤40mK, optional)
- Pixel Pitch
- 12μm
Application & capabilities
Thermal imaging for outdoor platforms
Imaging or measurement configuration
Where a radiometric version is offered, it must be selected explicitly. An imaging module alone does not establish calibrated temperature output.
Technical specifications
| Detector Type | Uncooled VOx infrared detector |
|---|---|
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Spectral Band | 8~14μm |
| NETD | ≤50mK at 25°C (≤40mK, optional) |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
Documents
Prepared by Phoebus Link
Your Turing A640 selection brief.
Share the model overview, key specifications and procurement questions with your team.
PDF · 2 pages · Product brand: Raythink · Enquiries: Phoebus Link
Manufacturer technical references
Original Raythink documents are provided for technical verification. For pricing, configuration and order support, contact Phoebus Link.
Turing A640 product brochurePDF · Manufacturer document Turing A640 product brochurePDF · Manufacturer documentDiscuss your project
