Shutterless imaging workflow
The A640H information describes a shutterless imaging algorithm for continuous observation; confirm operating conditions and output configuration.
Raythink · Uncooled thermal module

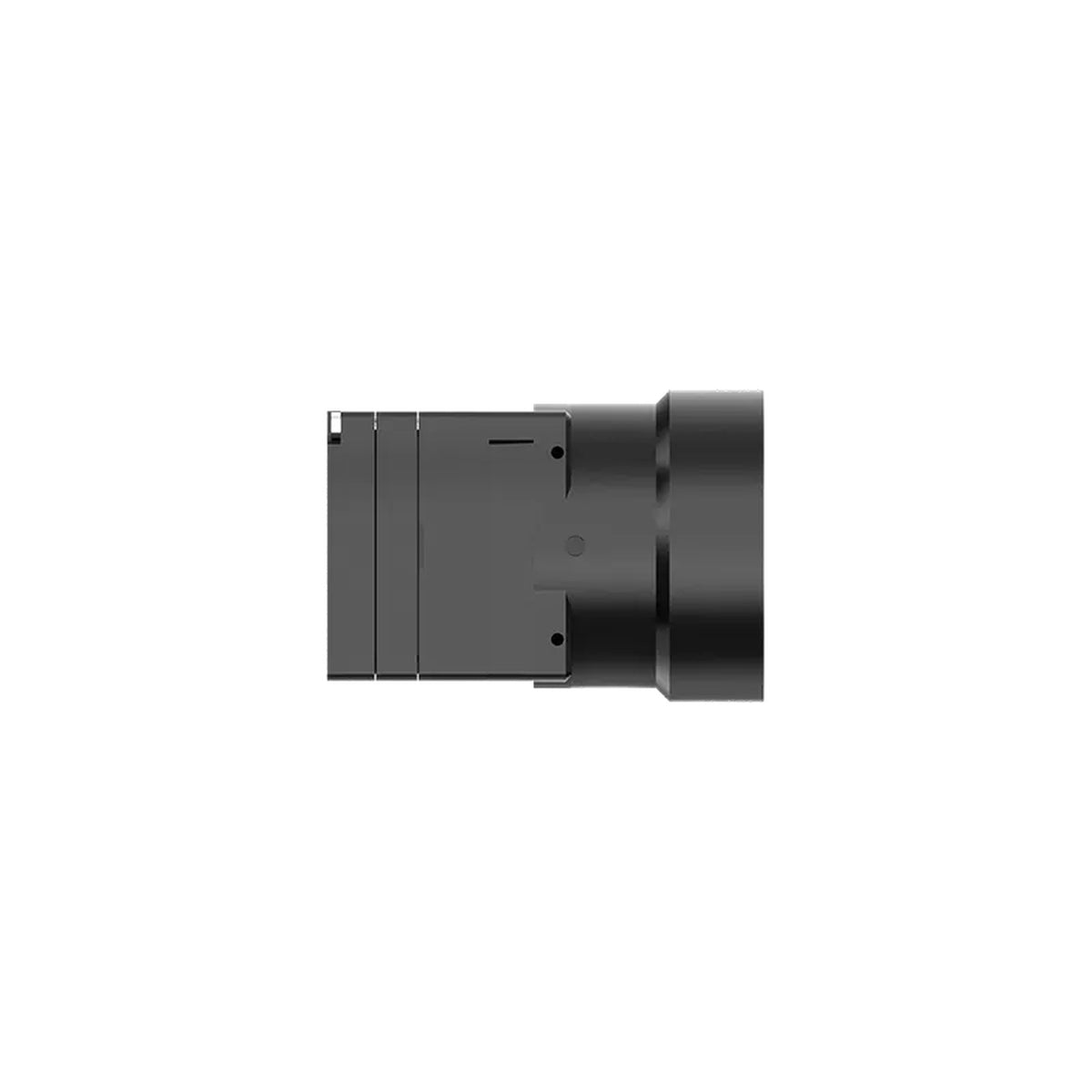

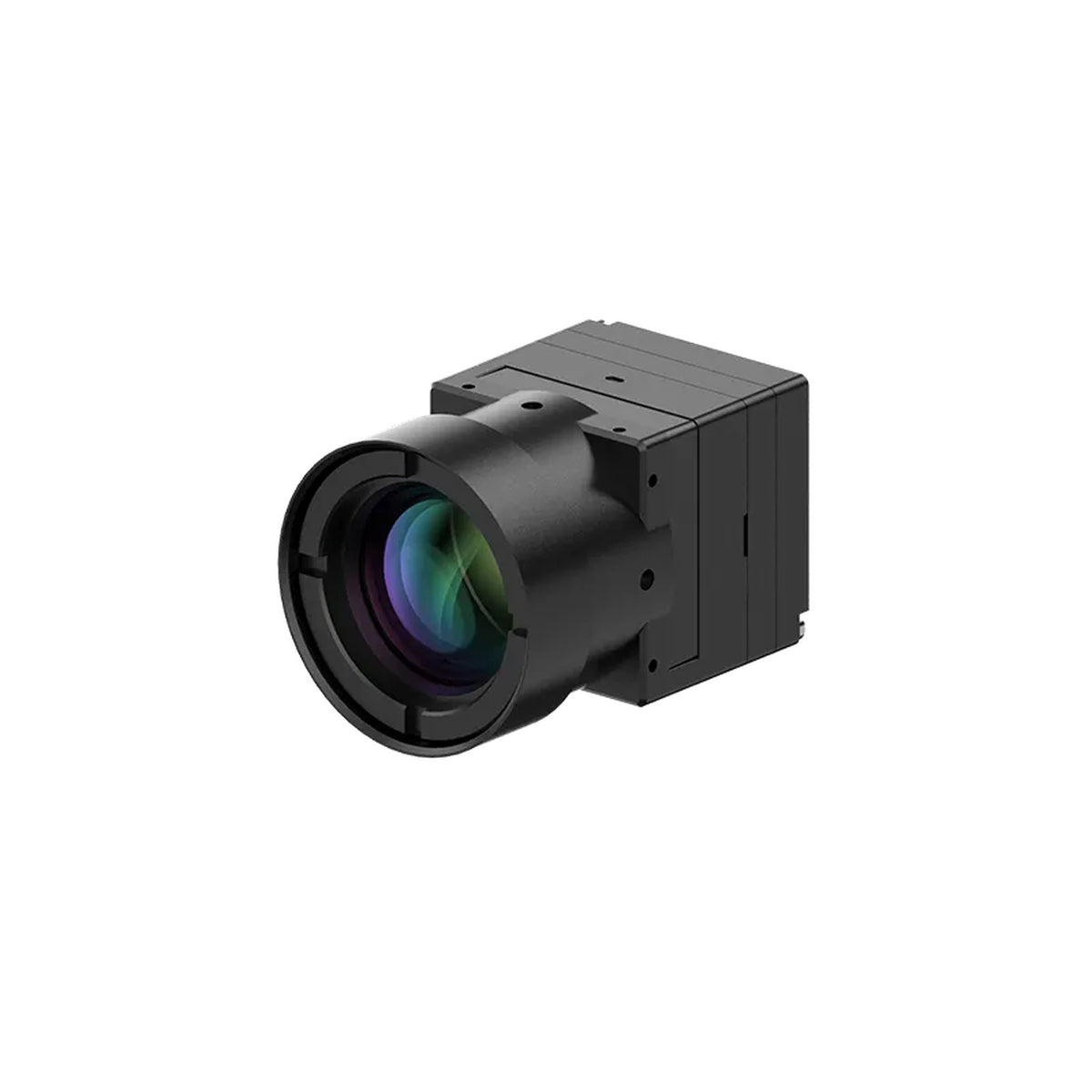

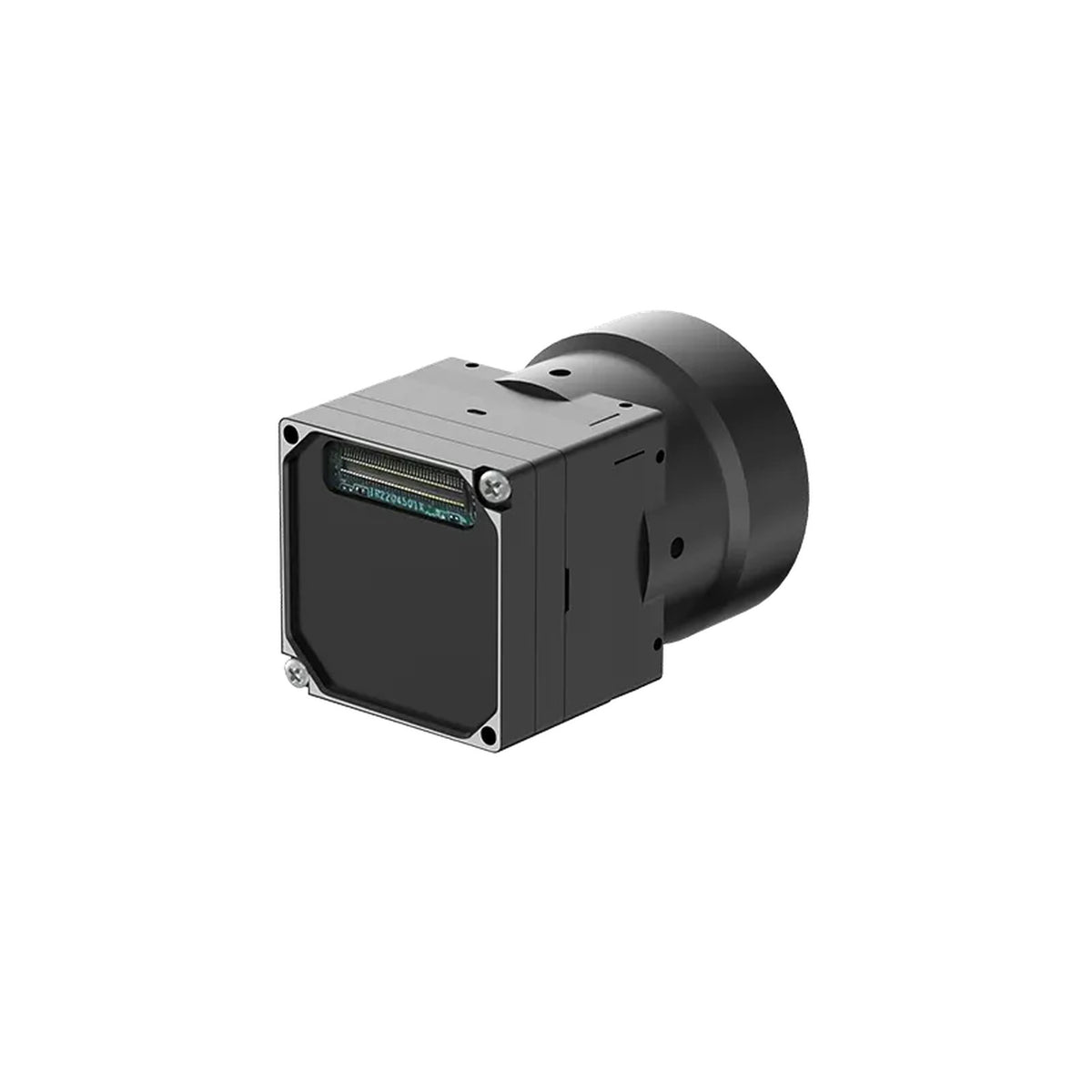

Turing A640H
Uncooled Infrared Module
Turing A640H is an uncooled thermal module for integration into a larger imaging system. Select the detector, optics and output configuration for the host device.
Confirm the configuration, availability and supply terms in your quotation.
- Resolution
- 640×512
- Frame Rate
- 50 Hz (60 Hz, optional)
- Spectral Band
- 8~14μm
- NETD
- ≤40mK at 25℃, F#1.0
Application & capabilities
Thermal imaging for outdoor platforms
Imaging or measurement configuration
Where a radiometric version is offered, it must be selected explicitly. An imaging module alone does not establish calibrated temperature output.
Technical specifications
| Detector Type | Uncooled VOx infrared detector |
|---|---|
| Resolution | 640×512 |
| Frame Rate | 50 Hz (60 Hz, optional) |
| Pixel Pitch | 12μm |
| Spectral Band | 8~14μm |
| NETD | ≤40mK at 25℃, F#1.0 |
| Operating Temperature | -40°C~+80°C |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
