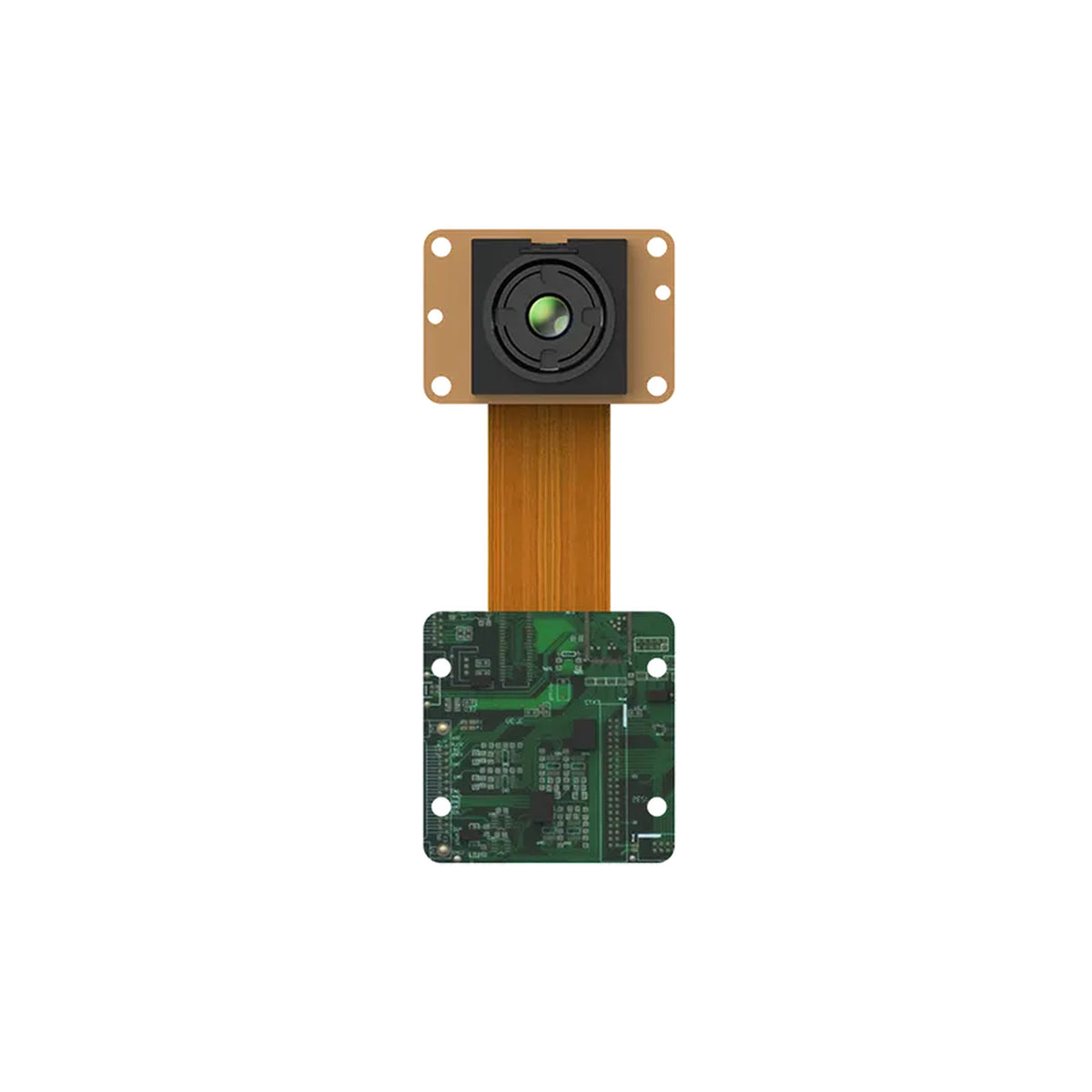

Split-module integration
A split assembly and development tools support integration into a host thermal imaging device.
Raythink · Uncooled thermal module

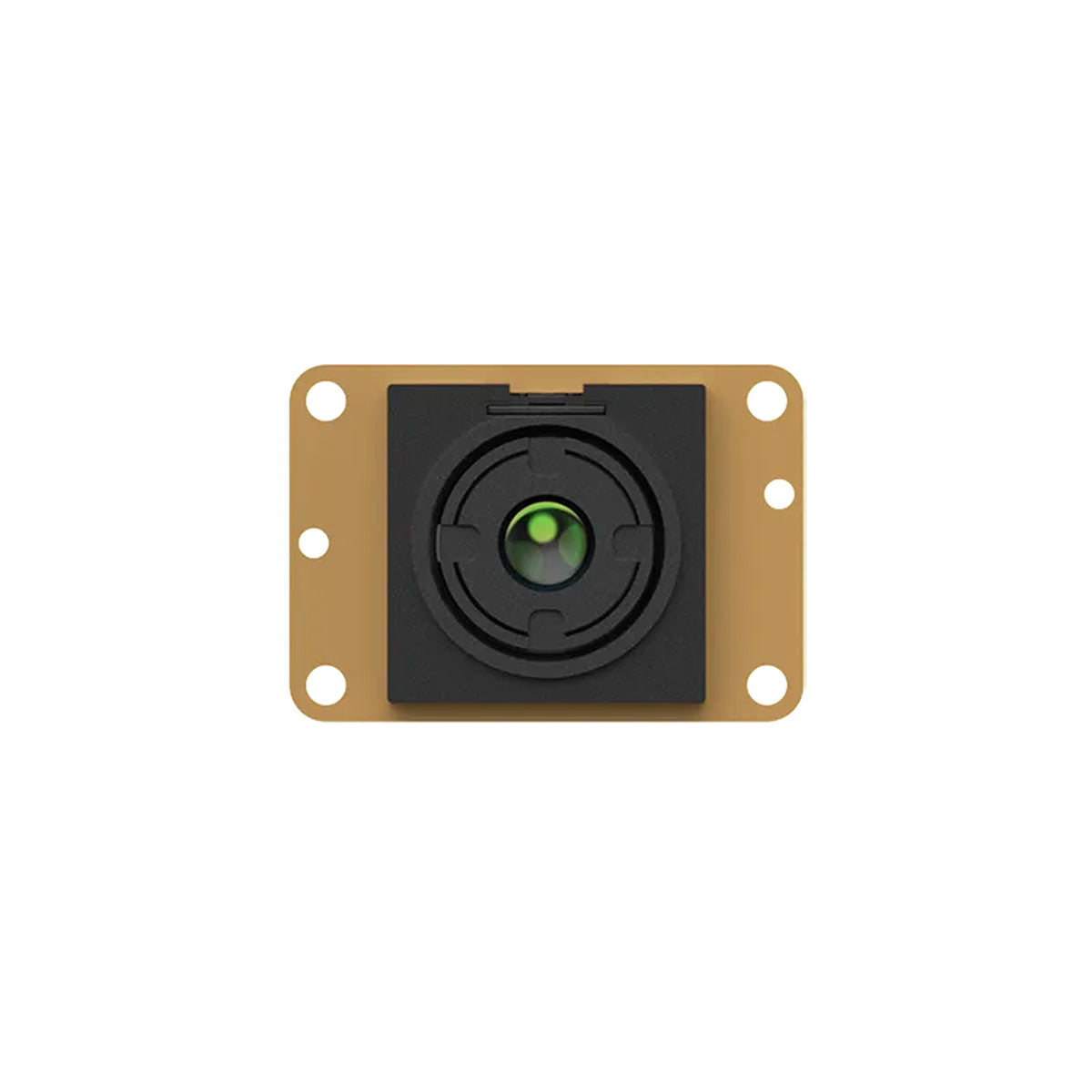

Turing C256
Uncooled Infrared Module

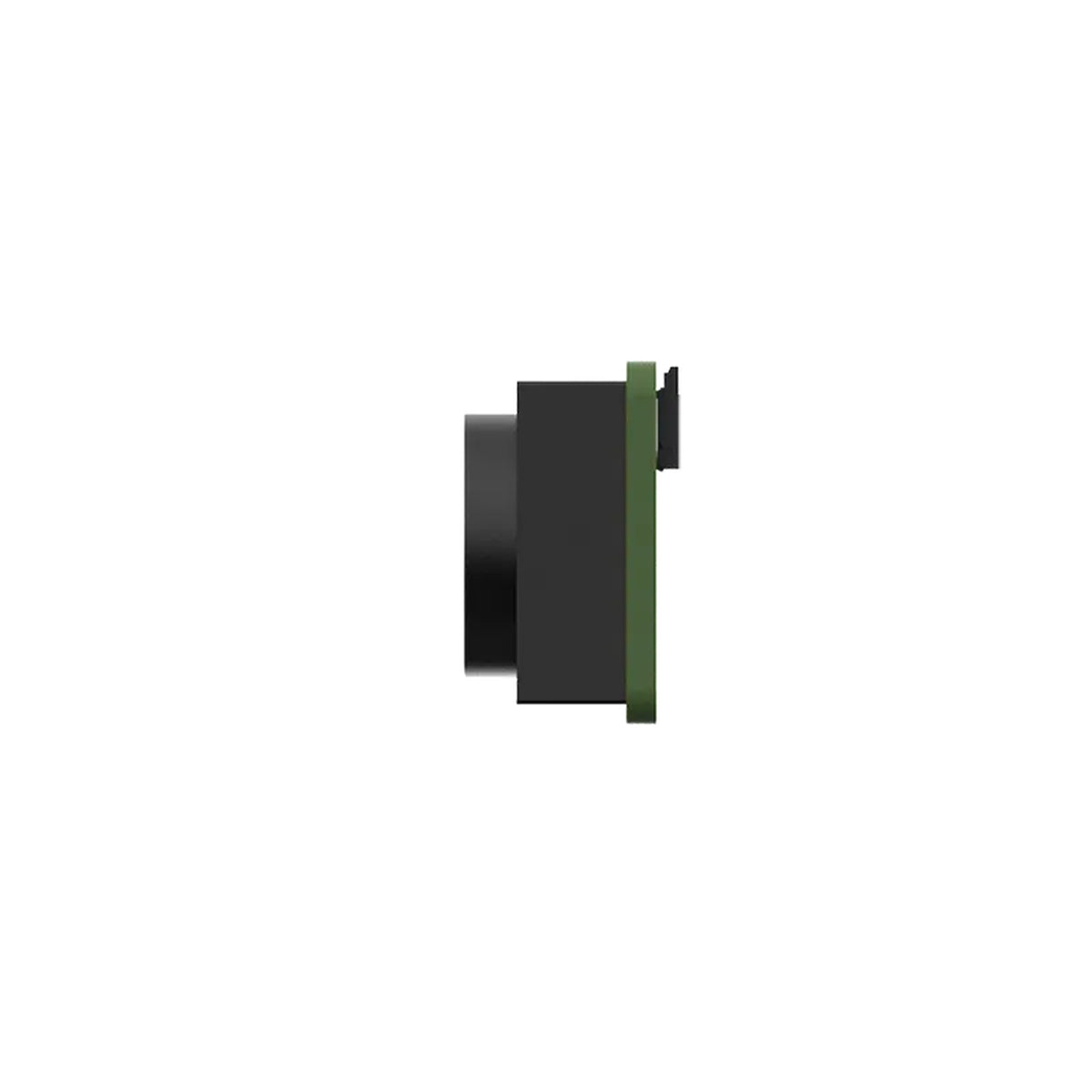

Turing C256 is an uncooled thermal module for integration into a larger imaging system. Select the detector, optics and output configuration for the host device.
Confirm the configuration, availability and supply terms in your quotation.
- Resolution
- 256×192
- Spectral Band
- 8~14μm
- NETD
- ≤50mK at 25°C (≤40mK, optional)
- Pixel Pitch
- 12μm
Application & capabilities
Split-module integration
Imaging or measurement configuration
Where a radiometric version is offered, it must be selected explicitly. An imaging module alone does not establish calibrated temperature output.
Technical specifications
| Detector Type | Uncooled VOx infrared detector |
|---|---|
| Resolution | 256×192 |
| Pixel Pitch | 12μm |
| Spectral Band | 8~14μm |
| NETD | ≤50mK at 25°C (≤40mK, optional) |
| Operating Temperature | -20℃～60℃ |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
Documents
Prepared by Phoebus Link
Your Turing C256 selection brief.
Share the model overview, key specifications and procurement questions with your team.
PDF · 2 pages · Product brand: Raythink · Enquiries: Phoebus Link
Manufacturer technical references
Original Raythink documents are provided for technical verification. For pricing, configuration and order support, contact Phoebus Link.
Turing C256 product brochurePDF · Manufacturer documentDiscuss your project
