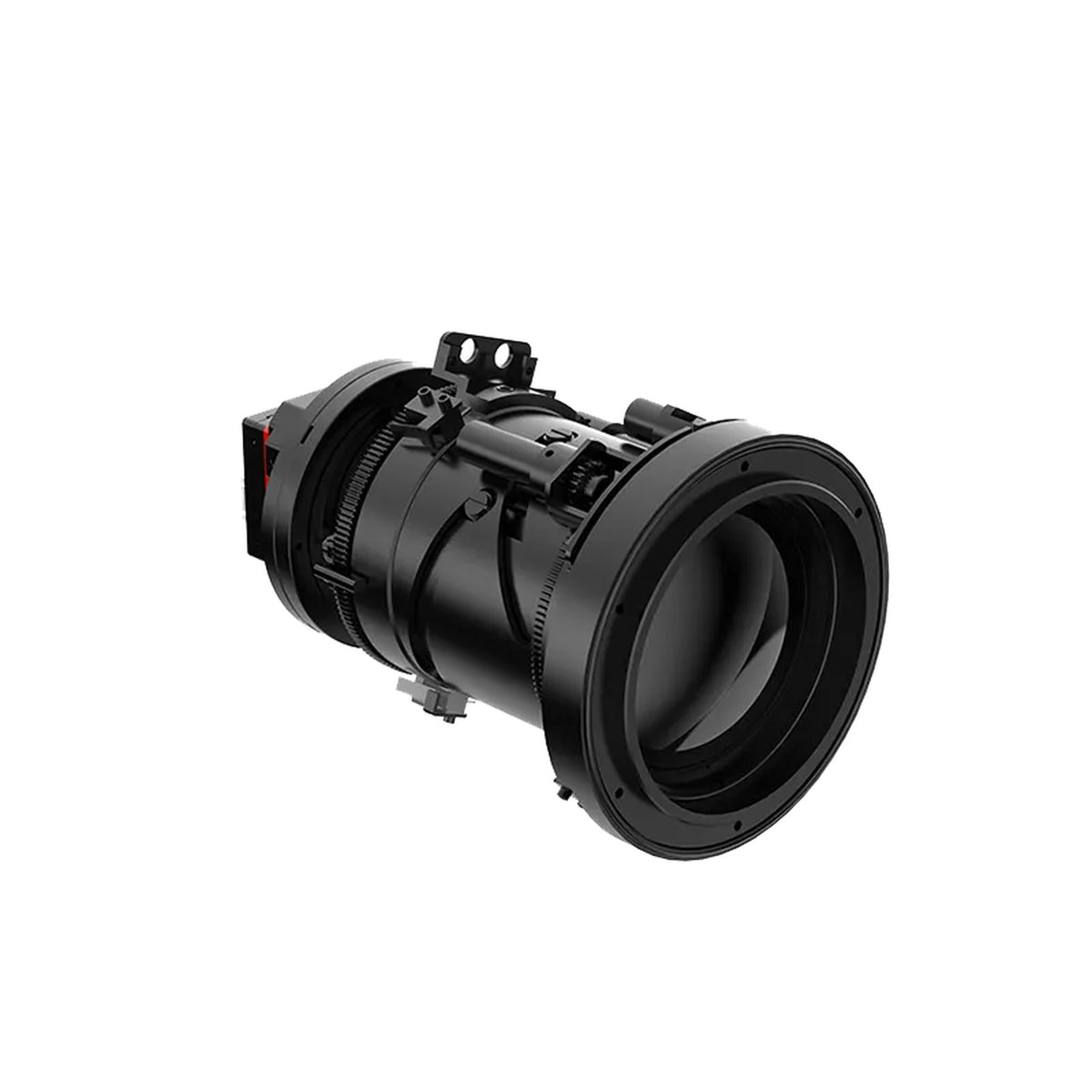

Flexible optics for thermal integration
Manual and motorized lens options support different integration and observation requirements.
Raythink · Uncooled thermal module

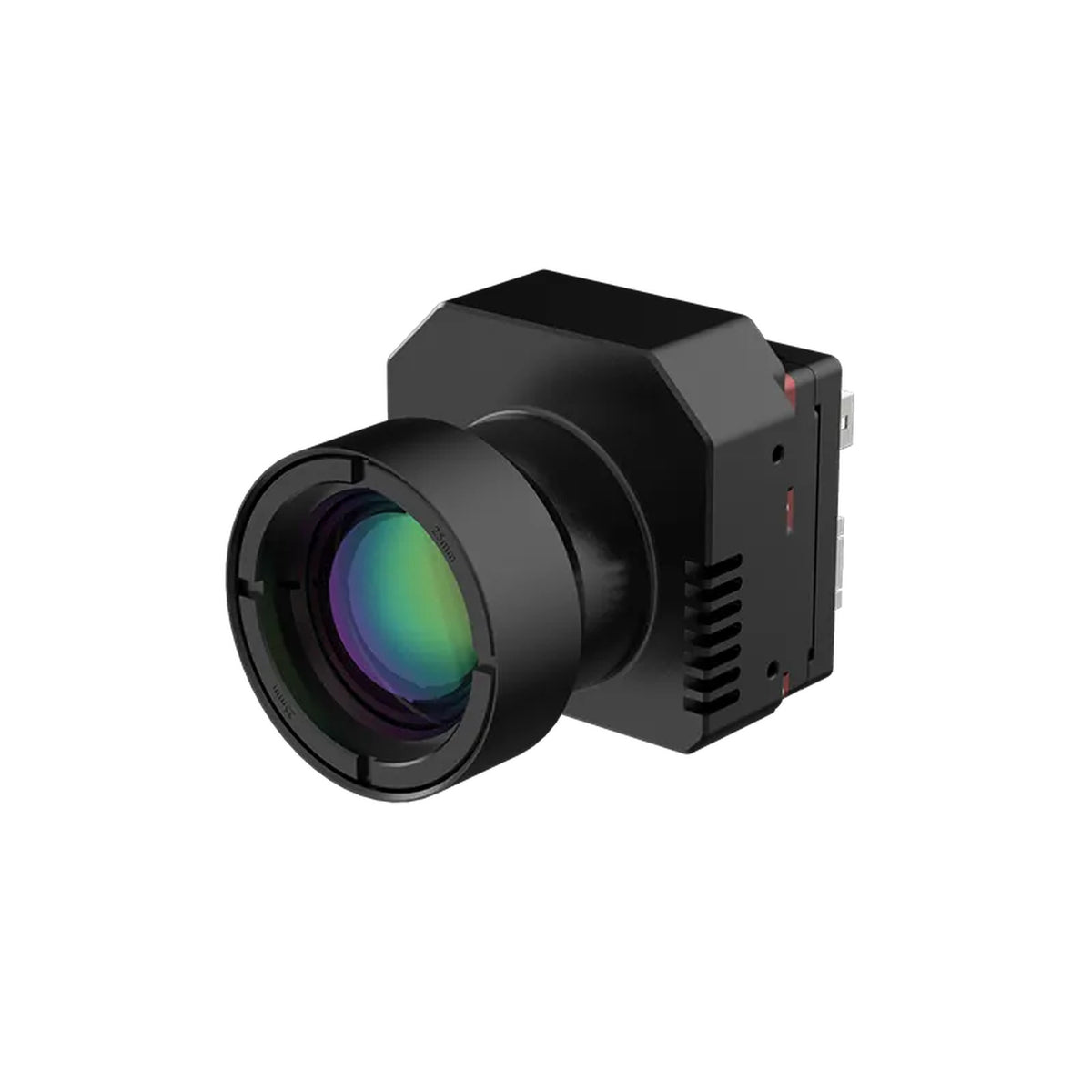

Turing F640
Uncooled Infrared Module (Temperature Measurement)

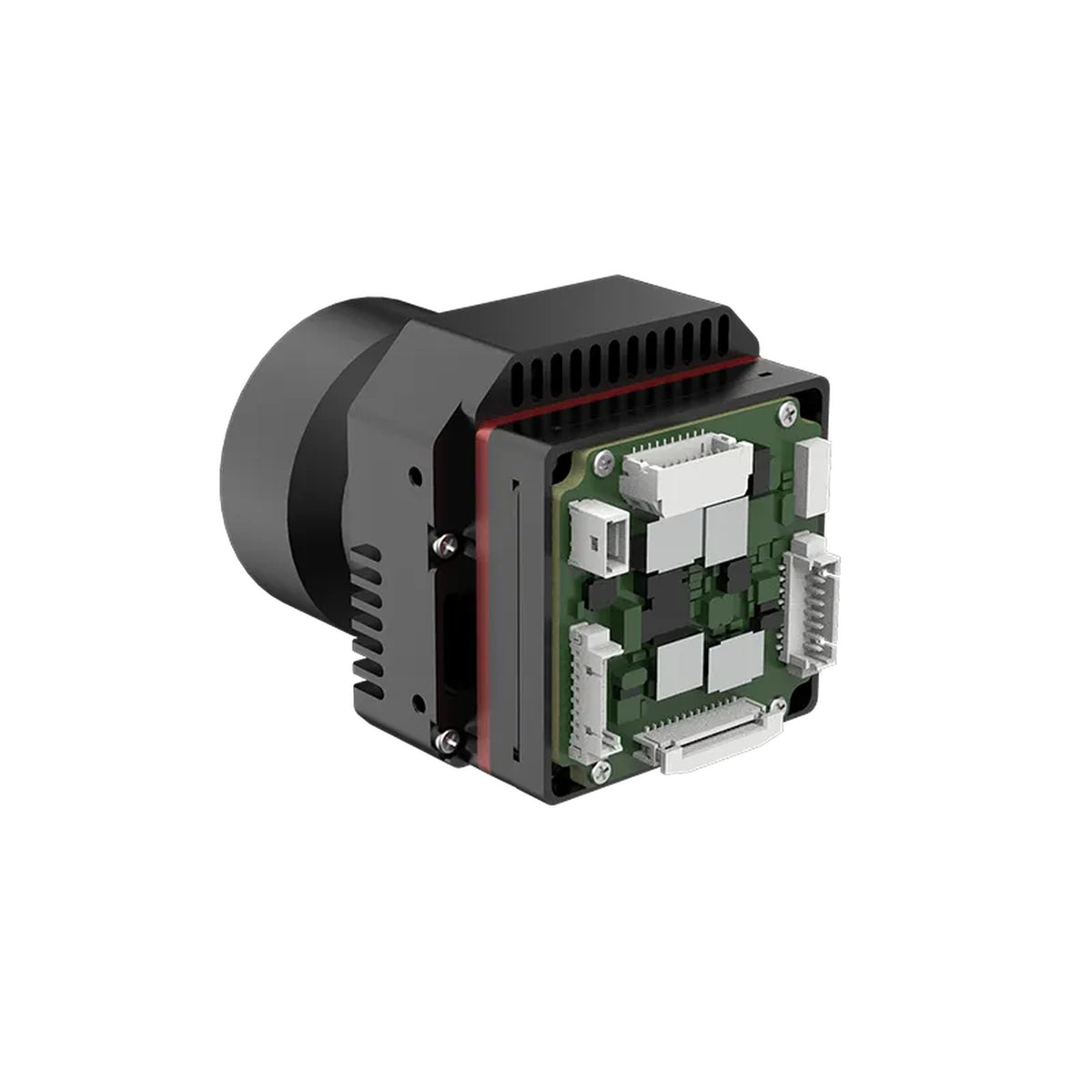

Turing F640 is an uncooled thermal module for integration into a larger imaging system. Select the detector, optics and output configuration for the host device.
Confirm the configuration, availability and supply terms in your quotation.
- Resolution
- 640×512
- Spectral Band
- 8~14μm
- NETD
- ≤40mK at 25℃,F#1.0
- Focus Mode
- Manual/Automatic
Application & capabilities
Flexible optics for thermal integration
Imaging or measurement configuration
Where a radiometric version is offered, it must be selected explicitly. An imaging module alone does not establish calibrated temperature output.
Technical specifications
| Detector Type | Uncooled VOx infrared detector |
|---|---|
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Spectral Band | 8~14μm |
| NETD | ≤40mK at 25℃,F#1.0 |
| Focus Mode | Manual/Automatic |
| Operating Temperature | -40℃～+70℃ |
| Measurement Range | -20℃~﹢150℃, 0℃~﹢650℃ |
| Measurement Accuracy | ±2°C or 2% (The greater shall prevail)@ambient temperature -20°C ~ +60°C |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
Documents
Prepared by Phoebus Link
Your Turing F640 selection brief.
Share the model overview, key specifications and procurement questions with your team.
PDF · 2 pages · Product brand: Raythink · Enquiries: Phoebus Link
