Compact thermal integration
A compact module format supports devices with limited installation space and weight budgets.
Raythink · Uncooled thermal module

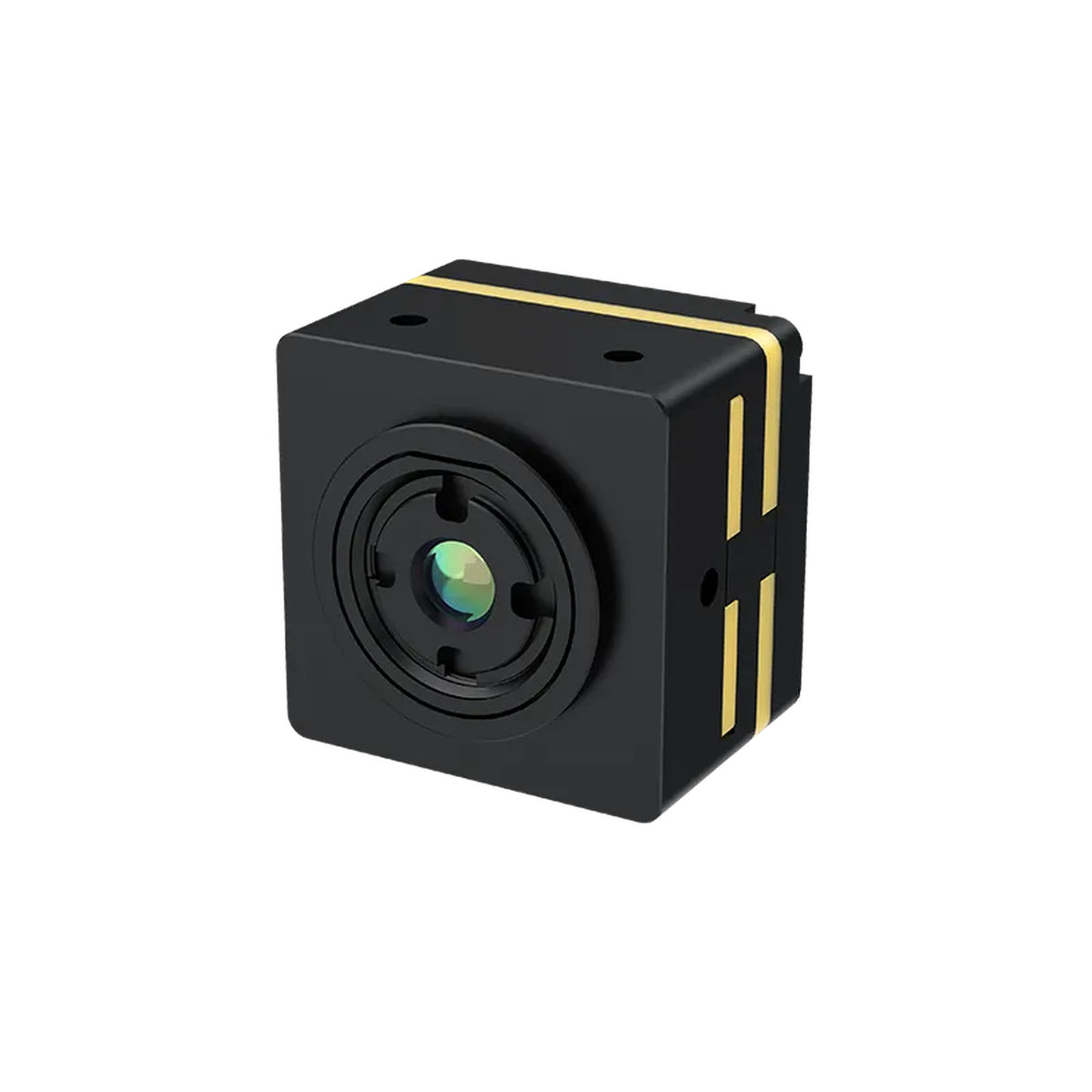

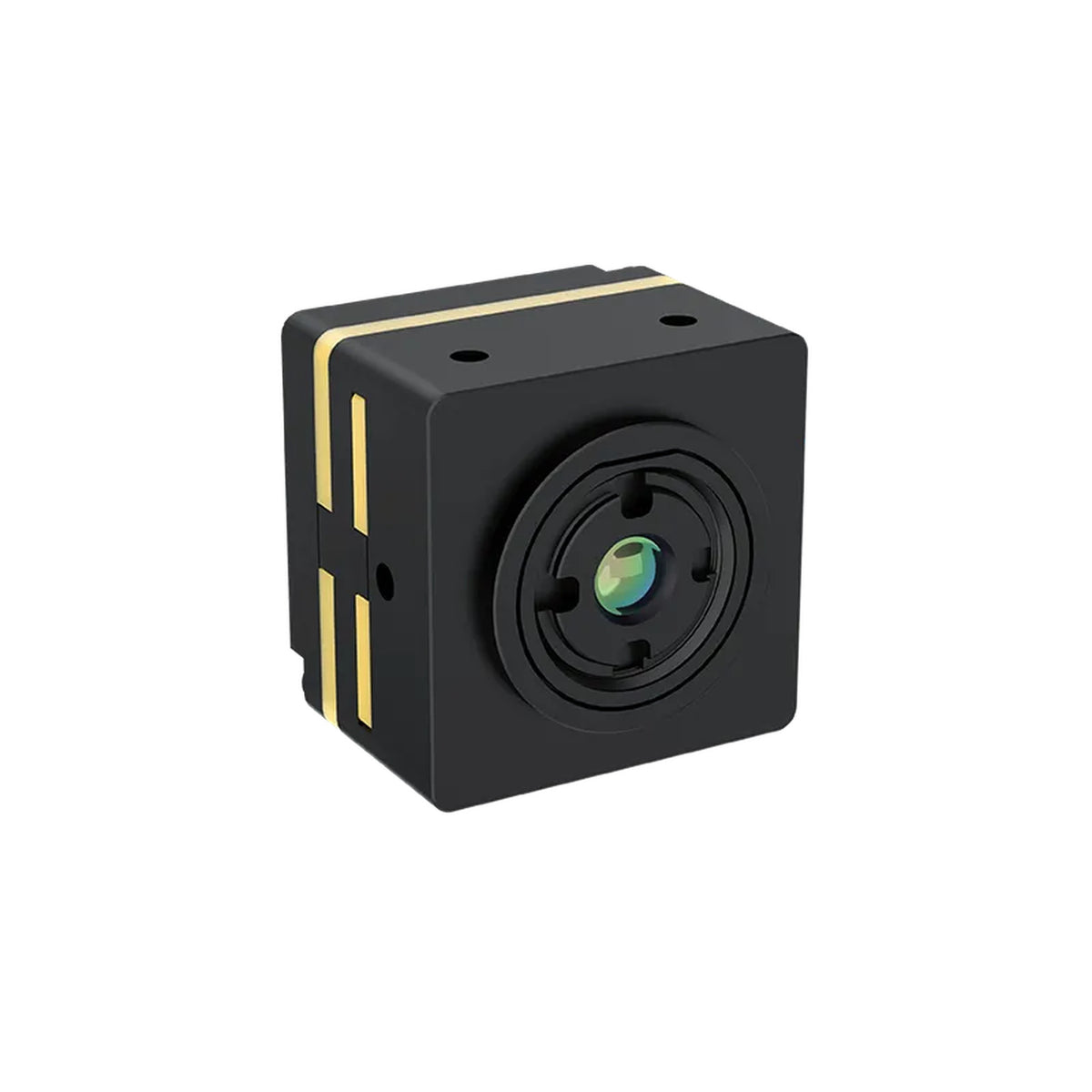

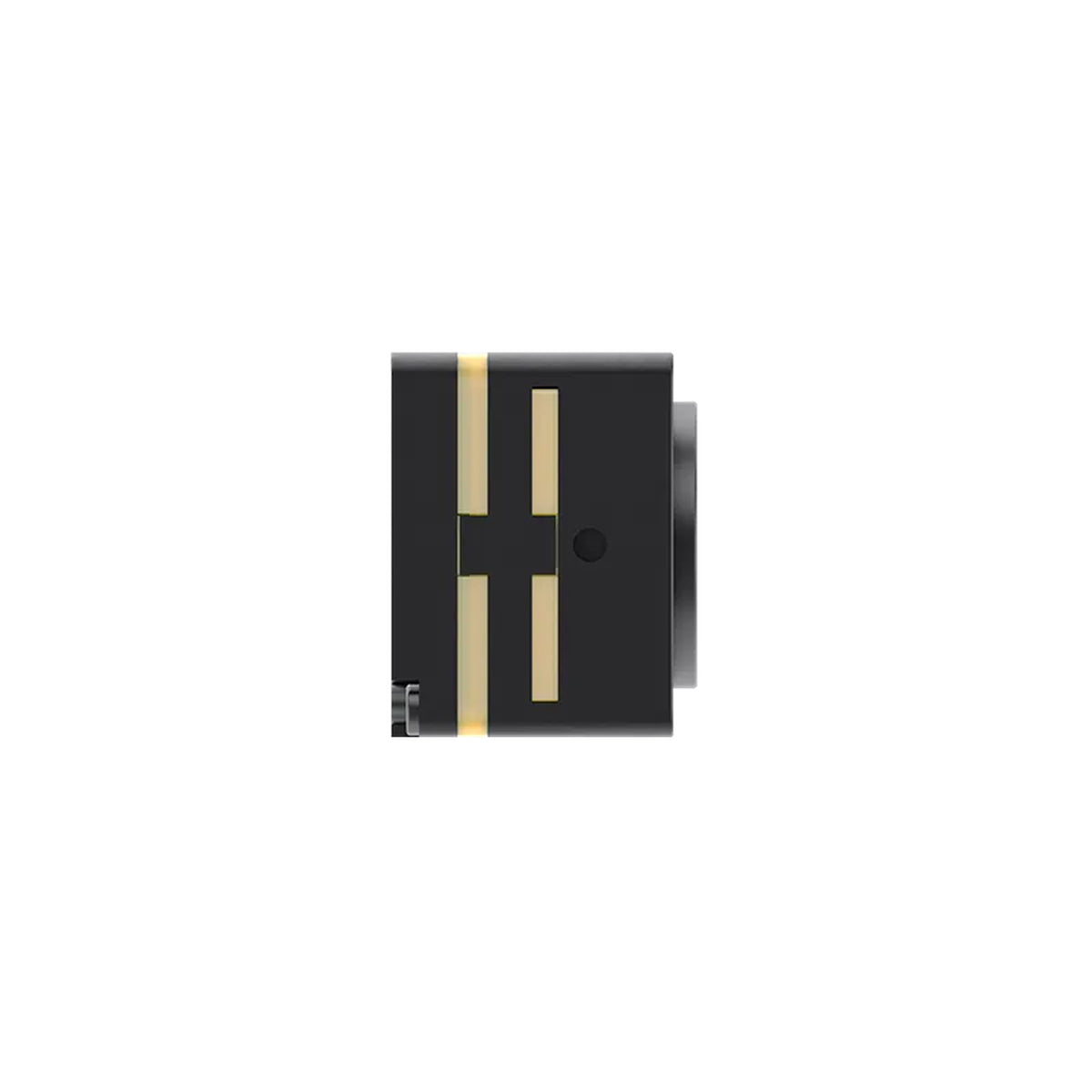

Turing L256
Uncooled Infrared Module (Imaging)
Turing L256 is an uncooled thermal module for integration into a larger imaging system. Select the detector, optics and output configuration for the host device.
Confirm the configuration, availability and supply terms in your quotation.
- Resolution
- 256×192
- Spectral Band
- 8~14μm
- NETD
- ≤50mK@25°C
- Pixel Pitch
- 12μm
Application & capabilities
Compact thermal integration
Imaging or measurement configuration
Where a radiometric version is offered, it must be selected explicitly. An imaging module alone does not establish calibrated temperature output.
Technical specifications
| Detector Type | Uncooled VOx infrared detector |
|---|---|
| Resolution | 256×192 |
| Pixel Pitch | 12μm |
| Spectral Band | 8~14μm |
| NETD | ≤50mK@25°C |
| Operating Temperature | -20℃～60℃ |
Manufacturer reference specifications. The agreed quotation and matching documents define the supplied configuration.
Documents
Prepared by Phoebus Link
Your Turing L256 selection brief.
Share the model overview, key specifications and procurement questions with your team.
PDF · 2 pages · Product brand: Raythink · Enquiries: Phoebus Link
Manufacturer technical references
Original Raythink documents are provided for technical verification. For pricing, configuration and order support, contact Phoebus Link.
