Manufacturer product imagery. Supplied optics, interfaces and accessories depend on the selected configuration.
Wireless thermography

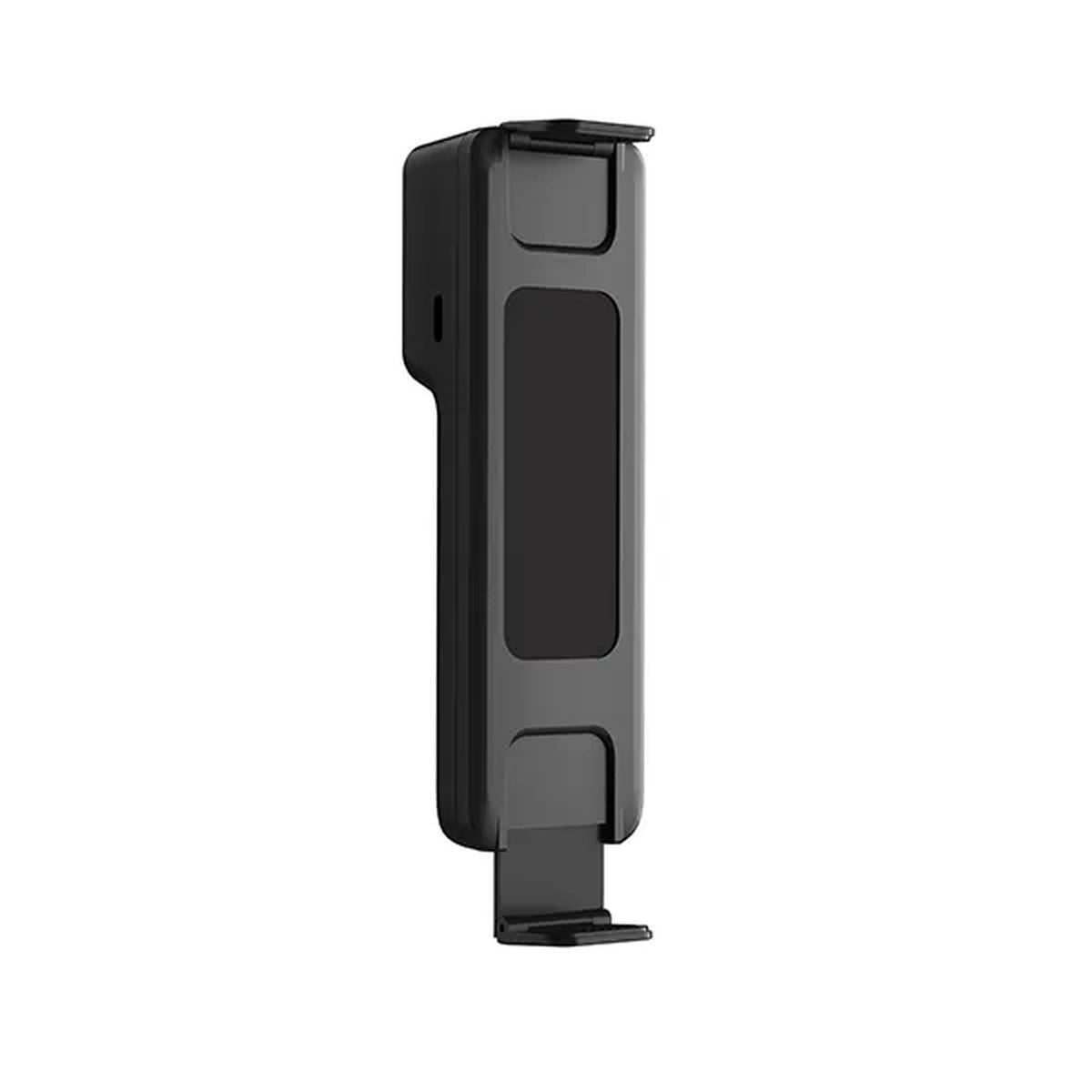

IX2 AIR SE Wireless Thermal Camera for Smart Devices
IX2 AIR SE pairs a native 256 × 192 thermal detector with a wireless mobile viewing workflow for flexible equipment inspection.
- Infrared Resolution
- 256×192
- Frame Rate
- 25 Hz
- Measurement Range
- -20°C ~ +150°C, 100°C ~ +400°C
- Spectral Band
- 7.5-14μm
Raythink equipment · Selection and procurement through Phoebus Link.
For distributors and business buyers. Configuration, pricing and delivery are confirmed in a written quotation.
WHAT THIS MODEL DOES
Thermal inspection through a mobile device
Separate camera and screen
Position the camera at the inspection point while viewing the thermal image on a supported mobile device.
Flexible placement
Clip and threaded mounting options support different inspection positions.
SEE THE EQUIPMENT
Product demonstrations
Manufacturer footage. Demonstrated options and accessories must be confirmed for the selected configuration. Original audio and embedded captions are retained.
TECHNICAL REFERENCE
IX2 AIR SE specifications
Manufacturer reference specifications. Options and supplied configuration are identified in your quotation.
| Detector Type | 12μm uncooled infrared detector |
|---|---|
| Infrared Resolution | 256×192 |
| Spectral Band | 7.5-14μm |
| NETD | ＜40mK (25°C,F1.0) |
| Frame Rate | 25 Hz |
| Lens Focal Length | 3.2mm |
| FOV | 56°×42° |
| Focusing Mode | Fixed focus |
| IFOV | 3.75mrad |
| Minimum Imaging Distance | 0.3m |
| Measurement Range | -20°C ~ +150°C, 100°C ~ +400°C |
|---|---|
| Measurement Accuracy | ±2ºC or ±2% of readings, whichever is greater |
| Temperature Width Stretch | Auto |
| Image Mode | Infrared |
|---|---|
| Palettes | 7 options |
| Communication Protocol | Wi-Fi, USB, Bluetooth |
| Operating Temperature | -10°C~+50°C |
|---|---|
| Ingress Protection Rating | IP54 |
| Weight and Dimensions | 130g |
| Battery | 1050mAh |
| Battery Life | About 2h |
| Operating Humidity | 10%~90% (non-condensing) |
| Storage Temperature | -20°C~+60°C |
TECHNICAL DOCUMENTS
Downloads & selection resources
PLAN THE CONFIGURATION
Specify IX2 AIR SE for your project
Confirm mobile-device compatibility, mounting accessories and the calibrated temperature range. The AIR SE source descriptions disagree on the upper measurement limit, so it must be confirmed in the quotation.
Include in your inquiry
Inspection task, target size, working distance, temperature range and required lenses or analysis software.
Company, destination country, estimated quantity and target procurement date.
Request a IX2 AIR SE quote ↗Questions about IX2 AIR SE
How should I select a handheld inspection camera?
Start with the target size, working distance and temperature range. Choose optics and analysis tools for the inspection task, and identify any high-temperature option separately.
Which documents are available for IX2 AIR SE?
Use the model-specific resources above for available brochures and the Phoebus Link selection brief. Ask for a current datasheet covering the exact lens, interface and options you intend to order.
Who handles my quotation and order?
Phoebus Link is your contact for product selection, quotations and order coordination. The equipment brand and full model are identified in the written quotation.
How are delivery, warranty and returns confirmed?
For B2B purchases, delivery timing, warranty duration, return or exchange conditions and related costs are confirmed in writing for each order. Obtain after-sales approval before returning equipment.
